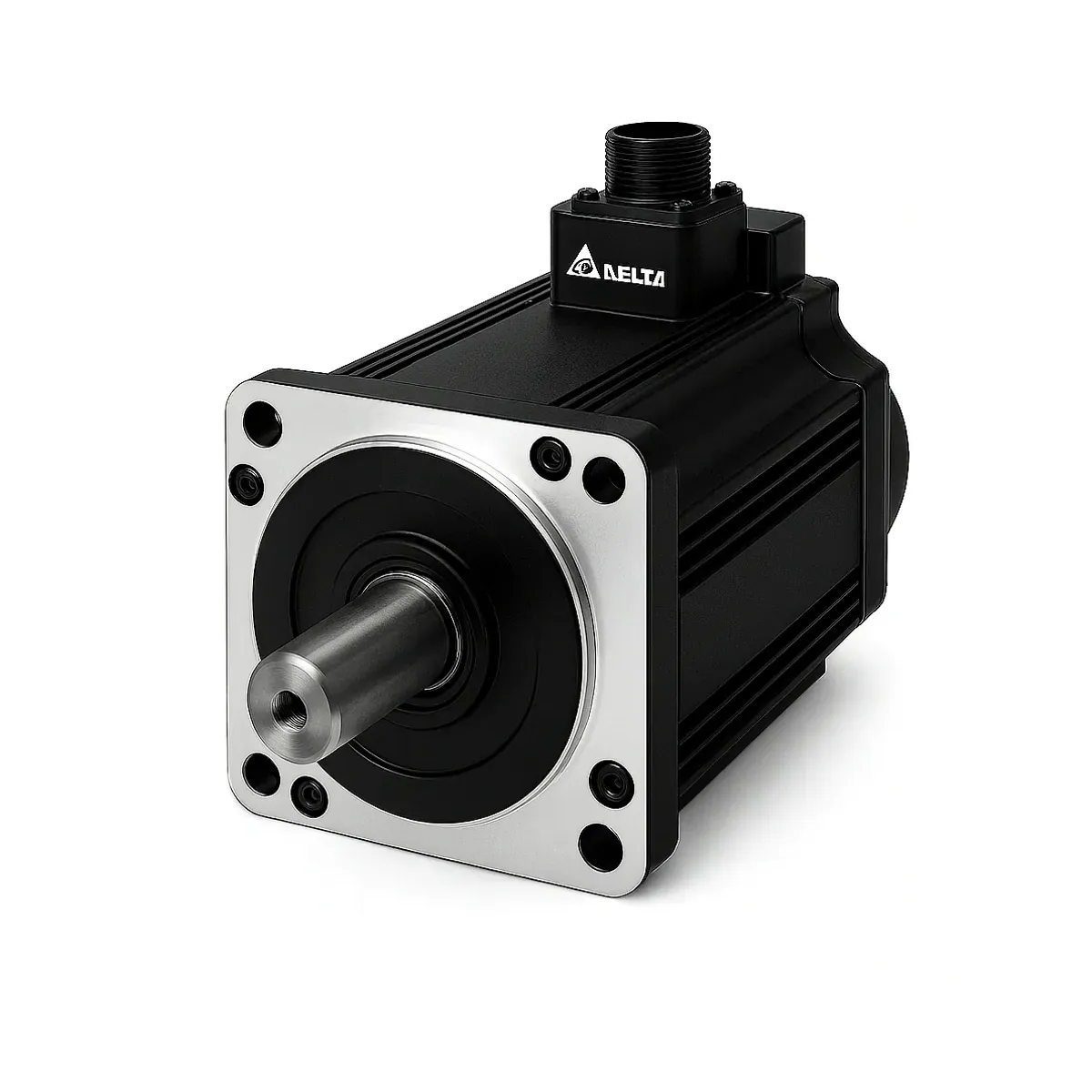

Delta ASD-A2 Series ECMA-C10807RS 750W 20 Bit Incremental Encoder 3000RPM without Brake 2.39 Nm, 80mm flange, 19mm shaft Servo Motor
- Brand: Delta Electronics
- SKU: ECMA-C10807RS
- MPN: ECMA-C10807RS
- Price: 12387.68 TRY + VAT · incl. VAT 14865.22 TRY
- Availability: In stock
- Servo Motors
- Delta Electronics Servo Motors
- Selection guide: Servo Motors Selection Guide
Delta ASD-A2 Series ECMA-C10807RS 750W 20 Bit Incremental Encoder 3000RPM without Brake 2.39 Nm, 80mm flange, 19mm shaft Servo Motor. Servo Motors are used in packaging, CNC, robot and precision positioning axes. Technical data: Power 750W, Servo Motor Brake Type Without Brake. Stock code: ECMA-C10807RS.
| Power | 750 W |
|---|---|
| Servo Motor Brake Type | Frensiz |
| Rated Torque | 2.39 N-m |
| Maximum Torque | 7.16 N-m |
| Rated Speed | 3000 r/min |
| Maximum Speed | 5000 r/min |
| Rated Current | 5.1 A |
| Maximum Current | 15.3 A |
| Rotor Inertia | 1.13 x10-4 kg-m2 |
| Gram | 3 kg |
| Encoder Type | 20-bit artımlı (incremental) |
| Flange Size | 80 mm |
| Shaft Diameter | 19 (+0 / -0.013) mm |
| Insulation Class | Class A (UL), Class B (CE) |
| IP Rating | IP65 (yağ keçeli model) |
| Operating Temperature | 0 ºC ~ 40 ºC |
| Storage Temperature | -10 ºC ~ 80 ºC |
| Shaft Type | Kamalı (vida delikli), yağ keçeli |
