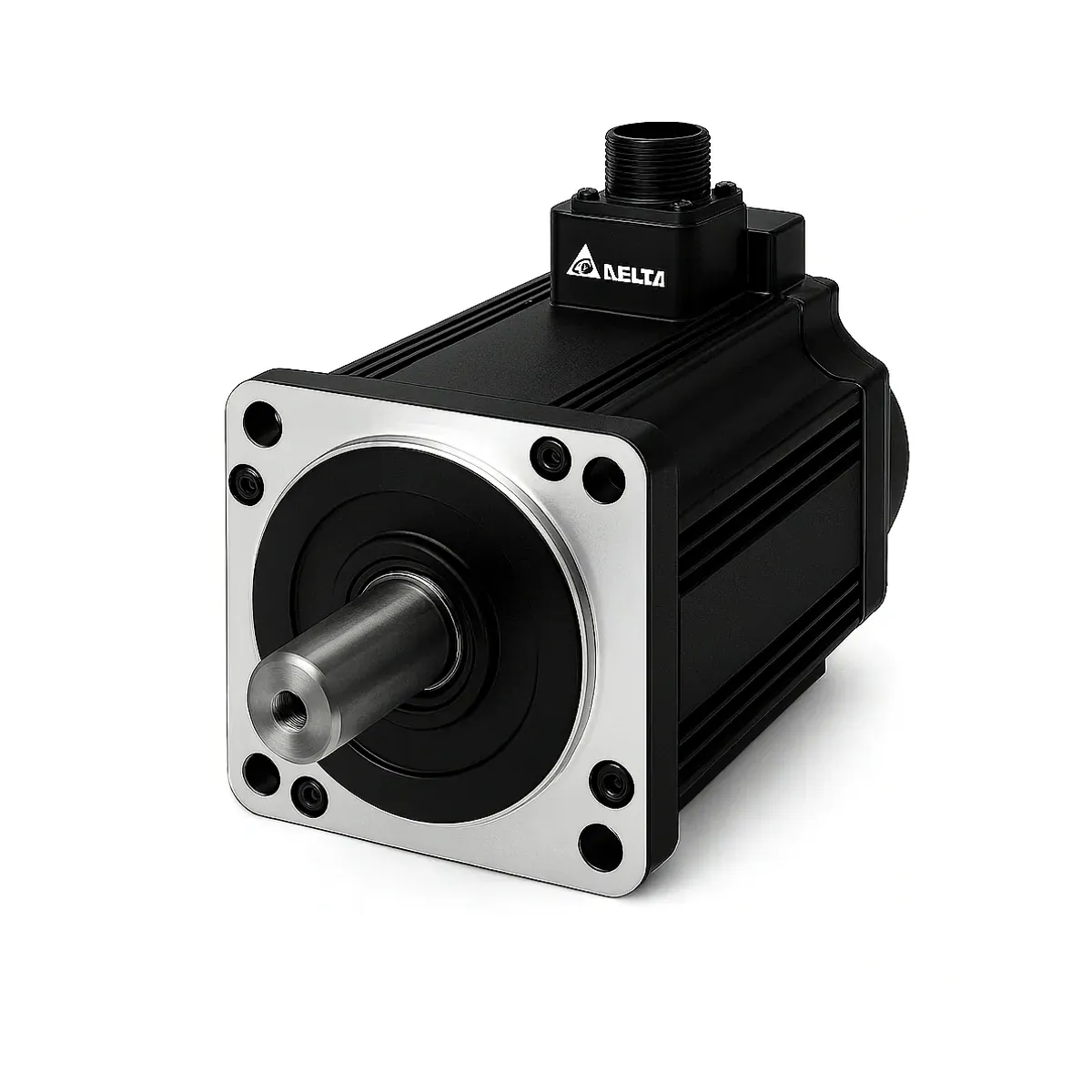

Delta ECMA-CA0604SS 400W 17 Bit Absolute Encoder 3000RPM With Brake 1.27 Nm, 60mm Flange, 14mm Shaft Servo Motor
- Brand: Delta Electronics
- SKU: ECMA-CA0604SS
- MPN: ECMA-CA0604SS
- Price: 22634.28 TRY + VAT · incl. VAT 27161.14 TRY
- Availability: In stock
- Servo Motors
- Delta Electronics Servo Motors
- Selection guide: Servo Motors Selection Guide
Delta ECMA-CA0604SS 400W 17 Bit Absolute Encoder 3000RPM With Brake 1.27 Nm, 60mm Flange, 14mm Shaft Servo Motor. Servo Motors are used in packaging, CNC, robot and precision positioning axes. Technical data: Power 400W, Servo Motor Brake Type With Brake. Stock code: ECMA-CA0604SS.
| Power | 400 W |
|---|---|
| Servo Motor Brake Type | Frenli |
| Rated Torque | 1.27 N-m |
| Maximum Torque | 3.82 N-m |
| Rated Speed | 3000 r/min |
| Maximum Speed | 5000 r/min |
| Rated Current | 2.6 A |
| Maximum Current | 7.8 A |
| Gram | 2 kg |
| Brake Holding Torque | 1.3 N-m (min) |
| Encoder Type | Mutlak (absolute) enkoder; tek tur 17-bit, çok tur 16-bit |
| Flange Size | 60 mm |
| Shaft Diameter | 14 (+0 / -0.011) mm |
| Insulation Class | Class A (UL), Class B (CE) |
| IP Rating | IP65 (yağ keçeli model) |
| Operating Temperature | 0 ºC ~ 40 ºC |
| Storage Temperature | -10 ºC ~ 80 ºC |
| Shaft Type | Kamalı (vida delikli), yağ keçeli |
