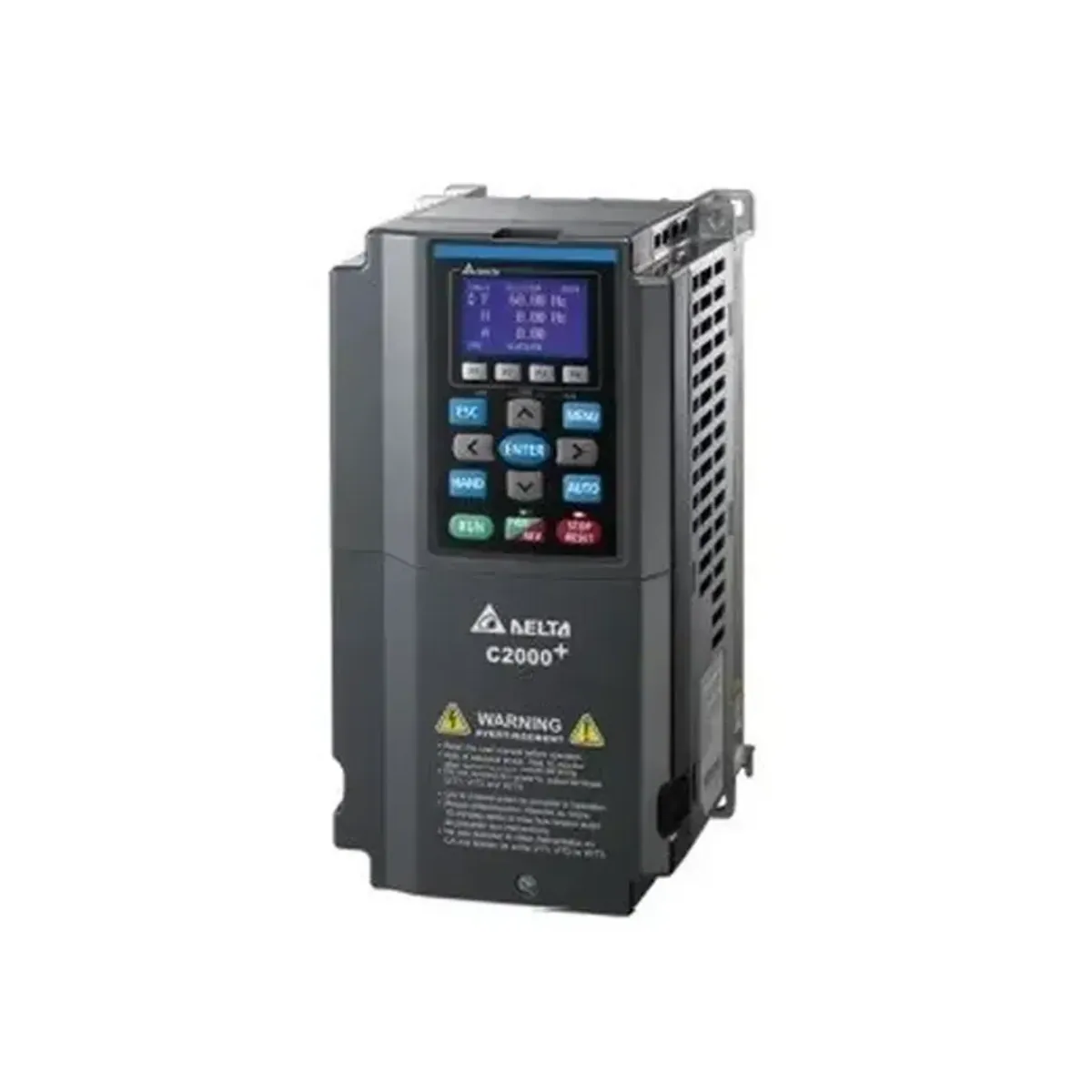

Delta VFD040C43A-21 4 kW Three-Phase Drive C2000Plus Variable Frequency Drive
- Brand: Delta Electronics
- SKU: VFD040C43A-21
- MPN: VFD040C43A-21
- Price: 20646.13 TRY + VAT · incl. VAT 24775.36 TRY
- Availability: In stock
- Variable Frequency Drives (Frequency Inverters)
- Delta Electronics Variable Frequency Drives (Frequency Inverters)
- Selection guide: What Is a Frequency Inverter? Drive Selection Guide
Delta VFD040C43A-21 4 kW Three-Phase Drive C2000Plus Variable Frequency Drive. Variable Frequency Drives (Frequency Inverters) are used for energy and process control in the main motions of pumps, fans, conveyors and machines. Technical data: Size Type 130x250x170mm, Output Current 10.5A / 9A, Power 4 kW. Stock code: VFD040C43A-21.
| Size Type | 130x250x170mm |
|---|---|
| Output Current | 10,5A / 9A |
| Power | 4 kW |
| Housing Size | Frame A |
| Motor Power | 4.0 kW (HD) / 3.7 kW (SHD) |
| Input current | 15.5 A (HD) / 14 A (SHD) |
| Power Supply Capacity | 12.9 kVA (HD) / 11.6 kVA (SHD) |
| Input Voltage | 3Ø, 380 ~ 480 VAC (-15% ~ +10%) |
| Input frequency | 50 / 60 Hz (±5%, 47 ~ 63 Hz) |
| Maximum Output Frequency | 0 ~ 599 Hz |
| Overload Capacity | HD: anma çıkış akımının %150'si 5 dakikada 1 dakika, %180'i 30 saniyede 3 saniye; SHD: %150'si 5 dakikada 1 dakika, %200'ü 30 saniyede 3 saniye |
| Efficiency | 97.8% |
| Built-in Braking Chopper | Dahili |
| DC Reactor | Opsiyonel |
| EMC Filter | Opsiyonel |
| IP Rating | IP20 |
| Operating Temperature | -10 ºC ~ 40 ºC (üst kapak takılı, IP20 / UL Type1 / NEMA1); -10 ºC ~ 50 ºC (üst kapak sökülü, IP20 / UL Open Type) |
| Storage Temperature | -25 ~ 70 °C |
| Gram | 2.6 ± 0.3 kg |
| Cooling Type | Cebri hava soğutma |
