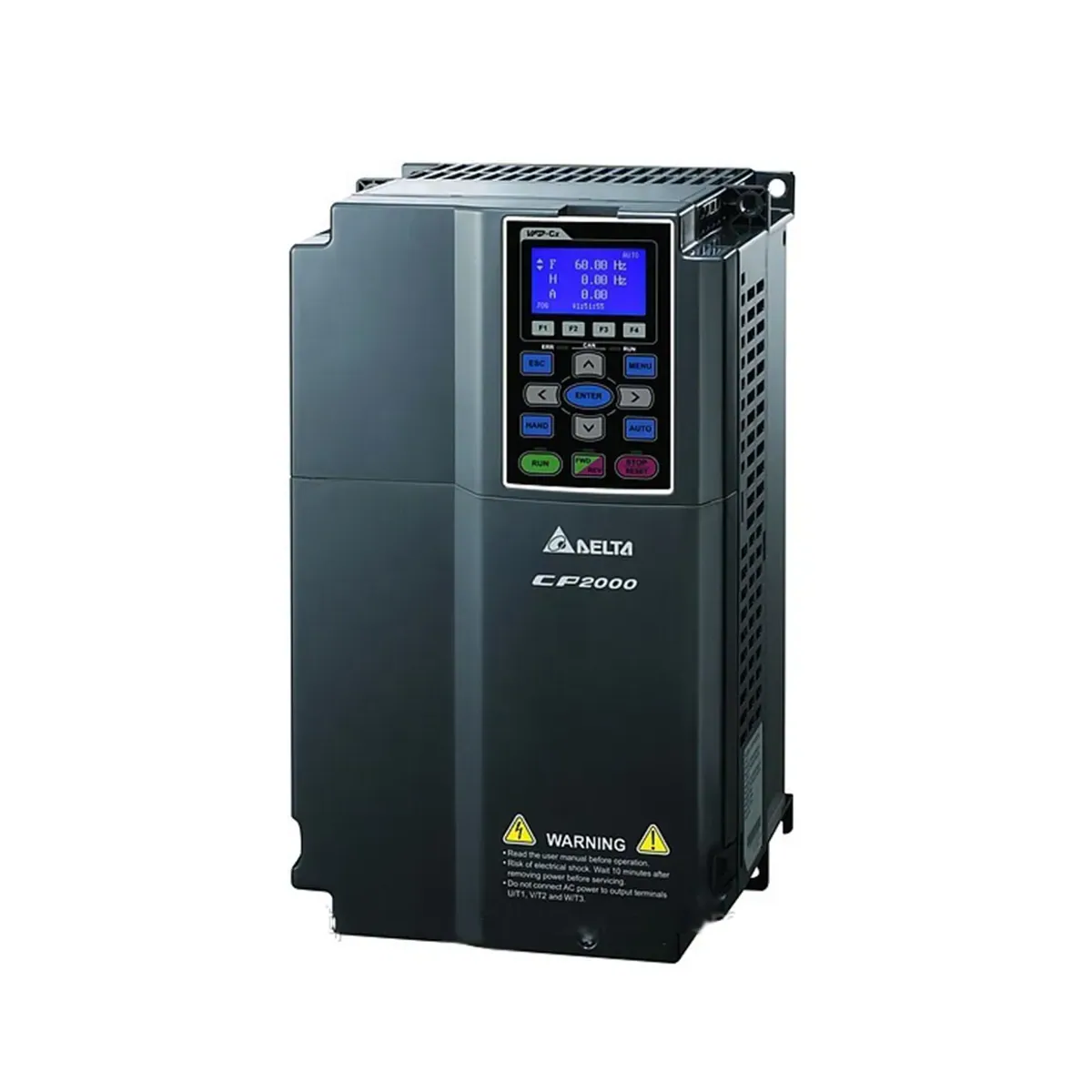

Delta VFD110CP4EB-21 11 kW Three-Phase Drive CP2000 Variable Frequency Drive
- Brand: Delta Electronics
- SKU: VFD110CP4EB-21
- MPN: VFD110CP4EB-21
- Price: 22328.41 TRY + VAT · incl. VAT 26794.09 TRY
- Availability: In stock
- Variable Frequency Drives (Frequency Inverters)
- Delta Electronics Variable Frequency Drives (Frequency Inverters)
- Selection guide: What Is a Frequency Inverter? Drive Selection Guide
Delta VFD110CP4EB-21 11 kW Three-Phase Drive CP2000 Variable Frequency Drive. Variable Frequency Drives (Frequency Inverters) are used for energy and process control in the main motions of pumps, fans, conveyors and machines. Technical data: Size Type 190x320x190mm, Output Current 24A / 18A, Power 11 kW. Stock code: VFD110CP4EB-21.
| Size Type | 190x320x190mm |
|---|---|
| Output Current | 24A / 18A |
| Power | 11 kW |
| Housing Size | Frame B |
| Motor Power | 11 kW (LD) / 7.5 kW (ND) |
| Rated Output Capacity | 19 kVA (LD) / 14.3 kVA (ND) |
| Input current | 26 A (LD) / 20 A (ND) |
| Input Voltage | 3 faz, 380 ~ 480 VAC (-15% ~ +10%), 50/60 Hz |
| Operating Voltage Range | 323 ~ 528 VAC |
| Input frequency | 50/60 Hz (tolerans 47 ~ 63 Hz) |
| Maximum Output Frequency | 599 Hz |
| Carrier Frequency | 2 ~ 15 kHz (varsayılan 8 kHz) |
| Overload Capacity | LD: anma akımının %120'si 5 dakikada 1 dakika; ND: anma akımının %120'si 5 dakikada 1 dakika, %160'ı 25 saniyede 3 saniye |
| Efficiency | 97.8% |
| Power Factor | > 0.98 |
| Cooling Type | Fan ile soğutma |
| Built-in Braking Chopper | Dahili |
| DC Reactor | Opsiyonel |
| EMC Filter | Dahili |
| IP Rating | IP20 |
| Operating Temperature | -10 °C ~ 40 °C (üst kapak takılı); -10 °C ~ 50 °C (üst kapak sökülü; LD taşıyıcı frekansı 2 kHz iken) |
| Storage Temperature | -25 ~ 70 °C |
| Gram | 5.4 ± 1 kg |
