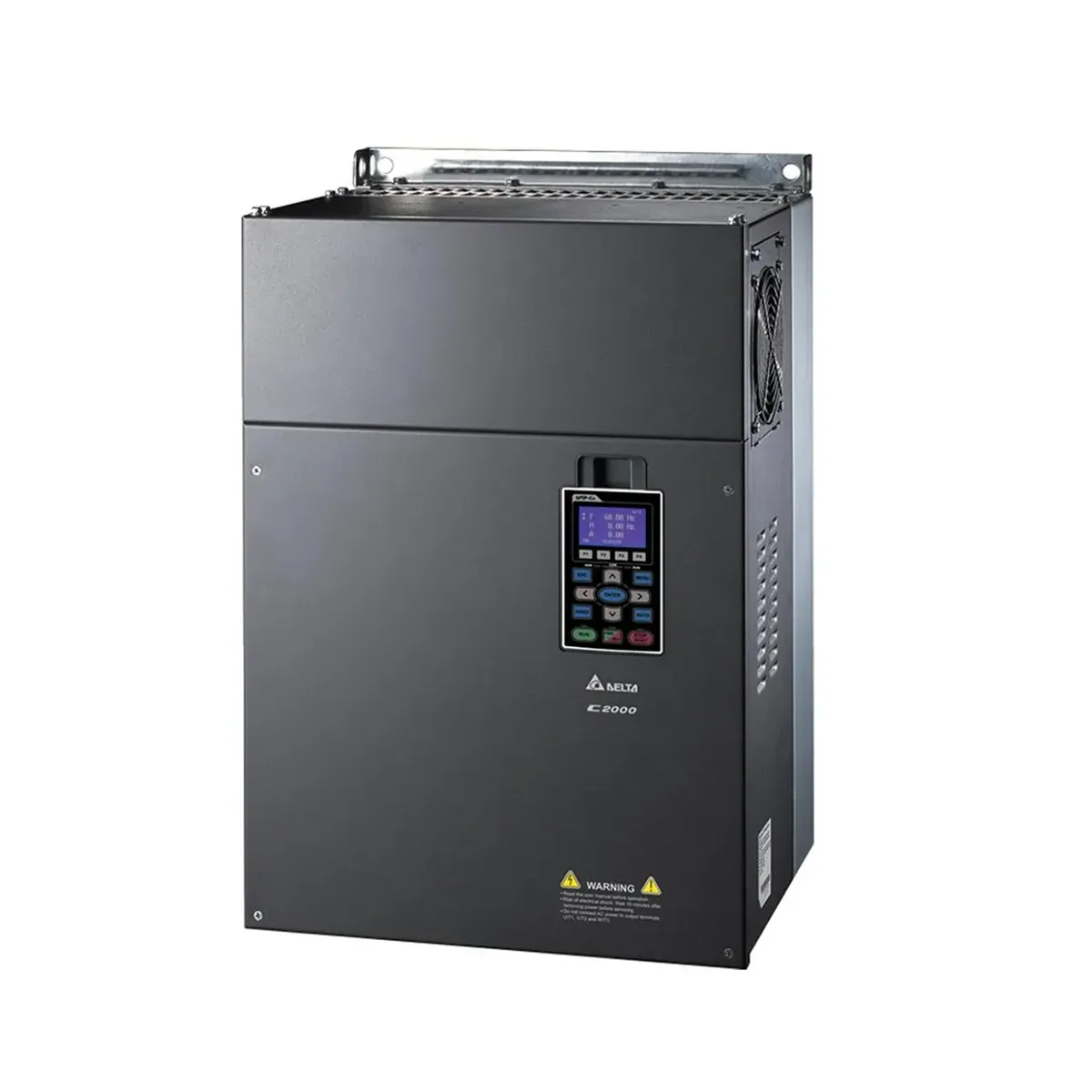

Delta VFD1600CP43A-21 160 kW Three-Phase Drive CP2000 Variable Frequency Drive
- Brand: Delta Electronics
- SKU: VFD1600CP43A-21
- MPN: VFD1600CP43A-21
- Price: 166851.34 TRY + VAT · incl. VAT 200221.61 TRY
- Availability: In stock
- Variable Frequency Drives (Frequency Inverters)
- Delta Electronics Variable Frequency Drives (Frequency Inverters)
- Selection guide: What Is a Frequency Inverter? Drive Selection Guide
Delta VFD1600CP43A-21 160 kW Three-Phase Drive CP2000 Variable Frequency Drive. Variable Frequency Drives (Frequency Inverters) are used for energy and process control in the main motions of pumps, fans, conveyors and machines. Technical data: Size Type 420x940x300mm, Output Current 310A / 260A, Power 160 kW. Stock code: VFD1600CP43A-21.
| Size Type | 420x940x300mm |
|---|---|
| Output Current | 310A / 260A |
| Power | 160 kW |
| Housing Size | Frame F |
| Motor Power | 160 kW (LD) / 132 kW (ND) |
| Rated Output Capacity | 247 kVA (LD) / 207 kVA (ND) |
| Input current | 310 A (LD) / 240 A (ND) |
| Input Voltage | 3 faz, 380 ~ 480 VAC (-15% ~ +10%), 50/60 Hz |
| Operating Voltage Range | 323 ~ 528 VAC |
| Input frequency | 50/60 Hz (tolerans 47 ~ 63 Hz) |
| Maximum Output Frequency | 400 Hz |
| Carrier Frequency | 2 ~ 9 kHz (varsayılan 4 kHz) |
| Overload Capacity | LD: anma akımının %120'si 5 dakikada 1 dakika; ND: anma akımının %120'si 5 dakikada 1 dakika, %160'ı 25 saniyede 3 saniye |
| Efficiency | 98.2% |
| Power Factor | > 0.98 |
| Cooling Type | Fan ile soğutma |
| Built-in Braking Chopper | Opsiyonel |
| DC Reactor | Dahili, %3 |
| EMC Filter | Opsiyonel |
| IP Rating | IP20 (UL Type1 / NEMA1) |
| Operating Temperature | -10 °C ~ 40 °C |
| Storage Temperature | -25 ~ 70 °C |
| Gram | 86.5 ± 1.5 kg |
