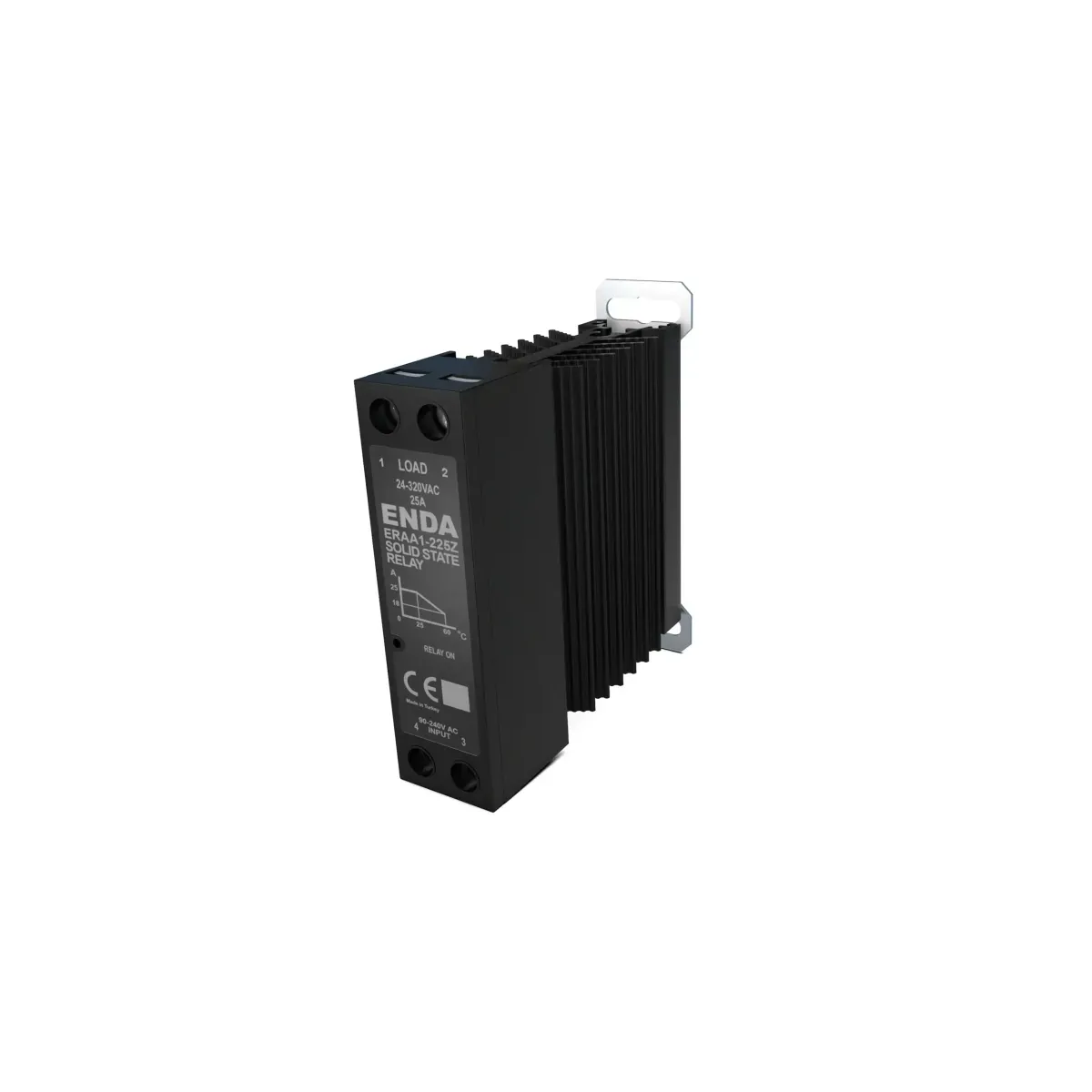

Enda ERAA1-425Z Zero-Cross DIN Rail-Mounted Single-Phase Solid State Relay
- Brand: Enda
- SKU: ERAA1-425Z
- MPN: ERAA1-425Z
- Price: 806.88 TRY + VAT · incl. VAT 968.26 TRY
- Availability: Made to order
- Solid State Relays (SSR)
- Enda Solid State Relays (SSR)
- Selection guide: Solid State Relays (SSR) Selection Guide: Technical Criteria and Engineering Practice
Enda ERAA1-425Z Zero-Cross DIN Rail-Mounted Single-Phase Solid State Relay. Solid State Relays (SSR) are used for PLC output, control and isolation. Technical values: Current 25A, Supply Type / Input Voltage 90 - 240VAC, Phase Type Single-Phase. Stock code: ERAA1-425Z.
| Current | 25 A |
|---|---|
| Supply Type / Input Voltage | 90–240 V AC |
| Phase Type | 1-Phase |
| Switching method | Sıfır geçiş |
| Number of Poles | 1P |
| Frequency | 50/60 Hz |
| Turn-on Voltage | > 75Vac |
| Turn-off Voltage | < 6Vac |
| Input current | < 8mAac |
| Turn-on Time | Maksimum 1 Periyot |
| Turn-off Time | Maksimum 2 Periyot |
| Housing Dimensions (W×H×D) | G24xY84xD97mm |
| Mounting Style | EN 60715 standardı TH35 tipi veya G32 tipi raya monte edilir |
| Connecting Capacity | M4 vidalı bağlantı (2x4mm² veya izoleli kablo ucu ile 1x6mm²'lik kablo) |
| Tightening Torque | Max. 1,2Nm |
| Standards | EN 60947-4-3 |
| Operating Temperature | -25... +60 °C |
| Storage Temperature | -30... +100 °C |
| Relative Humidity | +40 °C'da %50, sıcaklık azaldığında artarak +20 °C'da %90 olabilir (yoğuşma olmamalı) |
| Pollution Degree | 2 |
| Overvoltage category | II |
| Operating Altitude | En çok 1000m |
| IP Rating | IP20 |
| Housing Material | Kendi kendine sönen plastik (EN 60695-11-10 standardına göre V-0) |
| Insulation voltage | 2500 Vrms 1 dak. (giriş ve çıkış terminalleri arasında) |
