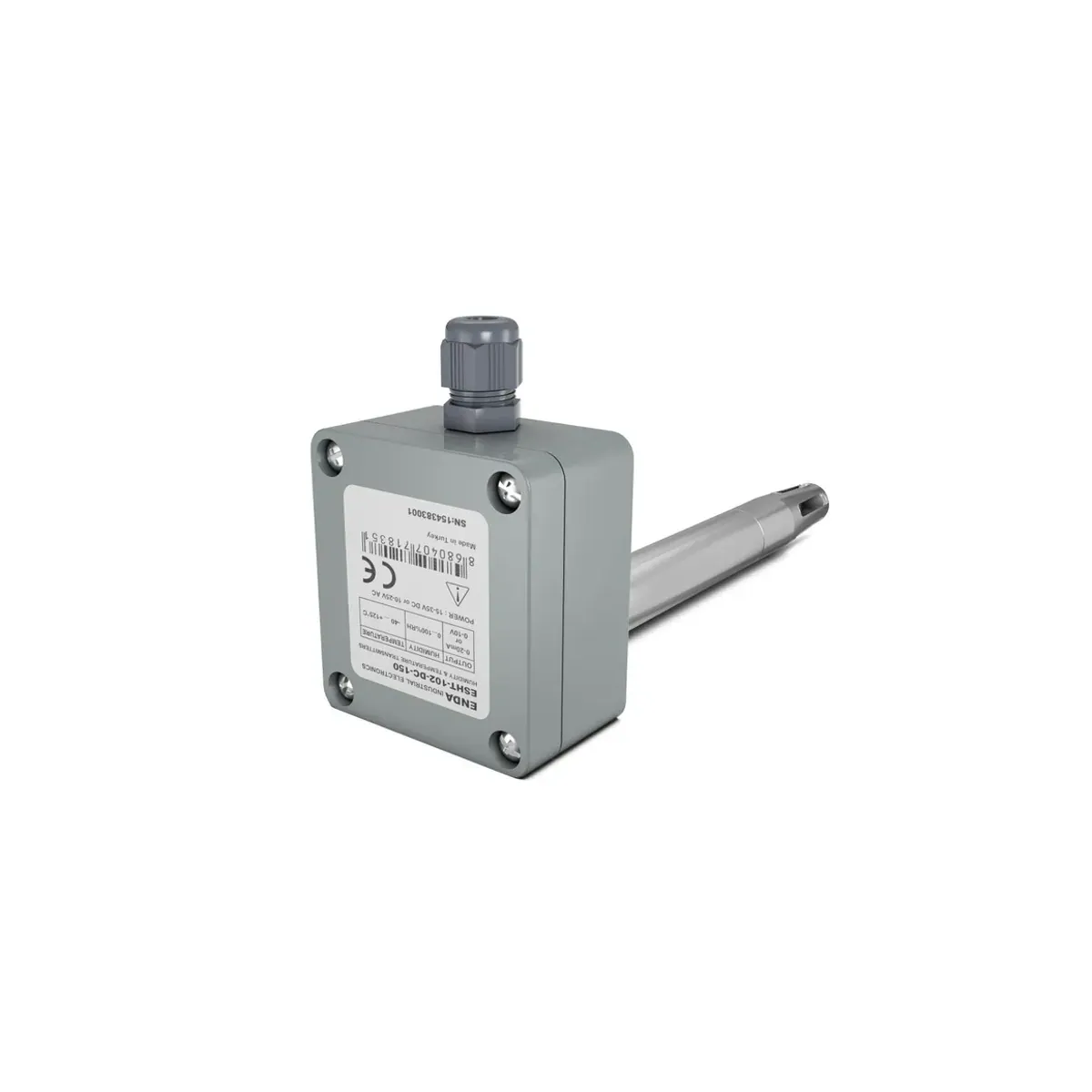

Enda ESHT102-DC-350 Humidity and Temperature Transmitter, Duct Mount Type
- Brand: Enda
- SKU: ESHT102-DC-350
- MPN: ESHT102-DC-350
- Price: 4034.39 TRY + VAT · incl. VAT 4841.27 TRY
- Availability: Made to order
- Humidity and Temperature Transmitters
- Selection guide: Sensors and Transmitters Selection Guide: Technical Criteria and Engineering Practice
Enda ESHT102-DC-350 Humidity and Temperature Transmitter, Duct Mount Type. Humidity and Temperature Transmitters are used in ovens, machines and installation panels for PID control, display and protection. Technical values: Supply Type 15 - 35VDC / 10 - 25VAC, Communication Type None. Stock code: ESHT102-DC-350.
| Supply Type | 15 - 35VDC / 10 - 25VAC |
|---|---|
| Communication Type | None |
| Mounting Style | Kanal Montajlı Tip |
| Immersion Length | 350 mm |
| Temperature Range | -40 ... +125°C |
| Humidity Range | 0 ... 100 % RH |
| Accuracy | ±2 % RH (20 ~ 80 % RH), ±4 % RH (0 ~ 100 % RH), ±0,5°C (20 ~ 40°C), ±1°C (0 ~ 70°C), ±2°C (-40 ~ 125°C) |
| Response Time | 7s (%63 nem değişimi için), 20s (%63 sıcaklık değişimi için); 25°C'da ve hava 1m/s hız ile eserken |
| Output Signal | 0-20mA DC veya 0-10V DC (cihaz üzerinden seçilebilir) |
| Power Consumption | En çok 7VA |
| Electromagnetic Compatibility (EMC) | TS EN 61326-1: 2013 |
| Storage Temperature | -40 ... +125°C |
| IP Rating | IP65 |
| Operating Altitude | En çok 2000m |
| Dimensions | B137xE58xY35mm |
| Housing Material | Kendi kendine sönen plastik (EN 60695-11-10 standardına göre V-0) |
