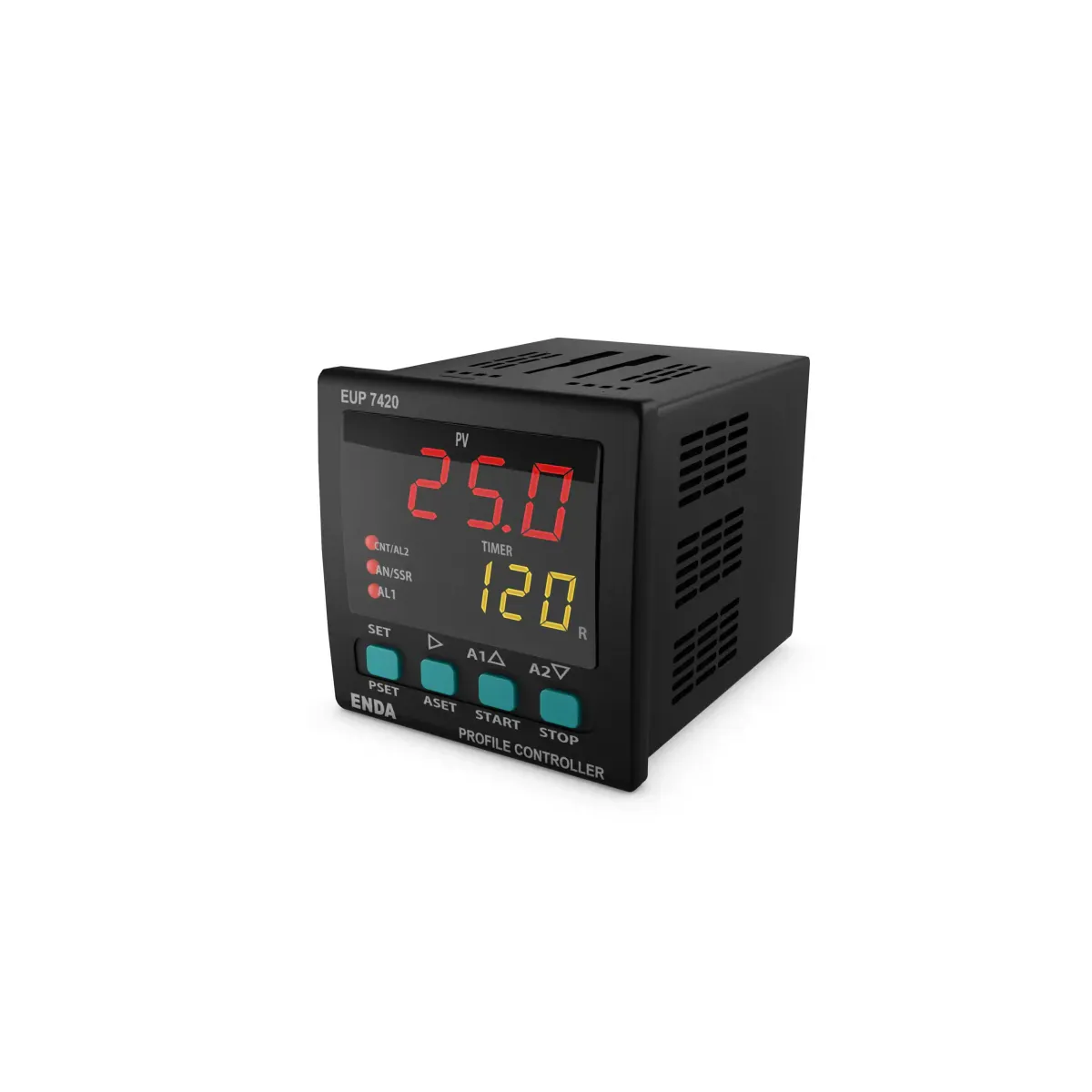

Enda EUP7420-LV Universal Profile Controller 10-30V DC/8-24V AC
- Brand: Enda
- SKU: EUP7420-LV
- MPN: EUP7420-LV
- Price: 3421.16 TRY + VAT · incl. VAT 4105.39 TRY
- Availability: In stock
- Profile Controllers
- Selection guide: Profile Controllers Selection Guide: Technical Criteria & Application Standards
Enda EUP7420-LV Universal Profile Controller 10-30V DC/8-24V AC. Profile Controllers are used for PID control, indication and protection in furnace, machine and installation panels. Technical values: Supply Type 10 - 30VDC / 8 - 24VAC, Size Type 72x72mm, Communication Type None. Stock code: EUP7420-LV.
| Supply Type | 10 - 30VDC / 8 - 24VAC |
|---|---|
| Size Type | 72x72 mm |
| Communication Type | None |
| Display | 4 hane |
| Sensor Input Type | PT100, J, K, L, T, S, R |
| Analog Input Range | 0-20mA, 4-20mA, 0-10V, 2-10V, 0-25mV, 0-50mV |
| Accuracy | PT100 için %0,2; termokupllar için %0,5 |
| Control Output | C/A2: Röle 250V AC, 8A (rezistif load için), NO+NC; ANL/SSR: 0-20mA, 4-20mA veya SSR |
| SSR Output | 24V 20mA maksimum |
| Analog Output Range | 0-20mA, 4-20mA |
| Control Mode | On-Off / P, PI, PD, PID (seçilebilir) |
| Segment count | 16 adıma kadar |
| A/D Converter | 14 bit |
| Sampling Time | 100ms (minimum) |
| Relay Life | Yüksüz 30.000.000 anahtarlama; 250V AC, 8A rezistif yükte 300.000 anahtarlama |
| Power Consumption | En çok 5VA |
| Data Retention | EEPROM (en az 10 yıl) |
| Electromagnetic Compatibility (EMC) | EN 61326-1: 2013 |
| Pollution Degree | 2 |
| Overvoltage category | II |
| Operating Temperature | 0 ... +50°C |
| Storage Temperature | -25 ... +70°C |
| Relative Humidity | 31°C'ye kadar %80, sonra lineer olarak azalıp 40°C'de %50'ye düşen nemde çalışır |
| Front Panel Protection Rating | IP65 |
| Rear Panel Protection Rating | IP20 |
| Operating Altitude | En çok 2000m |
| Mounting Style | Sıkıştırılarak panoya yerleştirilir (DIN 43 700acc. to) |
| Housing Material | Kendi kendine sönen plastik |
| Housing Dimensions (W×H×D) | G72xY72xD97mm |
| Cut-out Dimensions | 68 x 68 mm |
| Alarm Output | A1: Röle 250V AC, 8A (rezistif load için) |
