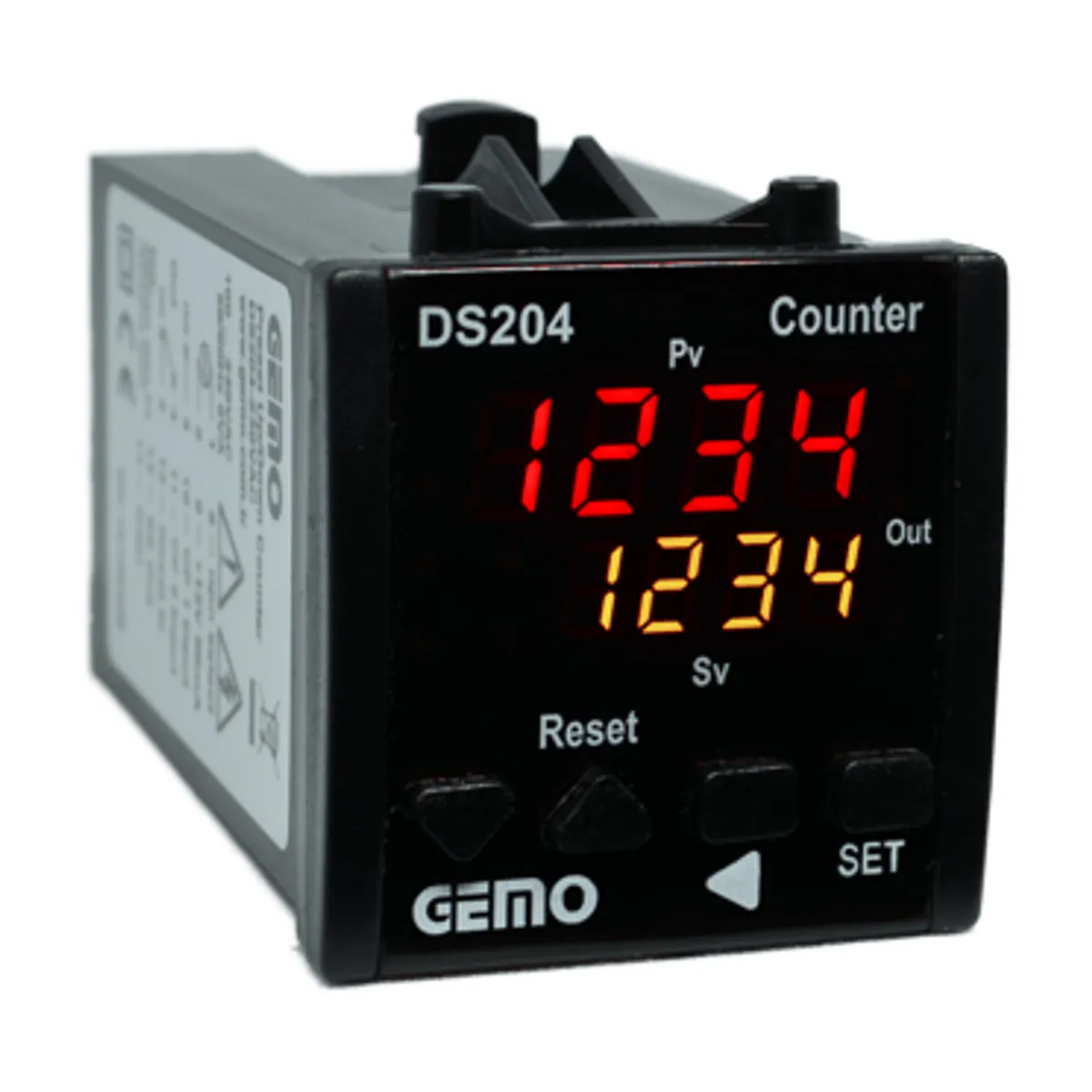

GEMO DS204-230VAC 4-Digit Counter
- Brand: GEMO
- SKU: DS204-230VAC
- MPN: DS204-230VAC
- Price: 1313.85 TRY + VAT · incl. VAT 1576.62 TRY
- Availability: In stock
- Tachometers and Counters
- Selection guide: Tachometers and Counters Selection Guide: Technical Criteria and Engineering Practice
GEMO DS204-230VAC is a 4-digit counter with a 48x48 mm panel size and 100..240Vac supply. Has a 2x4-digit PV and SV display.
| Supply Type | 100..240 VAC |
|---|---|
| Size Type | 48x48 mm |
| Product Type | 4 Haneli Sayıcı |
| Display | 2x4 Dijit, PV ve SV |
| Panel Cut-out | 45,5x45,5 mm |
| Relay Output | Röle (O-NA-NK), 250VAC, 2A, Rezistif load |
| Solid-State (SS) Output | 1 x open collector (NPN çıkış), 30V, 100mA maks. |
| Counting Input | 2 adet (maks. 7500 Hz, 5-30V) |
| Counting Speed | 20, 500, 2500, 7500Hz programlanabilir |
| Sensor Input Type | PNP/NPN proximity switch - NPN/PNP/Totem-pole çıkışlı encoder |
| Sensor Supply Output | 12VDC, 50mA maks. (regülesiz) |
| Power Consumption | < 6VA |
| Operating Temperature | 0 .. 50 °C |
| Storage Temperature | -10 °C .. 60 °C (buzlanma olmadan) |
| Relative Humidity | 30 °C'ye kadar %80, sonra doğrusal azalarak 50 °C'de %50 (yoğunlaşmasız) |
| Operating Altitude | < 2000 m |
| Standards | EMC: EN 61000-6-1, EN 61000-6-3; Güvenlik: EN 61010-1 |
| Pollution Degree | 1 |
| IP Rating | IP20 |
| Tightening Torque | en fazla 0.5 N.m (klemens) |
| Mounting Type | Panel tipi sabit montaj |
