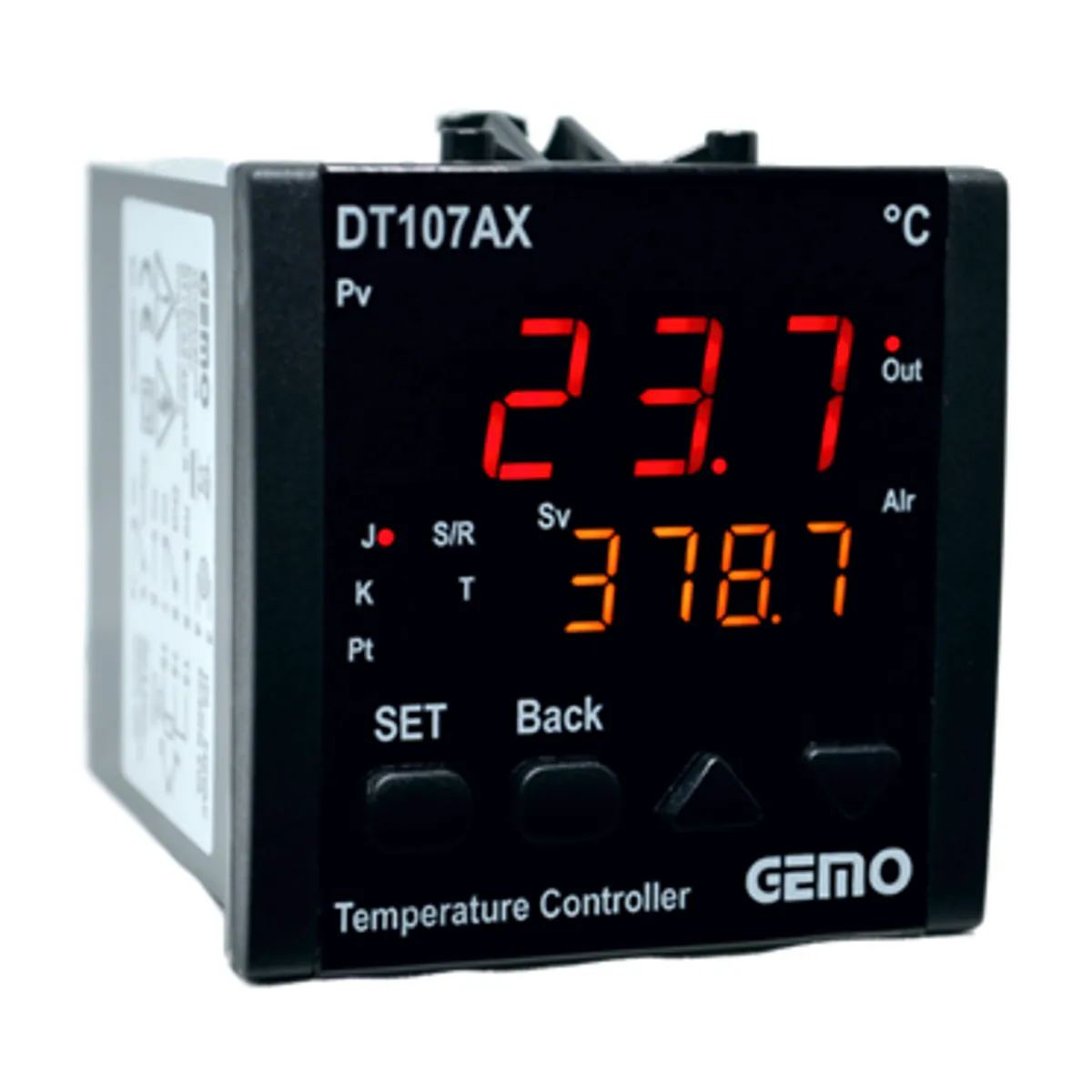

GEMO DT107AX-24V-R Advanced Auto-Tune PID Temperature Controller, 72 x 72 mm, 24 VDC/AC, Relay Control Output, Relay Alarm Output
- Brand: GEMO
- SKU: DT107AX-24V-R
- MPN: DT107AX-24V-R
- Price: 1447.91 TRY + VAT · incl. VAT 1737.49 TRY
- Availability: In stock
- PID Thermostats
- GEMO PID Thermostats
- Selection guide: PID Thermostats Selection Guide: Technical Criteria and Engineering Practice
GEMO DT107AX-24V-R with 72 x 72 mm panel size is an auto-tune PID temperature controller with 24 VDC/AC supply. With relay control and alarm outputs, it offers selectable J, K, T, S, R thermocouple and Pt100 inputs.
| Supply Type | 24 VDC/AC |
|---|---|
| Size Type | 72x72 mm |
| Sensor Input Type | T/C (J, K, T, S, R), Pt100 |
| Display | 2x4 Dijit, PV ve SV |
| Control Type | Auto Tune PID / On-Off |
| Panel Cut-out | 68x68 mm |
| Control Output | Röle, 250VAC, 2A, Rezistif load |
| Alarm Output | Röle, 250VAC, 2A, Rezistif load |
| Measuring Range | J: -100 .. 600 °C; K: -100 .. 1300 °C; T: -100 .. 400 °C; S: 0 .. 1750 °C; R: 0 .. 1750 °C; Pt100: -100 .. 600 °C |
| Resolution | ± 1 °C veya ± 0.1 °C |
| Accuracy | ± % 1 (Tam Skalanın) |
| Control Period | 1 .. 200 sn |
| Heating/Cooling Function | Seçmeli (soğutma fonksiyonu için sadece ON-OFF) |
| Power Consumption | < 8 VA |
| Operating Temperature | 0 .. 50 °C |
| Storage Temperature | -10 °C .. 60 °C (buzlanma olmadan) |
| Relative Humidity | < %70 (yoğunlaşmasız) |
| Operating Altitude | < 2000 m |
| Standards | EMC: EN 61000-6-1, EN 61000-6-3; Güvenlik: EN 61010-1 |
| Pollution Degree | 1 |
| IP Rating | IP20 |
| Tightening Torque | en fazla 0.5 N.m (klemens) |
| Mounting Type | Panel tipi sabit montaj |
