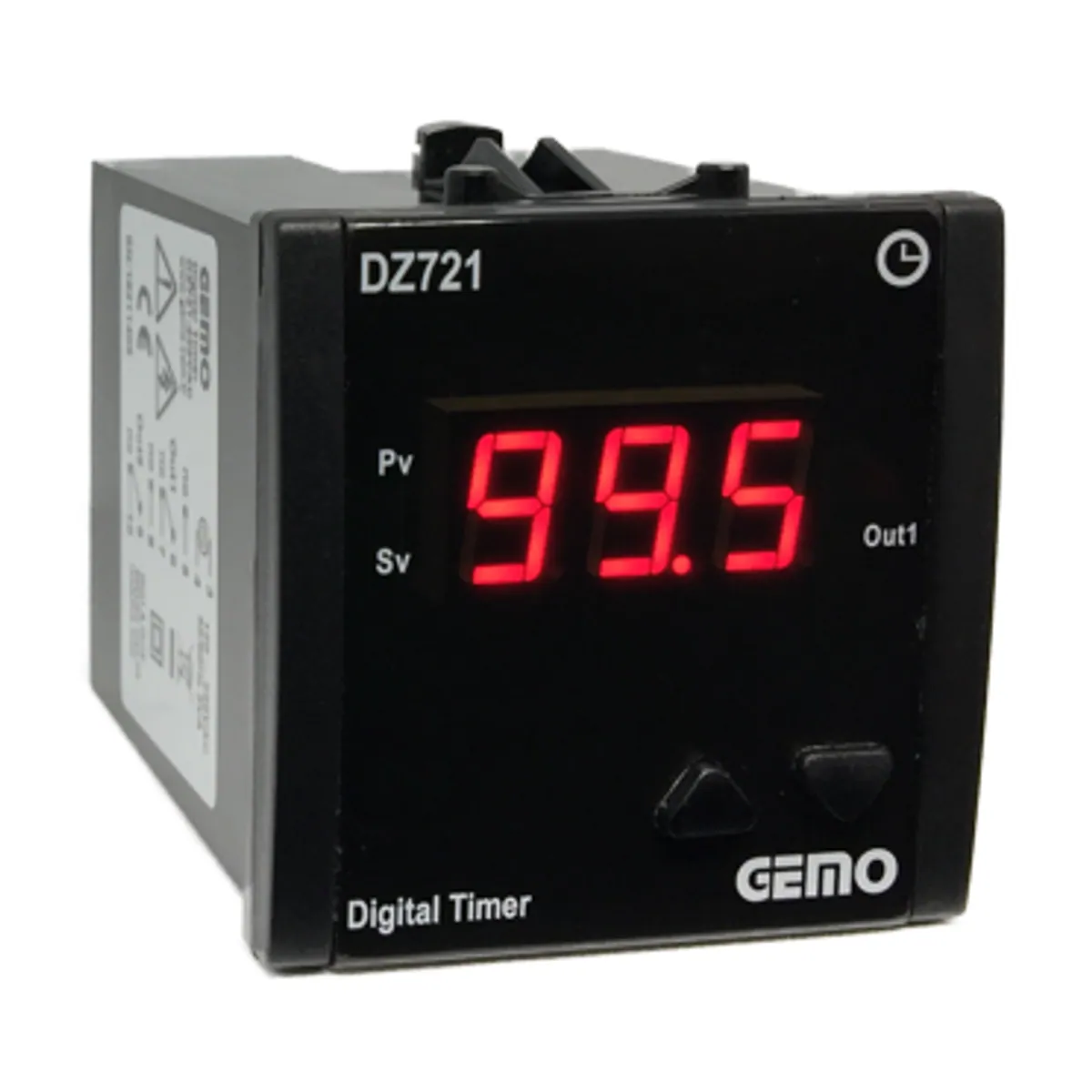

GEMO DZ721-230VAC Basic Function Time Relay
- Brand: GEMO
- SKU: DZ721-230VAC
- MPN: DZ721-230VAC
- Price: 831.21 TRY + VAT · incl. VAT 997.45 TRY
- Availability: In stock
- Multi-Function Timer Relays
- GEMO Multi-Function Timer Relays
- Selection guide: Multi-Function Timer Relays Selection Guide: Technical Criteria and Engineering Practice
GEMO DZ721-230VAC basic function time relay; has 72x72 mm panel size, 100..240Vac supply voltage, 1x3 digital PV display and on-delay/flasher function.
| Display | 1x3 Dijit, PV |
|---|---|
| Size Type | 72x72 mm |
| Function | Çekmede Gecikme / Flaşör |
| Control Inputs | None |
| Panel Cut-out | 68x68 mm |
| Relay Output | Out1 (gecikme): Röle (NA+NK), 250VAC, 2A, Rezistif load; Out2 (ani kontak): Röle (NA+NK), 250VAC, 2A, Rezistif load |
| Resolution | 0.1 san. / 1 san. / 0.1 dak. / 1 dak. |
| Accuracy | ± % 1,5 (Tam Skalanın) |
| Power Consumption | < 6VA |
| Operating Temperature | 0 .. 50 °C |
| Storage Temperature | -10 °C .. 60 °C (buzlanma olmadan) |
| Relative Humidity | 30 °C'ye kadar %80, sonra doğrusal azalarak 50 °C'de %50 (yoğunlaşmasız) |
| Operating Altitude | < 2000 m |
| Standards | EMC: EN 61000-6-1, EN 61000-6-3; Güvenlik: EN 61010-1 |
| Pollution Degree | 1 |
| IP Rating | IP20 |
| Tightening Torque | en fazla 0.5 N.m (klemens) |
| Mounting Type | Panel tipi sabit montaj |
