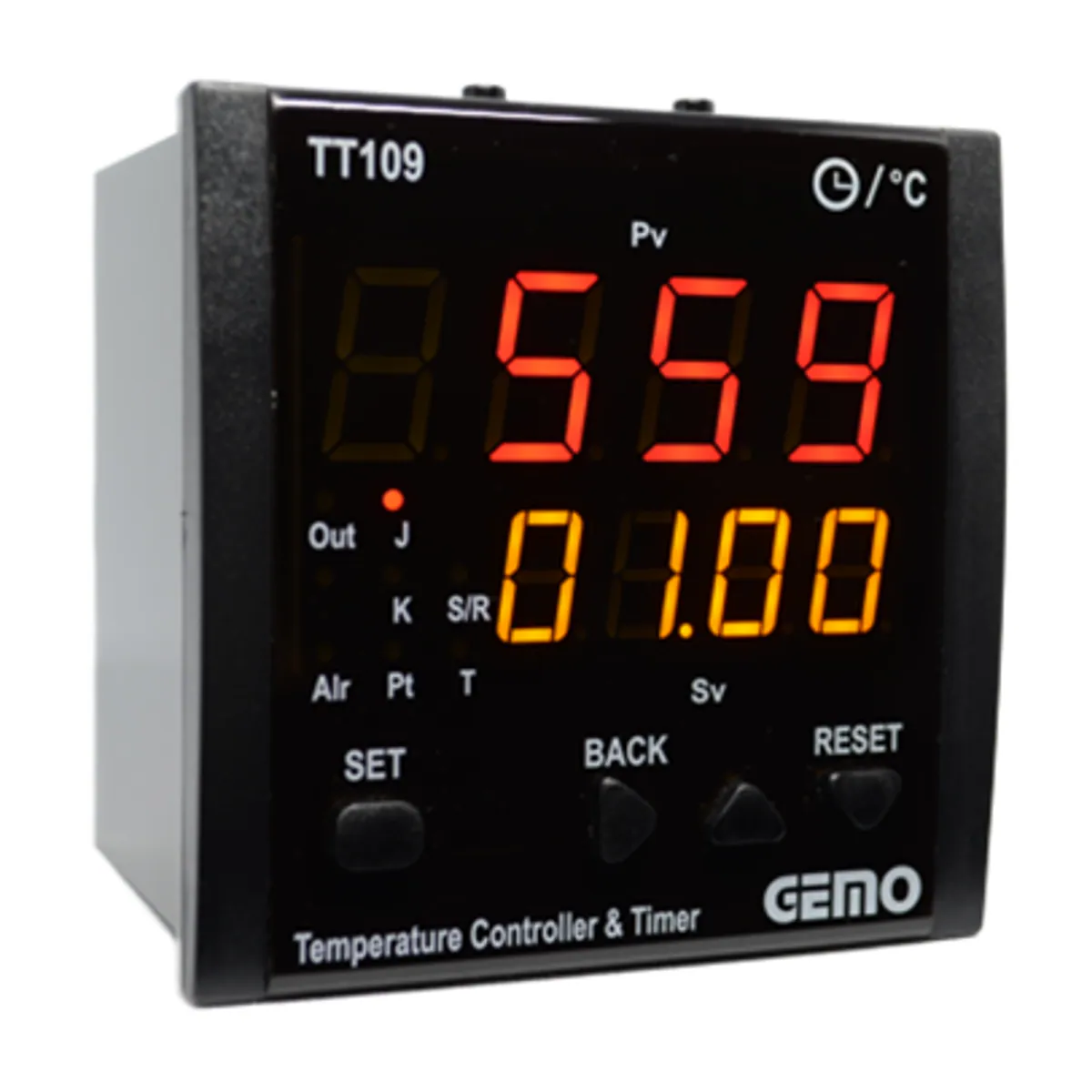

GEMO TT109A-24V-R Auto-Tune PID Temperature Controller with Built-In Timer Relay, 96 x 96 mm, 18..32 VDC / 14..28 VAC, Relay Control Output, Relay Alarm Output
- Brand: GEMO
- SKU: TT109A-24V-R
- MPN: TT109A-24V-R
- Price: 1796.48 TRY + VAT · incl. VAT 2155.78 TRY
- Availability: In stock
- PID Thermostats
- GEMO PID Thermostats
- Selection guide: PID Thermostats Selection Guide: Technical Criteria and Engineering Practice
GEMO TT109A-24V-R is an Auto-tune PID temperature controller with built-in timer relay, 96x96 mm panel size and 18..32Vdc / 14..28Vac supply voltage. With a relay control output and a relay alarm output, it offers J, K, S, R, T and Pt100 inputs.
| Supply Type | 18..32Vdc / 14..28Vac |
|---|---|
| Size Type | 96x96 mm |
| Sensor Input Type | J, K, S, R, T, Pt100 |
| Display | 2x4 Dijit, PV ve SV |
| Control Type | Auto Tune PID / On-Off |
| Panel Cut-out | 91x91 mm |
| Control Output | Röle (NA + NK), 250VAC, 2A, Rezistif load |
| Alarm Output | Röle (NA + NK), 250VAC, 2A, Rezistif load |
| Measuring Range | J: -100 .. 600 °C; K: -100 .. 1300 °C; T: -100 .. 400 °C; S: 0 .. 1750 °C; R: 0 .. 1750 °C; Pt100: -100 .. 600 °C |
| Resolution | ± 1 °C veya ± 0.1 °C |
| Accuracy | ± % 0.3 (Tam Skalanın) |
| Time setting range | 00:00 .. 99:59 saat |
| Timing Accuracy | ± % 1.5 (t.SET veya A.Off değerlerinin) |
| Control Period | 4 .. 200 sn |
| Power Consumption | < 8 VA |
| Operating Temperature | 0 .. 50 °C |
| Storage Temperature | -10 °C .. 60 °C (buzlanma olmadan) |
| Relative Humidity | 30 °C'ye kadar %80, sonra doğrusal azalarak 50 °C'de %50 (yoğunlaşmasız) |
| Operating Altitude | < 2000 m |
| Standards | EMC: EN 61000-6-1, EN 61000-6-3; Güvenlik: EN 61010-1 |
| Pollution Degree | 1 |
| IP Rating | IP20 |
| Tightening Torque | en fazla 0.5 N.m (klemens) |
| Mounting Type | Panel tipi sabit montaj |
