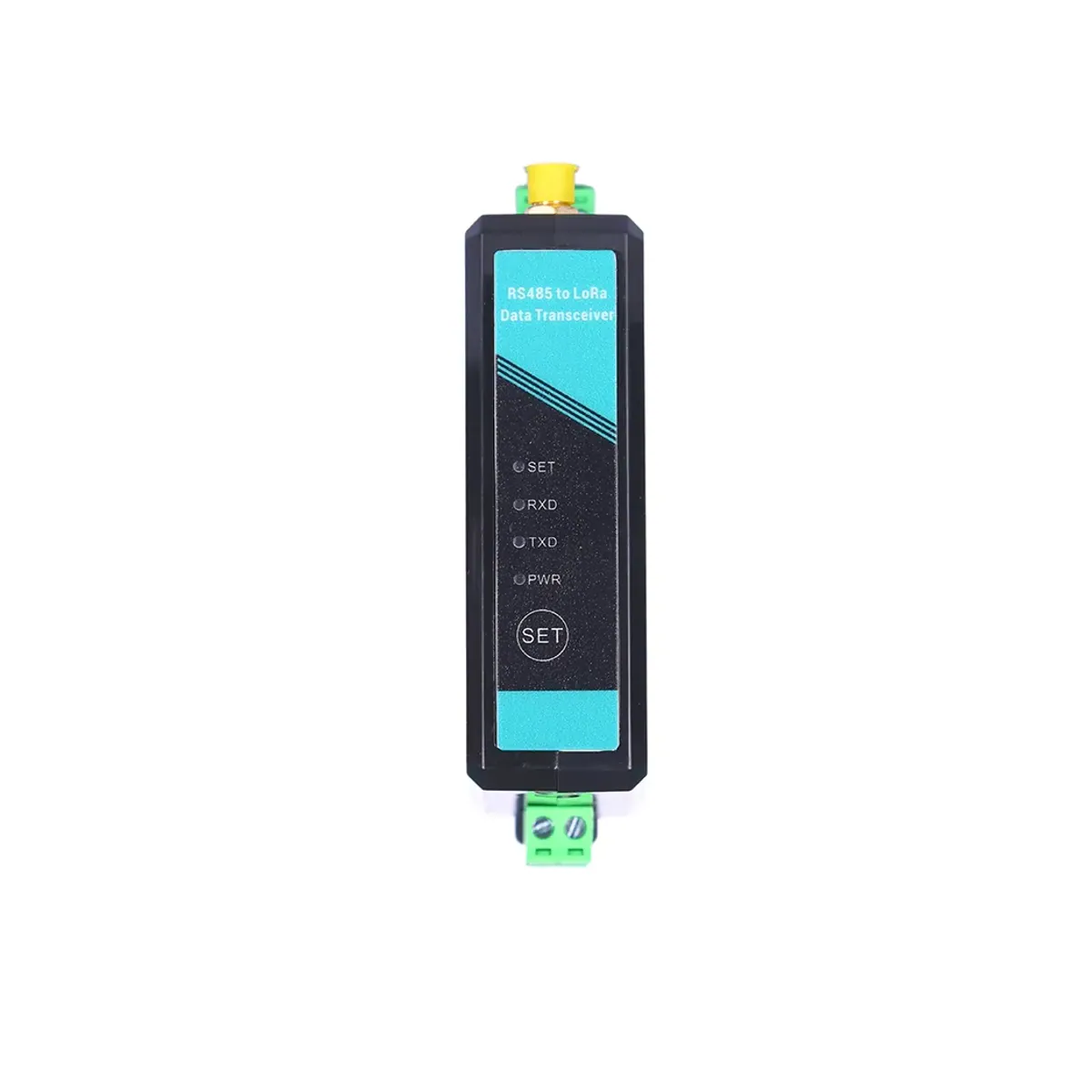

GMT G-LORA-485-D10 Wireless Communication Converter
- Brand: GMT
- SKU: G-LORA-485-D10
- MPN: G-LORA-485-D10
- Price: 4617.82 TRY + VAT · incl. VAT 5541.38 TRY
- Availability: In stock
- Wireless Communication Modems
- Selection guide: Industrial Communication Selection Guide: Technical Criteria and Engineering Practice
GMT G-LORA-485-D10 is a RS485 LoRa converter for wireless data transfer up to 10 km. Adapter not included; at least two devices are required for transmitter/receiver connection.
| Communication Type | RS485 |
|---|---|
| Transmission Distance | 10 km’ye kadar |
| Supply Voltage | 8–28 V DC |
| FIFO Memory | 512 bayt |
| Frequency Range | 410–490 MHz |
| Number of Wireless Channels | 81 |
| Channel Spacing | 1 MHz |
| Maximum Output Power | 30 dBm (1 W) |
| Serial Port Support | RS485 |
| Operating Temperature | -40–85 °C |
| Communication Mode | Yayın, izleme, hedef iletim, master/slave, otomatik röle, hedef uyandırma/cevap, transparan |
| Encryption | AES |
| Baud Rate | 300–115.200 bit/s (ayarlanabilir) |
| Required Minimum Number of Devices | 2 |
| Automatic ACK Response | Available |
| Automatic Relay | Available |
| Receiver Sensitivity | -129 dBm |
| Dimensions | 90 × 28,2 × 62 mm |
| Storage Temperature | -40–125 °C |
| Status LEDs | Güç, TXD, RXD |
| Wireless Transmission Speed | 1,2/2,4/4,8/9,6/19,2/38,4/50/62,5 kbit/s (8 kademe) |
| Modulation | LoRa |
| Configuration Connection | GCM485-USB ile bilgisayar bağlantısı |
| Operating Humidity | %10–90 bağıl nem |
| Transmission Power Levels | 21/24/27/30 dBm |
