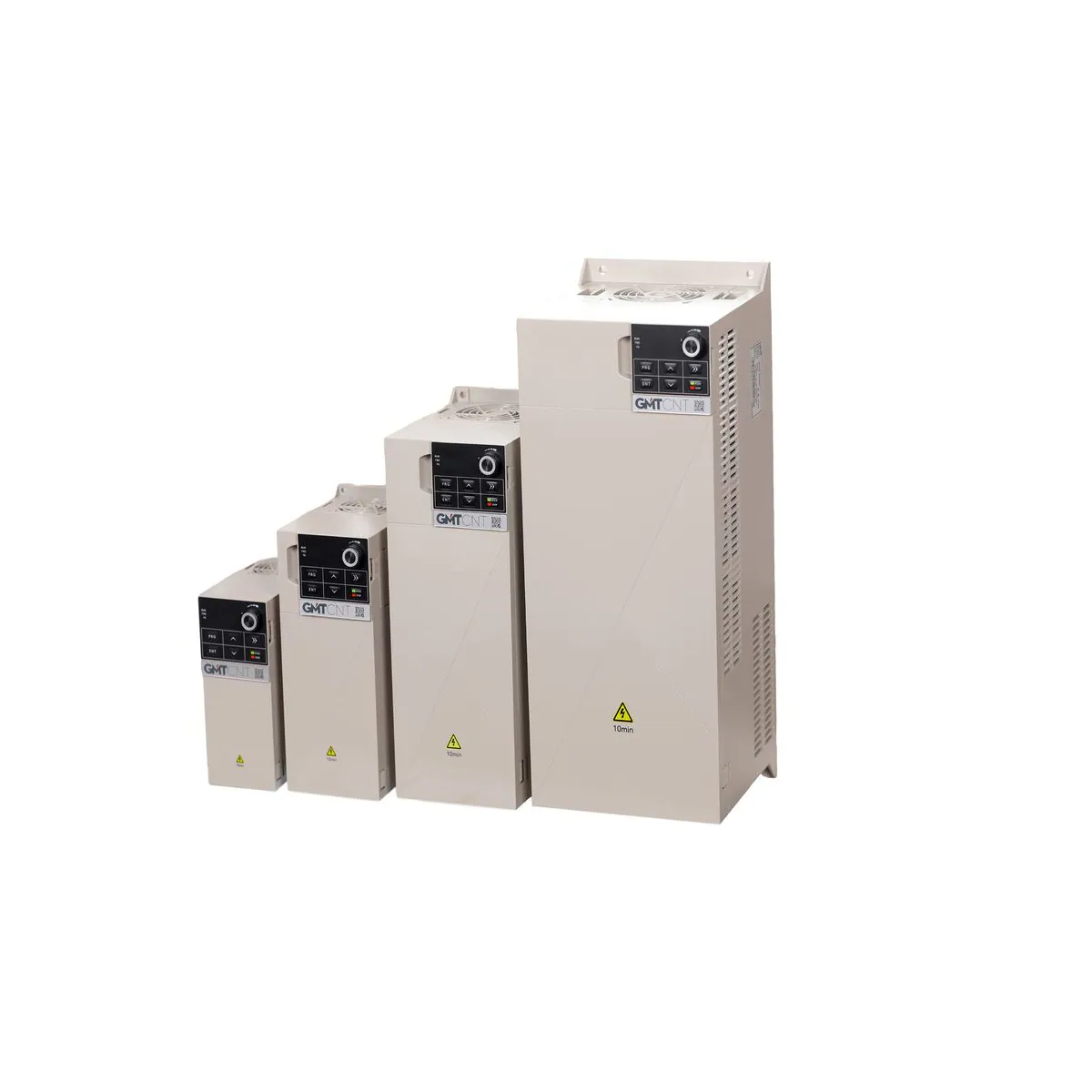

GMT SPIN2-00220S Solar Pump Drive, 2.2 kW
- Brand: GMT
- SKU: SPIN2-00220S
- MPN: SPIN2-00220S
- Price: 8927.79 TRY + VAT · incl. VAT 10713.35 TRY
- Availability: In stock
- Solar Pump Drives
- Selection guide: Solar Pump Drives Selection Guide: Technical Criteria & Application Standards
This GMT SPIN2-00220S is a 2.2 kW and 9.6 A solar pump drive. Offers 3 × 220 VAC output, built-in MPPT and Modbus RTU RS485 communication.
| Power | 2.2 kW |
|---|---|
| Input Voltage | 150–450 V DC |
| Output Voltage | 3 × 220 VAC |
| Output Current | 9.6 A |
| Number of Analog Inputs | 2 |
| Number of Analog Outputs | 1 |
| Overvoltage Protection | Available |
| Number of Digital Inputs | 4 |
| Undervoltage Protection | Available |
| Housing Dimensions (W×H×D) | 72 × 190 × 146 mm |
| Communication Protocols | Modbus RTU (RS485) |
| Control Mode | V/F veya vektör kontrol |
| Dry Run Protection | Available |
| Short-Circuit Protection | Available |
| MPPT Function | Dahili |
| Number of Relay Outputs | 1 |
| High Temperature Protection | Available |
| Mains Input Voltage | 220–240 VAC, 50/60 Hz |
| Open Circuit Protection | Available |
| Maximum Input Voltage (Voc) | 450 V DC |
| Start-up Voltage | 180 V DC |
| Optimum Input Voltage | 330 V DC |
| Recommended MPP Voltage Range | 275–380 V DC |
| Recommended PV Array Power | 2.7–3.5 kW |
| Alternative AC Generator Input Voltage | 1 faz 220–240 V |
| Alternative AC Generator Maximum Current (RMS) | 2.3 A |
| Alternative AC Generator Power | 4 kVA |
| Output Frequency | 0–50/60 Hz |
| Mounting Hole Spacing (W1 × H1) | 56 × 180 mm |
| Mounting Hole Diameter | 5 mm |
| Operating Temperature | -20–60 °C (45 °C üzerinde performans kaybı olabilir) |
| Operating Humidity | ≤%95 RH |
| Cooling Type | Fan |
| Certification | IEC/EN 61800-5-1, IEC/EN 61800-2:2004, IEC/EN 61800-3:2004, CE |
| Motor Cooling Protection | Dahili |
| High Voltage Protection | Dahili |
| Hybrid Operation | Güneş enerjisi ve şebeke beslemesi arasında kesintisiz geçiş |
