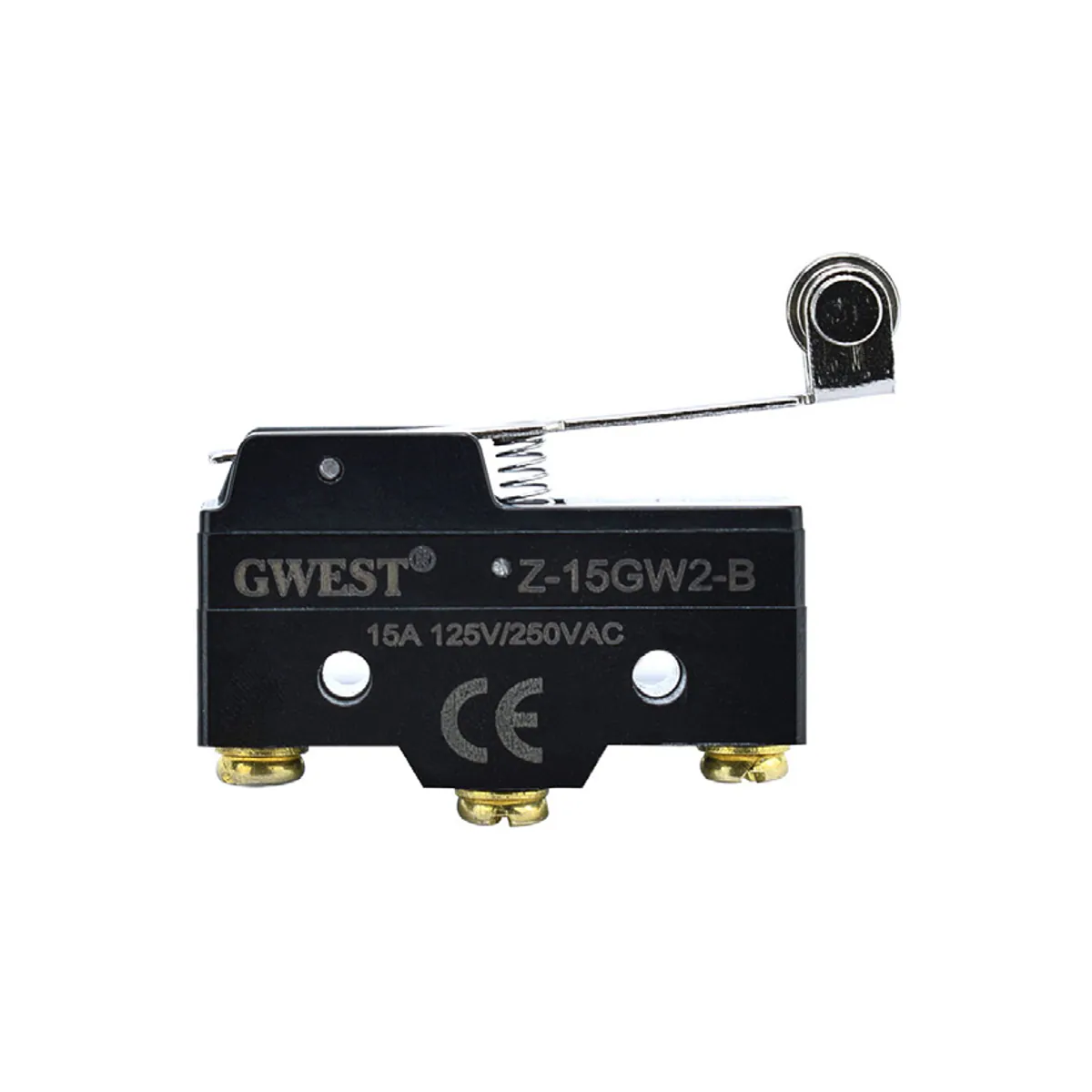

Gwest AZ - 15GW2 - B Az Series Micro Switch
- Brand: Gwest
- SKU: 6815
- MPN: AZ - 15GW2 - B
- Price: 95.93 TRY + VAT · incl. VAT 115.12 TRY
- Availability: In stock
- Micro and Miniature Switches
- Gwest Micro and Miniature Switches
- Selection guide: Micro and Miniature Switches Selection Guide: Technical Criteria and Engineering Practice
Gwest AZ - 15GW2 - B AZ Series Micro Switch. Long Lever Metal Roller 15A 1NO + 1NC. Key technical features - Contact Arrangement: 1NO + 1NC - Current: 15 A - Switch Actuator Type: Long Paddle, Metal Roller - Nominal Voltage: 125/250 V AC
| Current | 15 A |
|---|---|
| Contact Arrangement | 1NO+1NC |
| Nominal Voltage | 125/250 V AC |
| Switch Action Type | Uzun Palet Metal Makaralı |
| Technical Drawing Dimension Notes | Ön görünüş: 27.8; R48.5; t=1; 20.5; 17.8; 25.4 ±0.1; 12; 50 Max; 2 adet 4.2 (+0.1/0) montaj deliği. Yan görünüş: makara ölçü çağrısı 9.3 x 4.8; 24.2; 9.2; 18 Max. PT ve OP harfleri sayısal değer olmadan gösterilmiş |
| Manufacturer Order Code | 6815 |
| Manufacturer Product Code | AZ - 15GW2 - B |
| Product Type | Az Serisi Mikro Swıtch |
