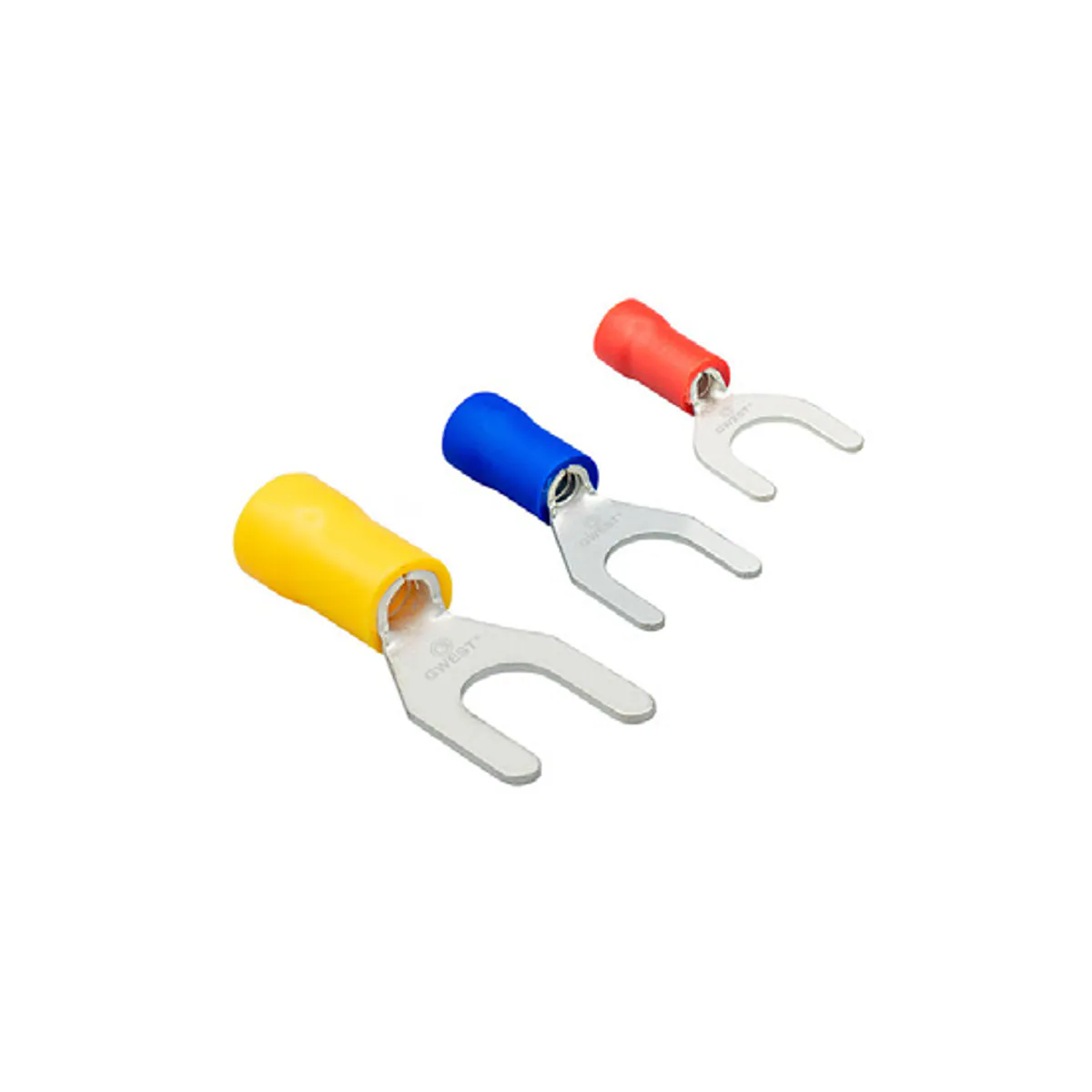

Gwest GÇU - 5002 Fork Type Insulated Cable Terminals — Blue
- Brand: Gwest
- SKU: 3107
- MPN: GÇU - 5002
- Price: 277.20 TRY + VAT · incl. VAT 332.64 TRY
- Availability: In stock
- Fork Type Insulated Cable Terminals
- Gwest Fork Type Insulated Cable Terminals
- Selection guide: Fork Type Insulated Cable Terminals Selection Guide: Technical Criteria and Engineering Practice
Gwest GÇU - 5002 Fork Type Insulated Cable Terminals. Key technical features - Cable Cross-Section: 1.50 - 2.50 mm² - Color: Blue - Material: Copper, Tin-Plated - Insulation: PVC - Operating Temperature: Maximum 105 °C - Voltage: 600 V - Standard: DIN 46237 - Terminal Dimension d2: 5.3 mm - Bolt Size: M5 - Terminal Dimension d1: 2.3 mm - Terminal Dimension d3: 10.0 mm - Terminal Dimension a: 10.0 mm - Terminal Dimension d4: 4.5 mm - Terminal Dimension I: 19.0 mm
| Bolt Size | M5 |
|---|---|
| Voltage | 600 V |
| Cable Cross-Section | 1.5–2.5 mm² |
| Material | Bakır, Kalay Kaplı |
| Color | Blue |
| Standard | DIN 46237 |
| Terminal Dimension I | 19 mm |
| Terminal Dimension a | 10 mm |
| Terminal Dimension d1 | 2.3 mm |
| Terminal Dimension d2 | 5.3 mm |
| Terminal Dimension d3 | 10 mm |
| Terminal Dimension d4 | 4.5 mm |
| Operating Temperature | Maksimum 105 °C |
| Manufacturer Order Code | 3107 |
| Manufacturer Product Code | GÇU - 5002 |
| Product Type | Çatal Tip İzoleli Kablo Uçları |
| Isolation | PVC |
