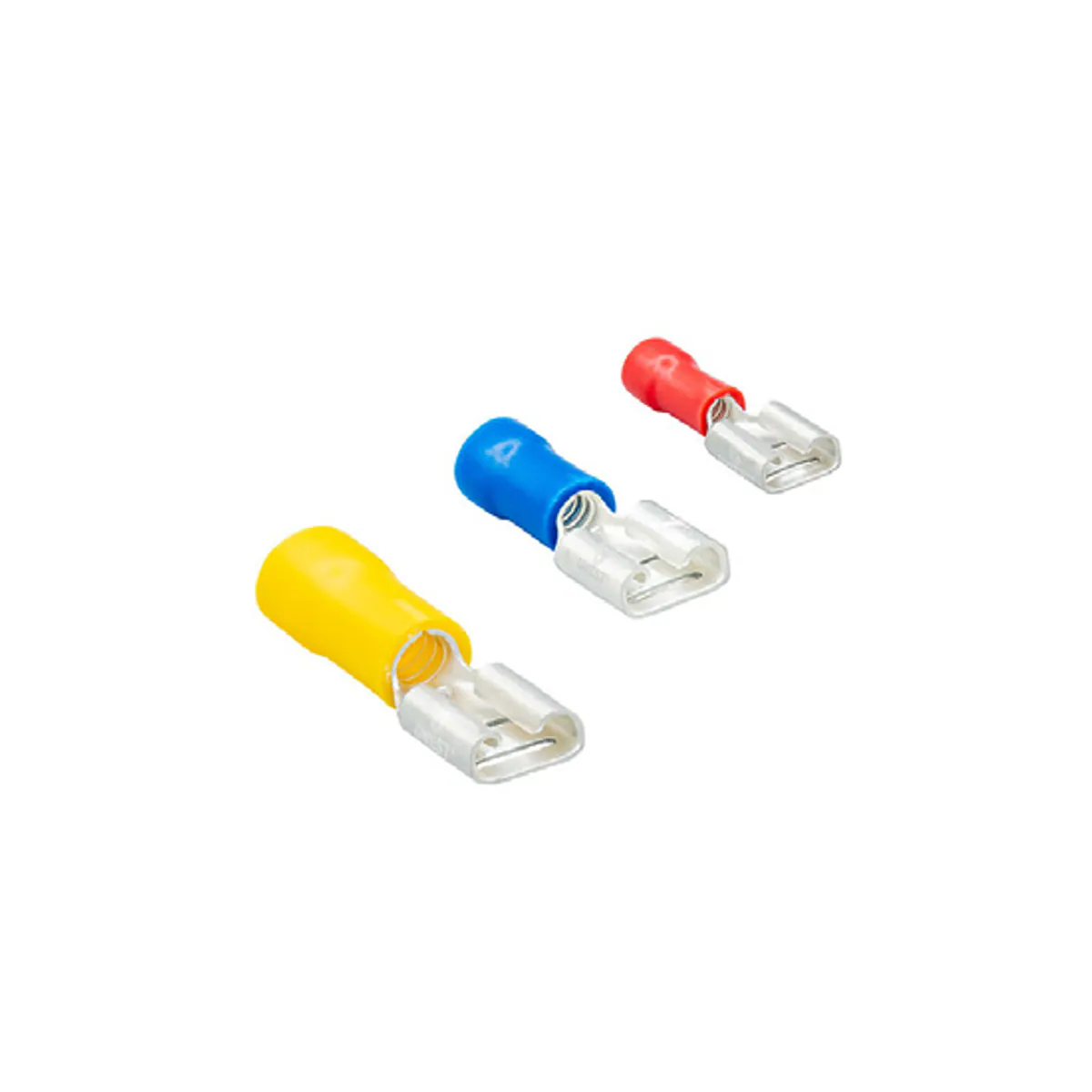

Gwest GFD - 1288 Female Faston Type Insulated Cable Terminals — Red
- Brand: Gwest
- SKU: 3210
- MPN: GFD - 1288
- Price: 159.60 TRY + VAT · incl. VAT 191.52 TRY
- Availability: In stock
- Female Terminals
- Gwest Female Terminals
- Selection guide: Female Terminals Selection Guide: Technical Criteria and Engineering Practice
Gwest GFD - 1288 Female Faston Type Insulated Cable Terminals. Key technical features - Cable Cross-Section: 0.50 - 1.50 mm² - Color: Red - Material: Brass, Tin-Plated - Insulation: PVC - Operating Temperature: Maximum 75 °C - Voltage: 600 V - Terminal Dimension W: 3.2 mm - Terminal Dimension F: 6.5 mm - Terminal Dimension D: 3.8 mm - Socket Width: 0.8 x 2.80 - Terminal Dimension L: 19.0 mm - Terminal Dimension B: 10.5 mm
| Voltage | 600 V |
|---|---|
| Cable Cross-Section | 0.5–1.5 mm² |
| Material | Pirinç, Kalay Kaplı |
| Color | Red |
| Socket Width | 0.8 x 2.80 |
| Terminal Dimension B | 10.5 mm |
| Terminal Dimension D | 3.8 mm |
| Terminal Dimension F | 6.5 mm |
| Terminal Dimension L | 19 mm |
| Terminal Dimension W | 3.2 mm |
| Operating Temperature | Maksimum 75 °C |
| Manufacturer Order Code | 3210 |
| Manufacturer Product Code | GFD - 1288 |
| Product Type | Dişi Faston Tip İzoleli Kablo Uçları |
| Isolation | PVC |
