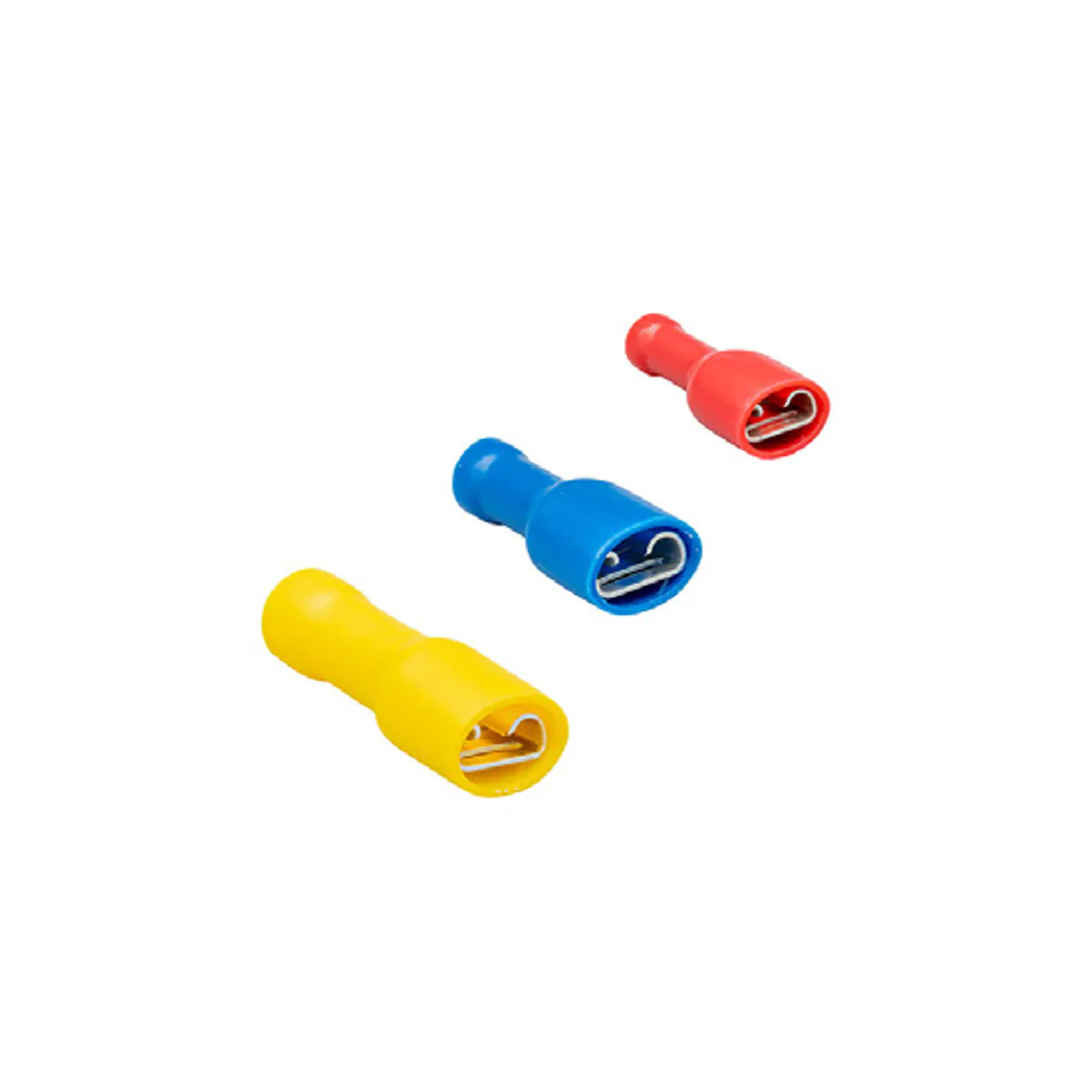

Gwest GFFD - 5638 Fully Insulated Female Faston Type Cable Terminals — Yellow
- Brand: Gwest
- SKU: 3224
- MPN: GFFD - 5638
- Price: 222.60 TRY + VAT · incl. VAT 267.12 TRY
- Availability: In stock
- Female Terminals
- Gwest Female Terminals
- Selection guide: Female Terminals Selection Guide: Technical Criteria and Engineering Practice
Gwest GFFD - 5638 Fully Insulated Female Faston Type Cable Terminals. Key technical features - Cable Cross-Section: 4.00 - 6.00 mm² - Color: Yellow - Material: Brass, Tin-Plated - Insulation: PVC - Operating Temperature: Maximum 75 °C - Voltage: 600 V - Terminal Dimension W: 6.6 mm - Terminal Dimension F: 7.5 mm - Terminal Dimension D: 6.2 mm - Socket Width: 0.8 x 6.35 - Terminal Dimension L: 24.2 mm - Terminal Dimension B: 12.5 mm
| Voltage | 600 V |
|---|---|
| Cable Cross-Section | 4–6 mm² |
| Material | Pirinç, Kalay Kaplı |
| Color | Yellow |
| Socket Width | 0.8 x 6.35 |
| Terminal Dimension B | 12.5 mm |
| Terminal Dimension D | 6.2 mm |
| Terminal Dimension F | 7.5 mm |
| Terminal Dimension L | 24.2 mm |
| Terminal Dimension W | 6.6 mm |
| Operating Temperature | Maksimum 75 °C |
| Manufacturer Order Code | 3224 |
| Manufacturer Product Code | GFFD - 5638 |
| Product Type | Tam İzoleli Dişi Faston Tip Kablo Uçları |
| Isolation | PVC |
