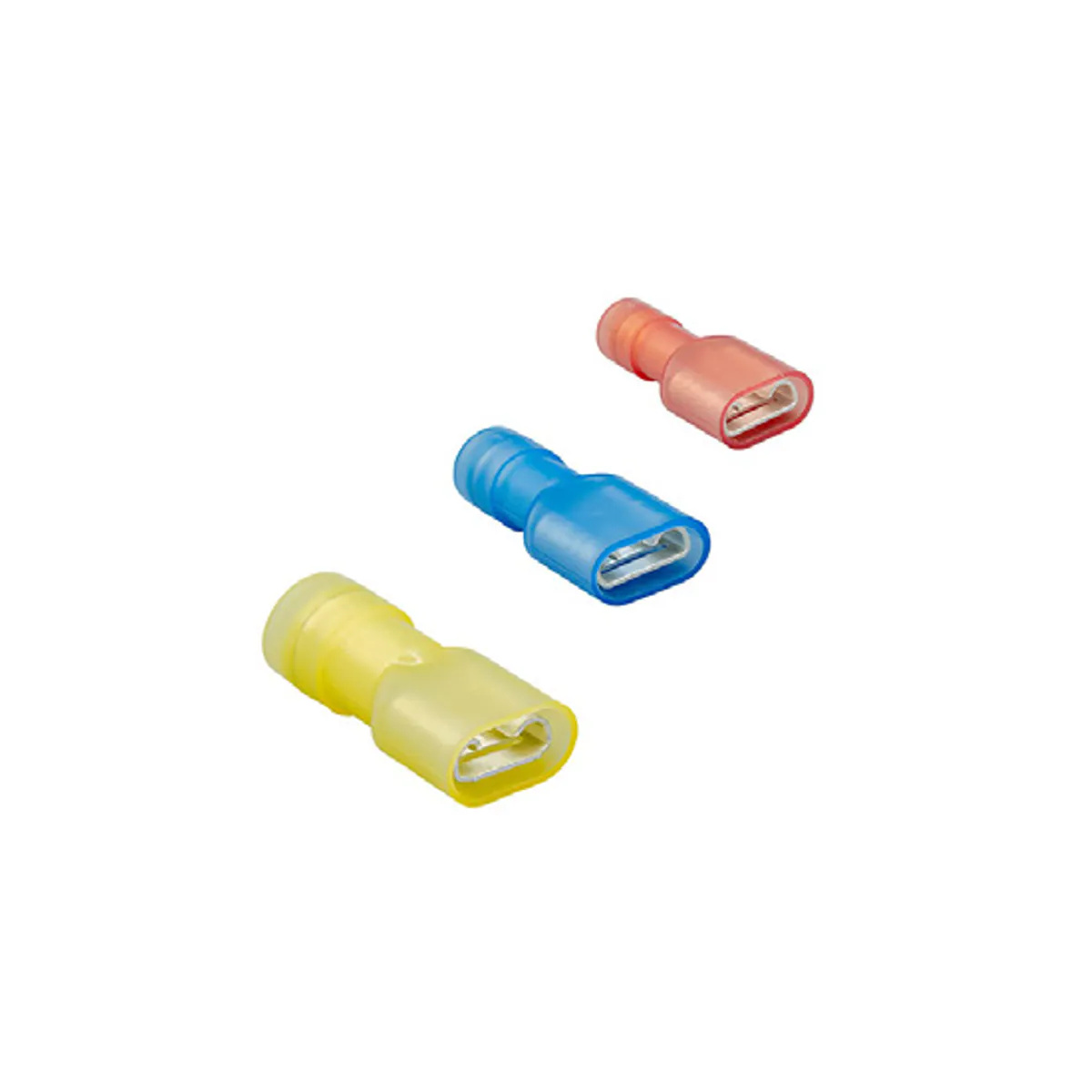

Gwest GPFD - 1638 Fully Insulated Polyamide Female Faston Type Cable Terminals — Red
- Brand: Gwest
- SKU: 3225
- MPN: GPFD - 1638
- Price: 924.00 TRY + VAT · incl. VAT 1108.80 TRY
- Availability: In stock
- Female Terminals
- Gwest Female Terminals
- Selection guide: Female Terminals Selection Guide: Technical Criteria and Engineering Practice
Gwest GPFD - 1638 Fully Insulated Polyamide Female Faston Type Cable Terminals. Key technical features - Cable Cross-Section: 0.50 - 1.50 mm² - Color: Red - Material: Brass, Tin-Plated - Insulation: Polyamide - Operating Temperature: Maximum 105 °C - Voltage: 600 V - Terminal Dimension W: 6.6 mm - Terminal Dimension F: 7.5 mm - Terminal Dimension D: 4.0 mm - Socket Width: 0.8 x 6.35 - Terminal Dimension L: 21.5 mm - Terminal Dimension B: 11.0 mm
| Voltage | 600 V |
|---|---|
| Cable Cross-Section | 0.5–1.5 mm² |
| Material | Pirinç, Kalay Kaplı |
| Color | Red |
| Socket Width | 0.8 x 6.35 |
| Terminal Dimension B | 11 mm |
| Terminal Dimension D | 4 mm |
| Terminal Dimension F | 7.5 mm |
| Terminal Dimension L | 21.5 mm |
| Terminal Dimension W | 6.6 mm |
| Operating Temperature | Maksimum 105 °C |
| Manufacturer Order Code | 3225 |
| Manufacturer Product Code | GPFD - 1638 |
| Product Type | Tam İzoleli Polyamid Dişi Faston Tip Kablo Uçları |
| Isolation | Polyamid |
