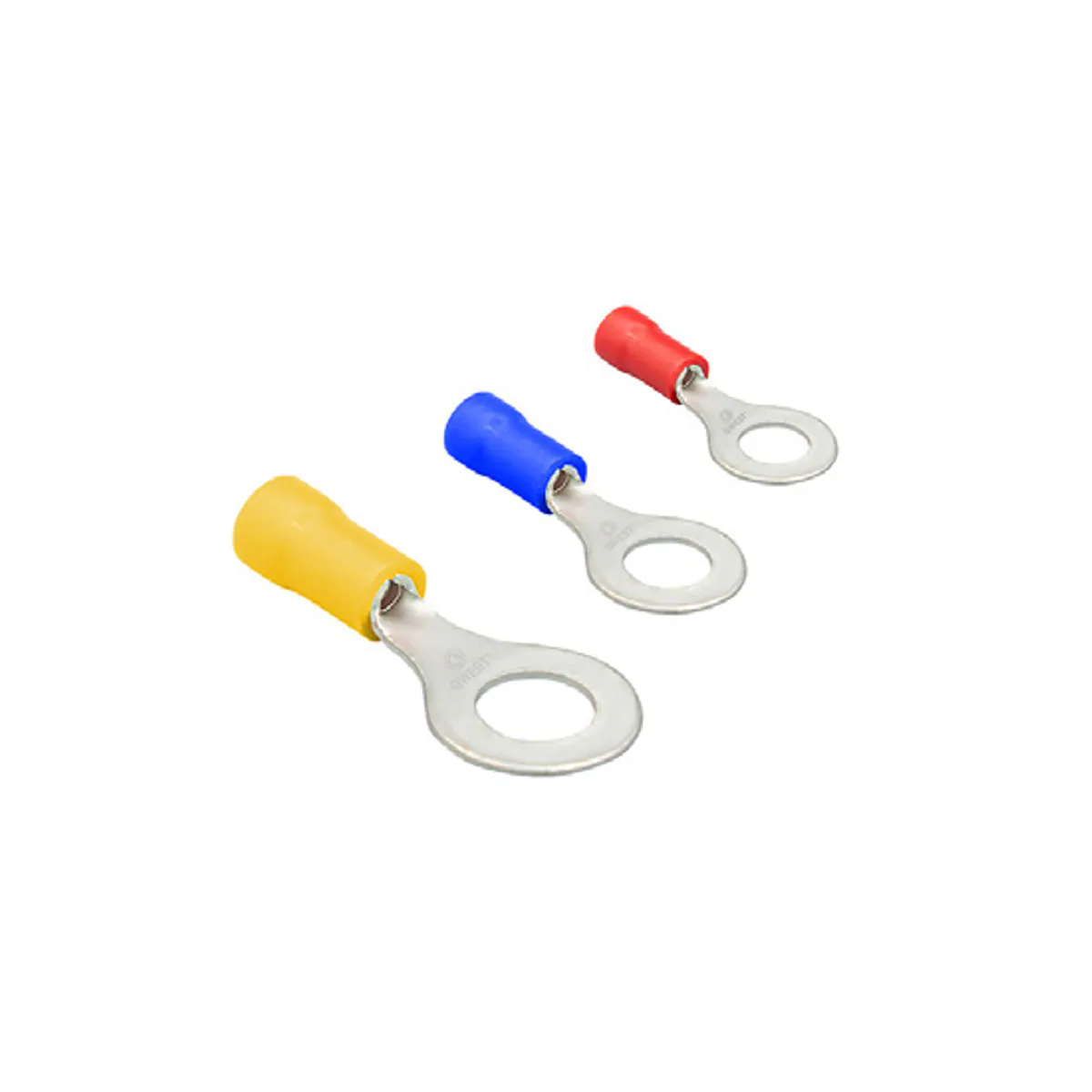

Gwest GYU - 302 Ring Type Insulated Cable Terminals — Blue
- Brand: Gwest
- SKU: 3007
- MPN: GYU - 302
- Price: 319.20 TRY + VAT · incl. VAT 383.04 TRY
- Availability: In stock
- Ring Type Insulated Cable Terminals
- Gwest Ring Type Insulated Cable Terminals
- Selection guide: Ring Type Insulated Cable Terminals Selection Guide: Technical Criteria and Engineering Practice
Gwest GYU - 302 Ring Type Insulated Cable Terminals. Key technical features - Cable Cross-Section: 1.50 - 2.50 mm² - Color: Blue - Material: Copper, Tin-Plated - Insulation: PVC - Operating Temperature: Maximum 105 °C - Voltage: 600 V - Standard: DIN 46237 - Terminal Dimension d2: 3.2 mm - Bolt Size: M3 - Terminal Dimension d1: 2.3 mm - Terminal Dimension d3: 6.0 mm - Terminal Dimension a: 10.0 mm - Terminal Dimension d4: 4.5 mm - Terminal Dimension I: 16.0 mm
| Bolt Size | M3 |
|---|---|
| Voltage | 600 V |
| Cable Cross-Section | 1.5–2.5 mm² |
| Material | Bakır, Kalay Kaplı |
| Color | Blue |
| Standard | DIN 46237 |
| Terminal Dimension I | 16 mm |
| Terminal Dimension a | 10 mm |
| Terminal Dimension d1 | 2.3 mm |
| Terminal Dimension d2 | 3.2 mm |
| Terminal Dimension d3 | 6 mm |
| Terminal Dimension d4 | 4.5 mm |
| Operating Temperature | Maksimum 105 °C |
| Manufacturer Order Code | 3007 |
| Manufacturer Product Code | GYU - 302 |
| Product Type | Yuvarlak Tip İzoleli Kablo Uçları |
| Isolation | PVC |
