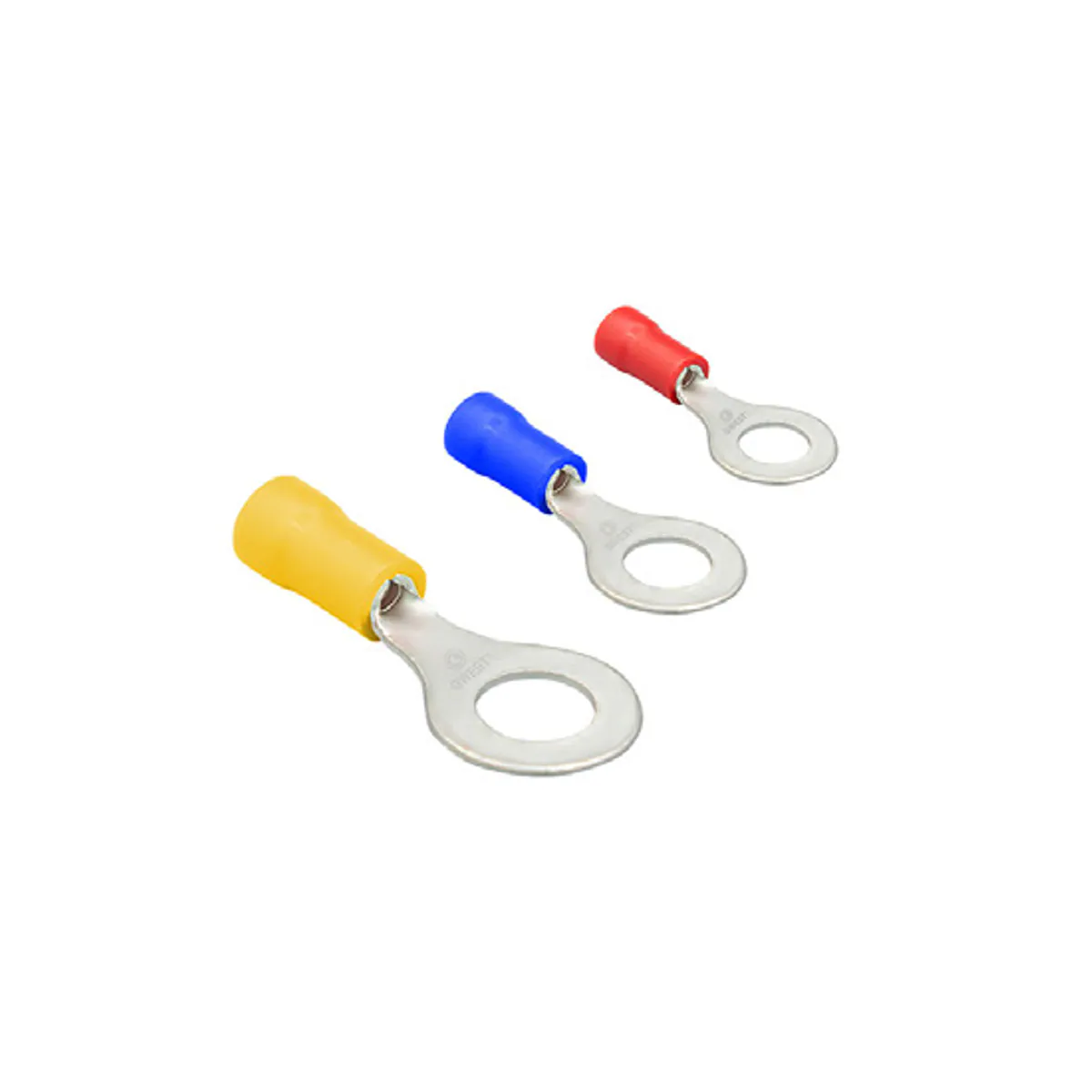

Gwest GYU - 610 Ring Type Insulated Cable Terminals — Red
- Brand: Gwest
- SKU: GWS3019
- MPN: GYU - 610
- Price: 277.20 TRY + VAT · incl. VAT 332.64 TRY
- Availability: In stock
- Ring Type Insulated Cable Terminals
- Gwest Ring Type Insulated Cable Terminals
- Selection guide: Ring Type Insulated Cable Terminals Selection Guide: Technical Criteria and Engineering Practice
Gwest GYU - 610 Ring Type Insulated Cable Terminals. Key technical features - Cable Cross-Section: 8.00 - 10.00 mm² - Color: Red - Material: Copper, Tin-Plated - Insulation: PVC - Operating Temperature: Maximum 105 °C - Voltage: 600 V - Standard: DIN 46237 - Terminal Dimension d2: 6.7 mm - Bolt Size: M6 - Terminal Dimension d1: 4.5 mm - Terminal Dimension d3: 23.5 mm - Terminal Dimension a: 17.0 mm - Terminal Dimension d4: 8.0 mm - Terminal Dimension I: 30.0 mm
| Bolt Size | M6 |
|---|---|
| Voltage | 600 V |
| Cable Cross-Section | 8–10 mm² |
| Material | Bakır, Kalay Kaplı |
| Color | Red |
| Standard | DIN 46237 |
| Terminal Dimension I | 30 mm |
| Terminal Dimension a | 17 mm |
| Terminal Dimension d1 | 4.5 mm |
| Terminal Dimension d2 | 6.7 mm |
| Terminal Dimension d3 | 23.5 mm |
| Terminal Dimension d4 | 8 mm |
| Operating Temperature | Maksimum 105 °C |
| Manufacturer Order Code | 3019 |
| Manufacturer Product Code | GYU - 610 |
| Product Type | Yuvarlak Tip İzoleli Kablo Uçları |
| Isolation | PVC |
