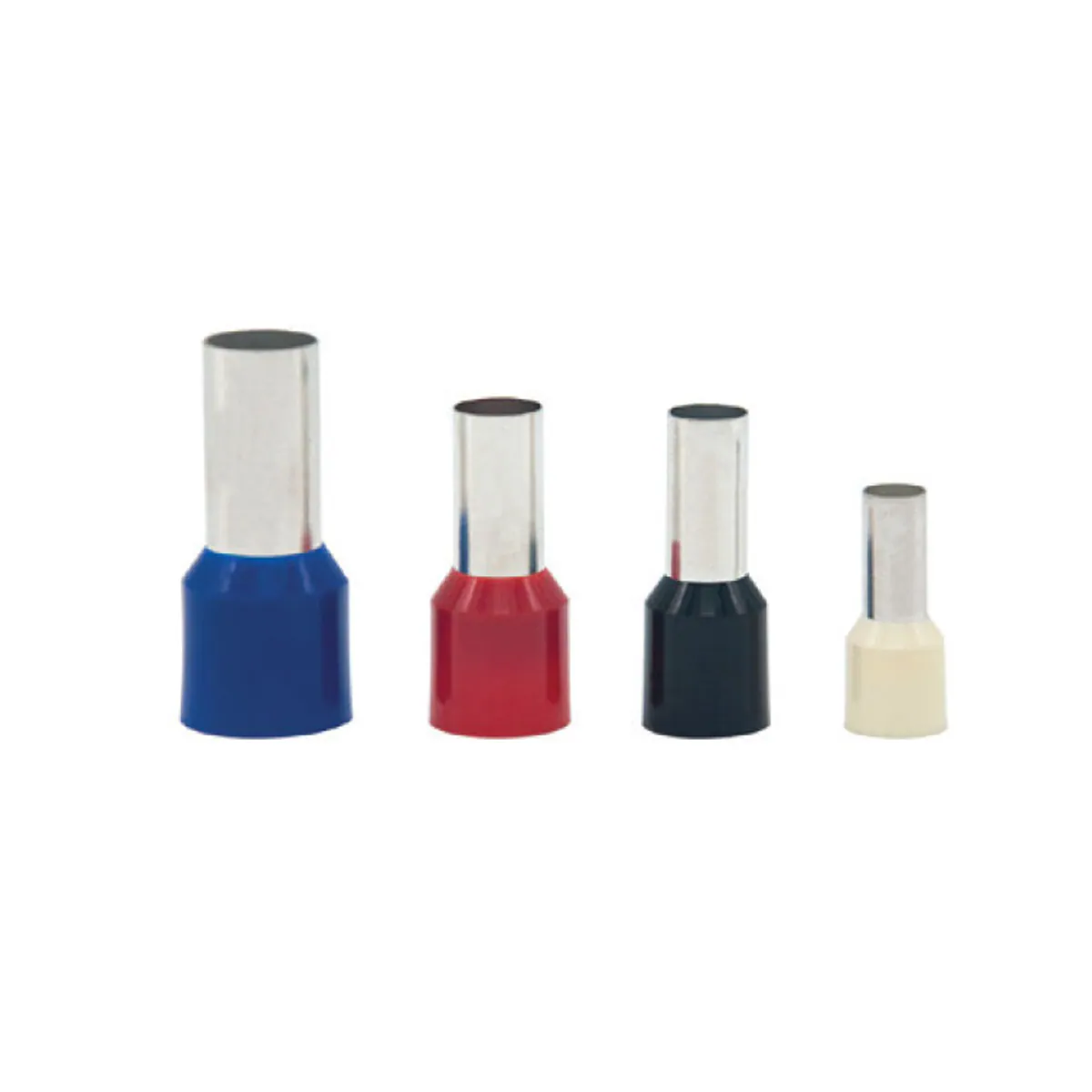

Gwest IYF - 1.0 French Standard Insulated Cable Ferrule — Red
- Brand: Gwest
- SKU: 2005
- MPN: IYF - 1.0
- Price: 273.00 TRY + VAT · incl. VAT 327.60 TRY
- Availability: In stock
- Insulated Single-Entry Ferrules
- Gwest Insulated Single-Entry Ferrules
- Selection guide: Insulated Single-Entry Ferrules Selection Guide: Technical Criteria and Engineering Practice
Gwest IYF - 1.0 French Standard Insulated Cable Ferrule. Key technical features - Cable Cross-Section: 1.00 mm² - Color: Red - Material: Copper, Tin-Plated - Insulation: Nylon - Operating Temperature: Maximum 105 °C - Voltage: 600 V - Standard: DIN 46228 - Ferrule Dimension B: 6.3 mm - Ferrule Dimension W: 3.0 mm - Ferrule Dimension L: 14.0 mm - Ferrule Dimension D: 1.7 mm - Ferrule Dimension F: 8.0 mm
| Voltage | 600 V |
|---|---|
| Cable Cross-Section | 1 mm² |
| Material | Bakır, Kalay Kaplı |
| Color | Red |
| Standard | DIN 46228 |
| Ferrule Dimension B | 6.3 mm |
| Ferrule Dimension D | 1.7 mm |
| Ferrule Dimension F | 8 mm |
| Ferrule Dimension L | 14 mm |
| Ferrule Dimension W | 3 mm |
| Operating Temperature | Maksimum 105 °C |
| Manufacturer Order Code | 2005 |
| Manufacturer Product Code | IYF - 1.0 |
| Product Type | Fransız Normu İzoleli Kablo Yüksüğü |
| Isolation | Naylon |
