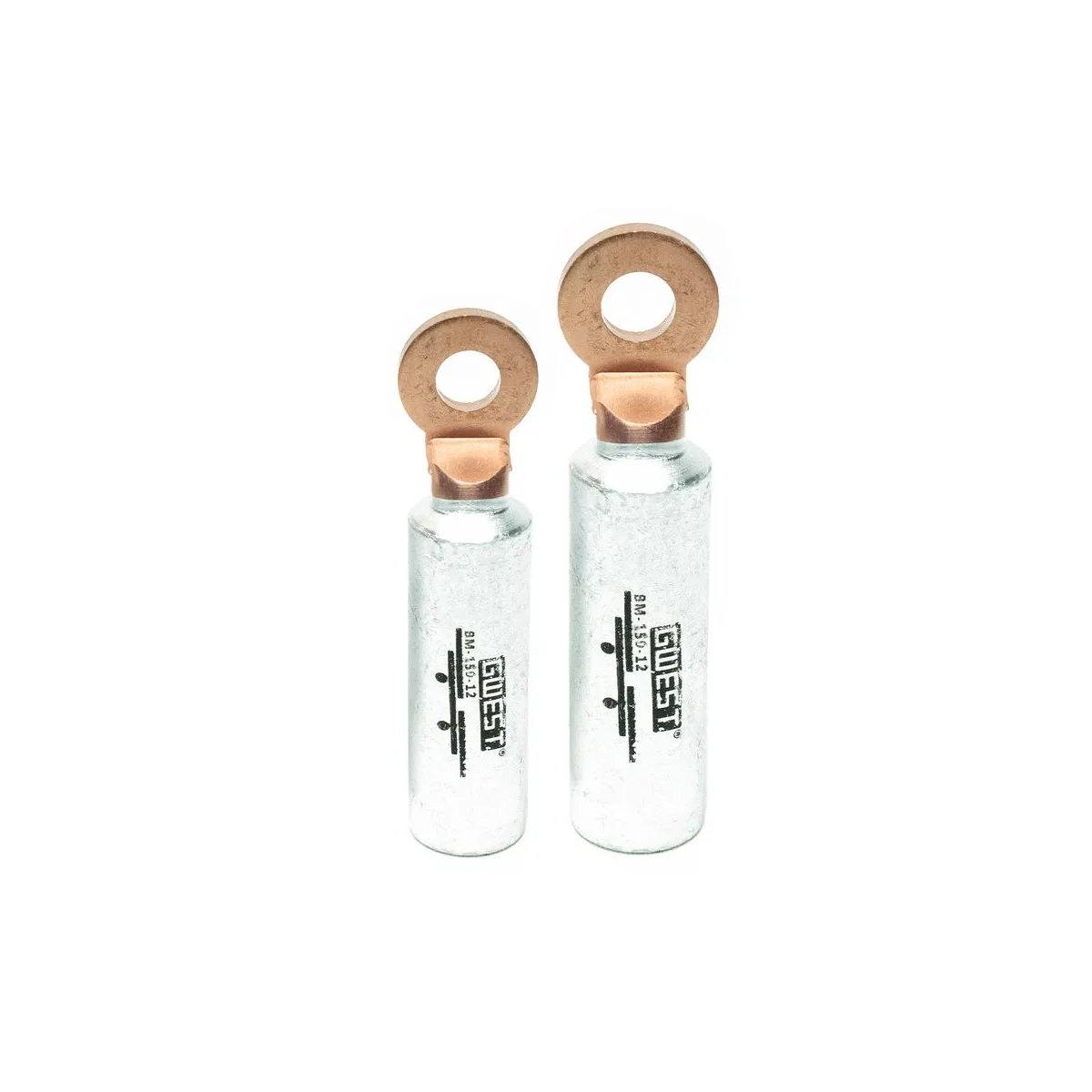

Gwest SKP-BM 240-12 Bimetal Al-Cu Cable Lug
- Brand: Gwest
- SKU: 7059
- MPN: SKP-BM 240-12
- Price: 5292.00 TRY + VAT · incl. VAT 6350.40 TRY
- Availability: In stock
- Bimetal Lugs
- Gwest Bimetal Lugs
- Selection guide: Bimetal Lugs Selection Guide: Technical Criteria and Engineering Practice
Gwest SKP-BM 240-12 Bimetal Al-Cu Cable Lug. Key technical features - Cable Cross-Section: 240 mm² - Hole Diameter: M12 - Material: 99.9% Aluminum and Copper - Operating Temperature: - 40 ° C – +100 ° C - Lug Inner Diameter (d): 21.5 mm - Lug Outer Diameter (D): 32 mm - Drawing Dimension L (mm): 130 mm - Drawing Dimension B (mm): 35 mm - Drawing Dimension L1 (mm): 65 mm - Tensile Grade: 110MPa
| Drawing Dimension B (mm) | 35 mm |
|---|---|
| Drawing Dimension L (mm) | 130 mm |
| Drawing Dimension L1 (mm) | 65 mm |
| Hole Diameter | M12 |
| Cable Cross-Section | 240 mm² |
| Material | %99.9 Alüminyum ve Bakır |
| Lug Outer Diameter (D) | 32 mm |
| Lug Inner Diameter (d) | 21.5 mm |
| Operating Temperature | - 40 ° C --- +100 ° C |
| Tensile Grade | 110MPa |
| Manufacturer Order Code | 7059 |
| Manufacturer Product Code | SKP-BM 240-12 |
| Product Type | Bimetal Al-Cu Kablo Pabucu |
