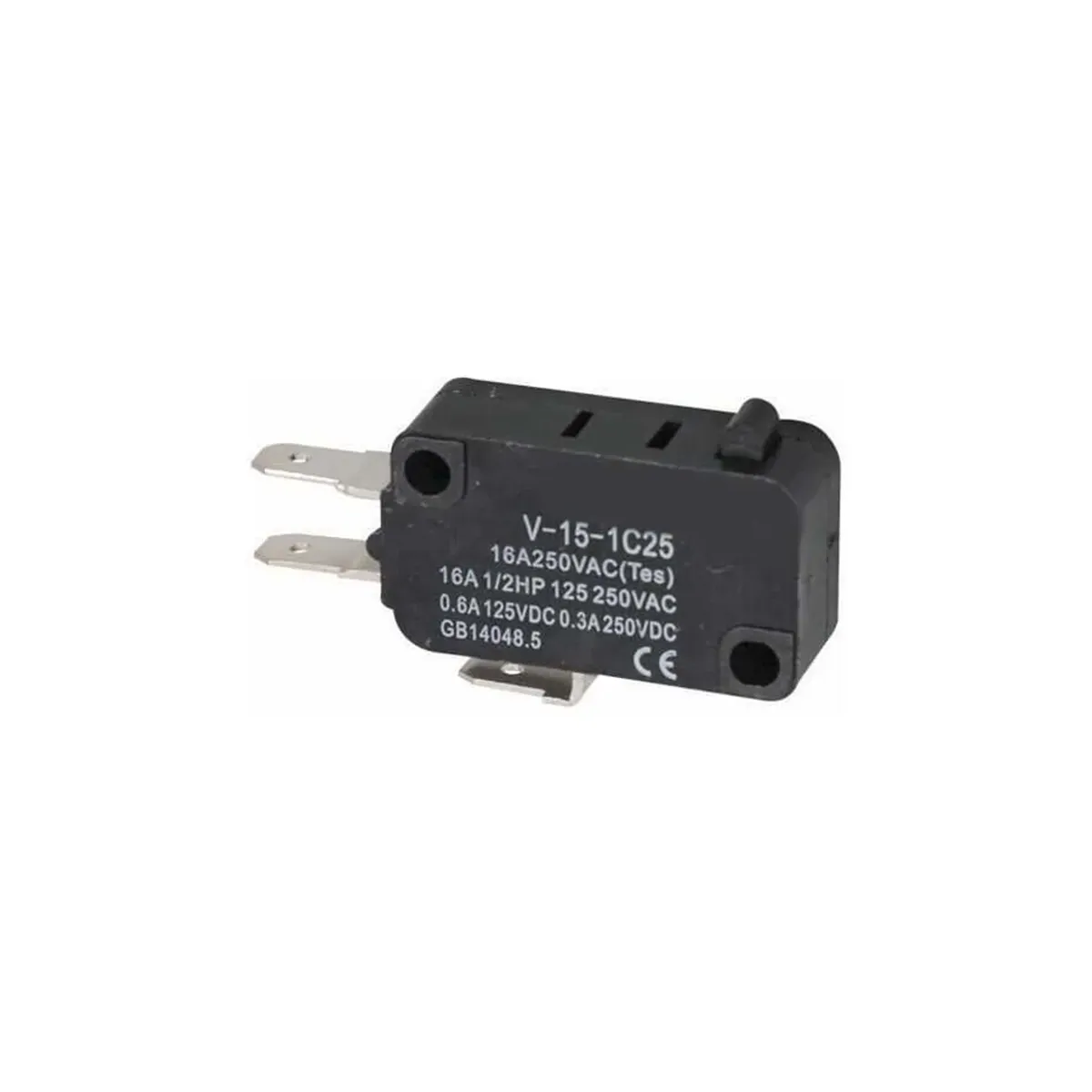

Isıso Button Pin Type Micro Switch
- Brand: Isıso
- SKU: V-15-1C25
- MPN: V-15-1C25
- Price: 25.47 TRY + VAT · incl. VAT 30.56 TRY
- Availability: In stock
- Micro and Miniature Switches
- Isıso Micro and Miniature Switches
- Selection guide: Micro and Miniature Switches Selection Guide: Technical Criteria and Engineering Practice
Isıso Button Pin Type Micro Switch. Push buttons, switches, pedals and selector switches are operator devices that control the machine locally. Technical values: Switch Roller Type Thin Plunger, Switch Type Micro Switches. Stock code: V-15-1C25.
| Switch Roller Type | İnce Pimli |
|---|---|
| Switch Type | Mikro Switchleri |
| Operating Temperature | -10°C ~ +65°C (Buzlanma olmamalıdır) |
| Contact Resistance | ≤ 15 mΩ (ilk değer) |
| Insulation Resistance | ≥ 100MΩ (500VDC'de) |
| Electrical Endurance | 300,000'den fazla işlem |
| Operating Force (Max.) | 1.96N |
| Release Force (Min.) | 0.49 N |
| Operating Position (OP) | 14.7±0.4mm |
