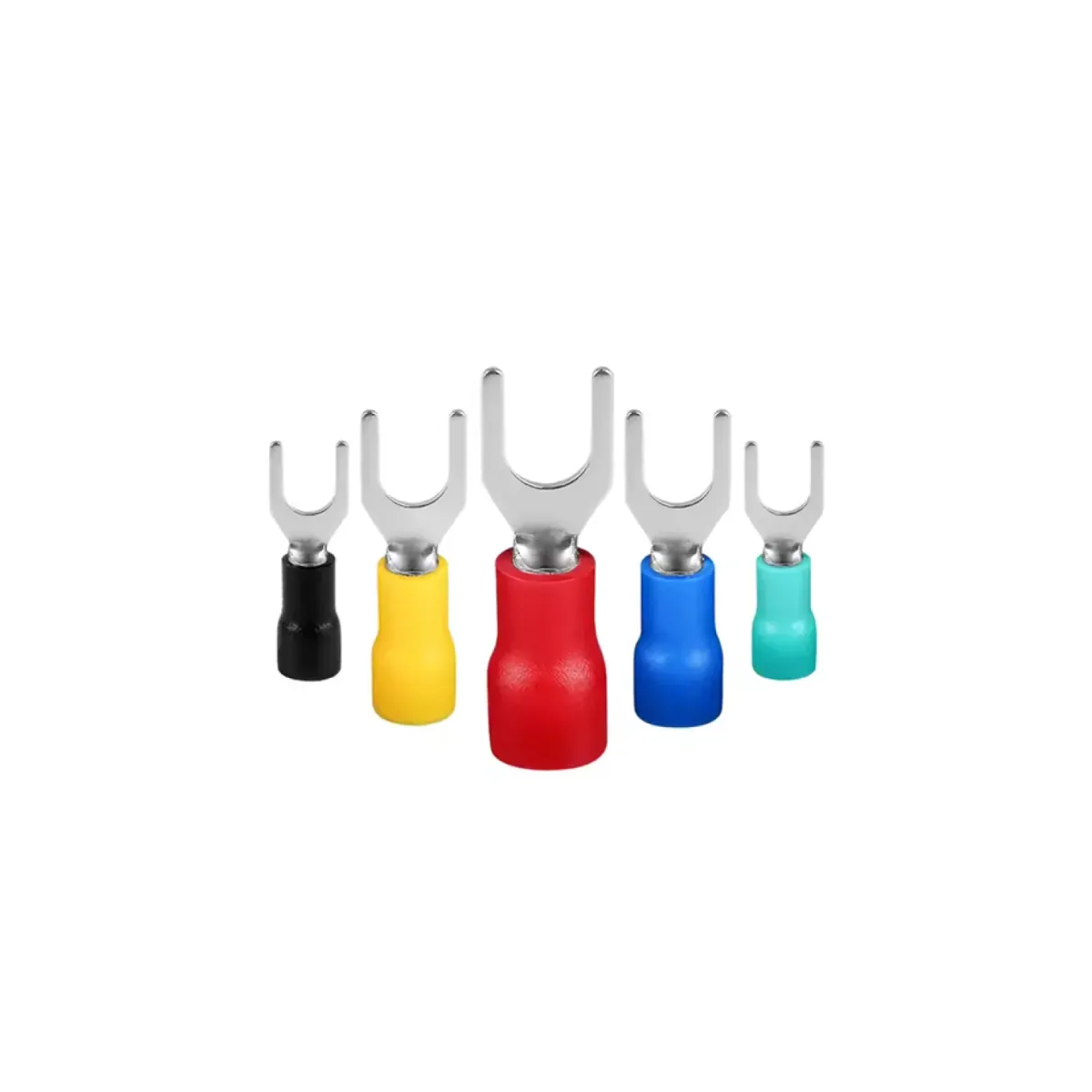

Isıso SV 2-5 Fork Type Insulated Cable Terminal, 1.50-2.50 mm2, M5
- Brand: Isıso
- SKU: SV 2-5
- MPN: SV 2-5
- Price: 228.40 TRY + VAT · incl. VAT 274.08 TRY
- Availability: In stock
- Fork Type Insulated Cable Terminals
- Isıso Fork Type Insulated Cable Terminals
- Selection guide: Fork Type Insulated Cable Terminals Selection Guide: Technical Criteria and Engineering Practice
Isıso SV 2-5, fork-type insulated cable terminal (1.50-2.50 mm2, M5). Technical specifications: Cable Cross-Section: 1.50-2.50 mm2; Bolt Size: M5; Color: Blue; Terminal Dimension d2: 5.3 mm; Terminal Dimension d3: 10.0 mm; Terminal Dimension I: 19.0 mm; Terminal Dimension d1: 2.3 mm; Terminal Dimension d4: 4.5 mm; Terminal Dimension a: 10.0 mm. The product is sold in boxes of 200. Stock code: SV 2-5.
| Color | Blue |
|---|---|
| Cable Cross-Section | 1.5–2.5 mm² |
| Bolt Size | M5 |
| Terminal Dimension d1 | 2.3 mm |
| Terminal Dimension d2 | 5.3 mm |
| Terminal Dimension a | 10 mm |
| Terminal Dimension d4 | 4.5 mm |
| Terminal Dimension I | 19 mm |
| Terminal Dimension d3 | 10 mm |
