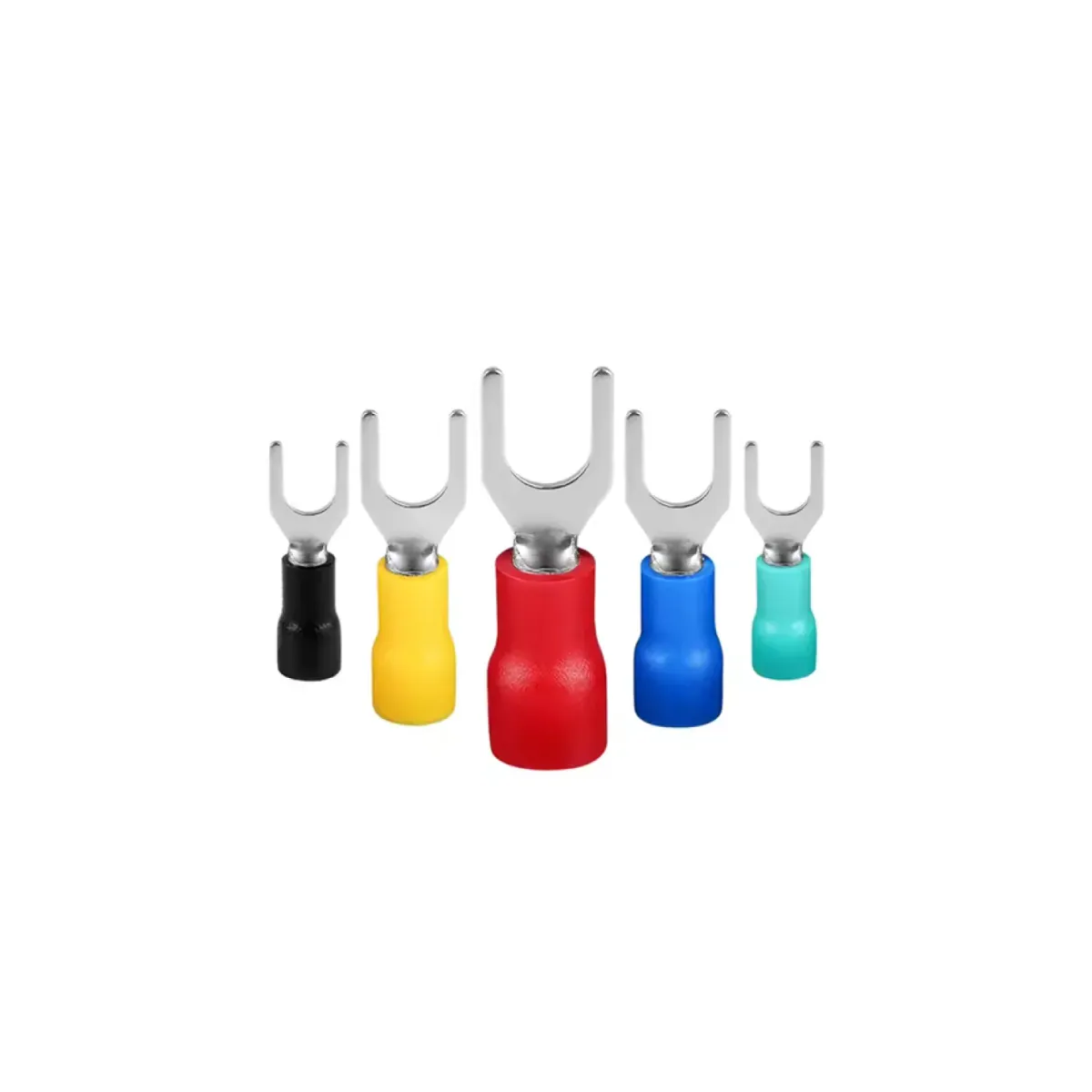

Isıso SV 5.5-4 Fork Type Insulated Cable Terminal, 4.0-6.0 mm2, M4
- Brand: Isıso
- SKU: SV 5,5-4
- MPN: SV 5,5-4
- Price: 238.30 TRY + VAT · incl. VAT 285.96 TRY
- Availability: In stock
- Fork Type Insulated Cable Terminals
- Isıso Fork Type Insulated Cable Terminals
- Selection guide: Fork Type Insulated Cable Terminals Selection Guide: Technical Criteria and Engineering Practice
Isıso SV 5.5-4, fork-type insulated cable terminal (4.0-6.0 mm2, M4). Technical specifications: Cable Cross-Section: 4.0-6.0 mm2; Bolt Size: M4; Color: Yellow; Terminal Dimension d2: 4.3 mm; Terminal Dimension d3: 8.0 mm; Terminal Dimension I: 21.0 mm; Terminal Dimension d1: 3.6 mm; Terminal Dimension d4: 13.0 mm; Terminal Dimension a: 10.0 mm. The product is sold in boxes of 100. Stock code: SV 5,5-4.
| Color | Yellow |
|---|---|
| Cable Cross-Section | 4–6 mm² |
| Bolt Size | M4 |
| Terminal Dimension d1 | 3.6 mm |
| Terminal Dimension d2 | 4.3 mm |
| Terminal Dimension a | 10 mm |
| Terminal Dimension d4 | 13 mm |
| Terminal Dimension I | 21 mm |
| Terminal Dimension d3 | 8 mm |
