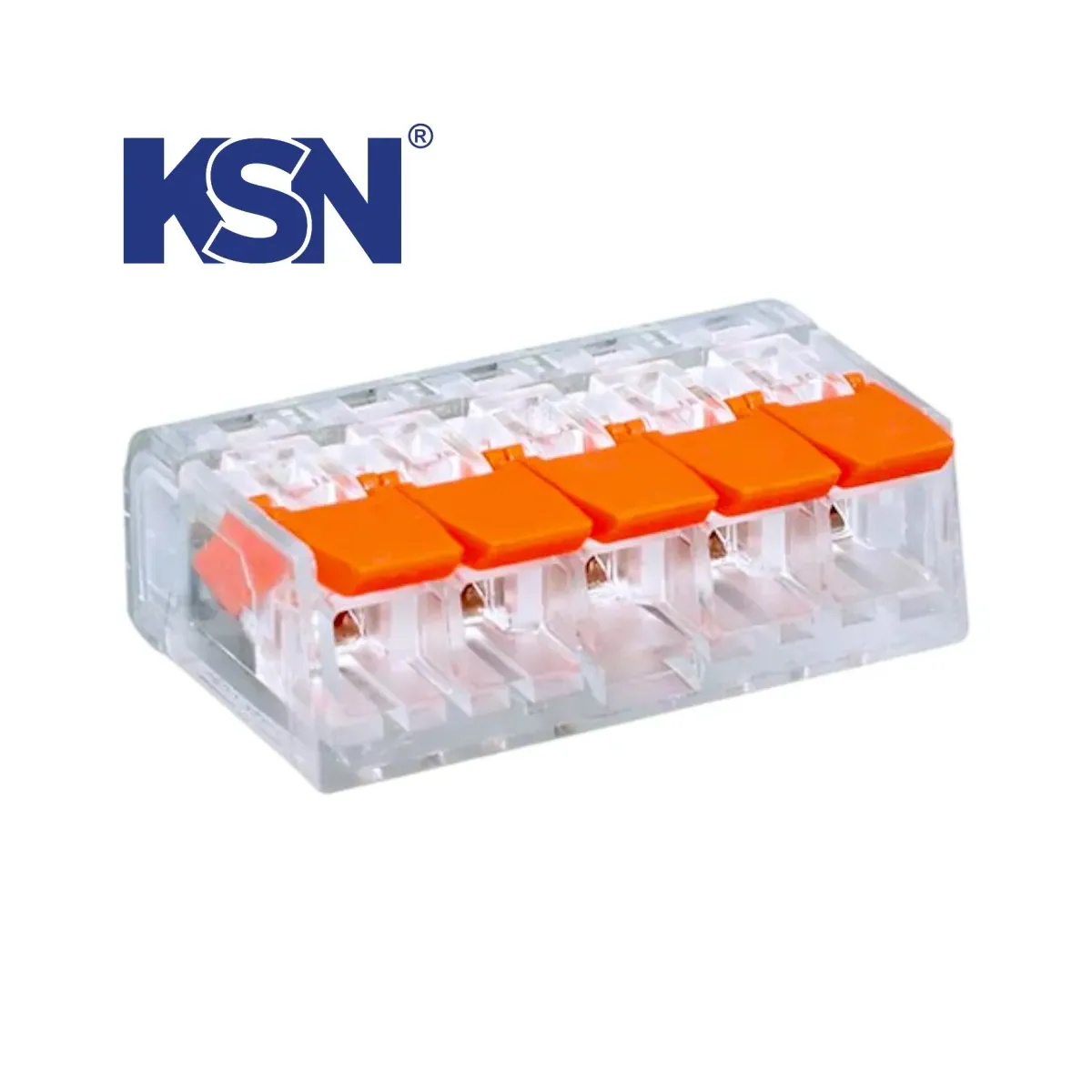

KSN-415 221 Series Compact Multipurpose Terminal Block with 5-Conductor Connection 5x4 mm2
- Brand: KSN
- SKU: KSN3353
- MPN: KSN-415
- Price: 29.19 TRY + VAT · incl. VAT 35.03 TRY
- Availability: In stock
- Tabbed Junction Box Terminal Blocks
- KSN Tabbed Junction Box Terminal Blocks
- Selection guide: Tabbed Junction Box Terminal Blocks Selection Guide: Technical Criteria & Application Standards
KSN-415 is a 221 series compact multipurpose terminal block with a connection capacity of 5x4 mm², used to connect 5 conductors to each other. The catalog gives nominal current 32 A, nominal voltage 450 V, continuous operating temperature of max. 105 °C and ambient temperature of max. 85 °C (T85). Cable cross-section is written as 0.14–4 mm² (24–12 AWG) and 0.2–4 mm² (24–12 AWG); the catalog states that it is suitable for high temperatures and can be used with all cable types. The catalog lists a box quantity of 25 for the product; the product is sold by the piece. Used for conductor splice connections in junction boxes and inside panels.
| Number of Conductors | 5 |
|---|---|
| Connecting Capacity | 5x4 mm² |
| Cable Cross-Section | 0,14–4 mm² (24–12 AWG) ve 0,2–4 mm² (24–12 AWG) |
| Rated Current | 32 A |
| Rated Voltage | 450 V |
| Continuous Operating Temperature | Max. 105 °C |
| Ambient Temperature | Max. 85 °C (T85) |
| Features | Yüksek sıcaklıklar için; tüm kablo çeşitleri için |
