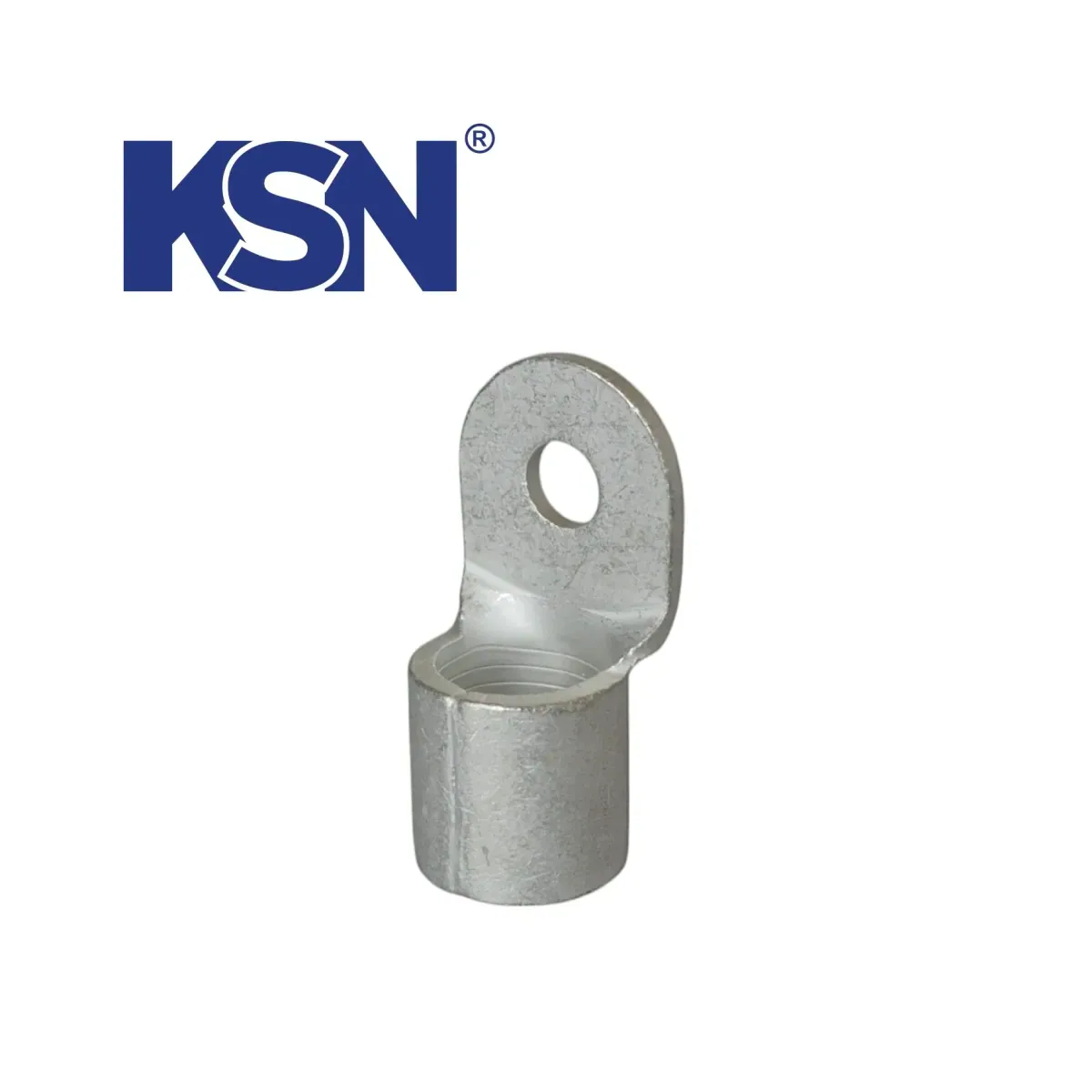

KSN-DR-6-70NB DIN 46234 Round Welded Cable Lug 70 mm2 M6
- Brand: KSN
- SKU: KSN3536
- MPN: KSN-DR-6-70NB
- Price: 2584.50 TRY + VAT · incl. VAT 3101.40 TRY
- Availability: In stock
- Welded Type Cable Lugs
- KSN Welded Type Cable Lugs
- Selection guide: Welded Type Cable Lugs Selection Guide: Technical Criteria and Engineering Practice
KSN-DR-6-70NB is a round (welded) cable lug manufactured to DIN 46234, used to connect conductors with a 70 mm² cross-section to M6 bolted connection points. Housing material is Cu-ETP and its surface is tin-plated. The catalog states that the crimping area is brazed and that it has a grooved profile for improved crimping. Dimensions according to the catalog dimension drawing: d3 22 mm, length from hole center to tip (L) 38 mm, a 18 mm, c 21 mm, inner diameter (d1) 13 mm, thickness (S) 2 mm. The product is listed in the catalog as a box of 50; sales are made in quantities of 50 and multiples. Used as a bolt-fastened cable lug in panel, motor and busbar connections.
| Cable Lug Size | 70 mm² |
|---|---|
| Cable Lug Hole Size | M6 |
| Cable Lug Type | Kaynaklı Tip |
| Standard | DIN 46234 |
| Material | Cu-ETP |
| Surface coating | Kalay kaplı |
| Features | DIN 46234 e göre üretilmiştir; Sıkma alanında sert lehimli; Gelişmiş sıkma özellikleri için oluklu profil |
| Lug Head Diameter (d3) | 22 mm |
| Length | 38 mm |
| Crimping Zone Length (a) | 18 mm |
| Crimping Zone Outer Diameter (c) | 21 mm |
| Inner Diameter | 13 mm |
| Thickness | 2 mm |
