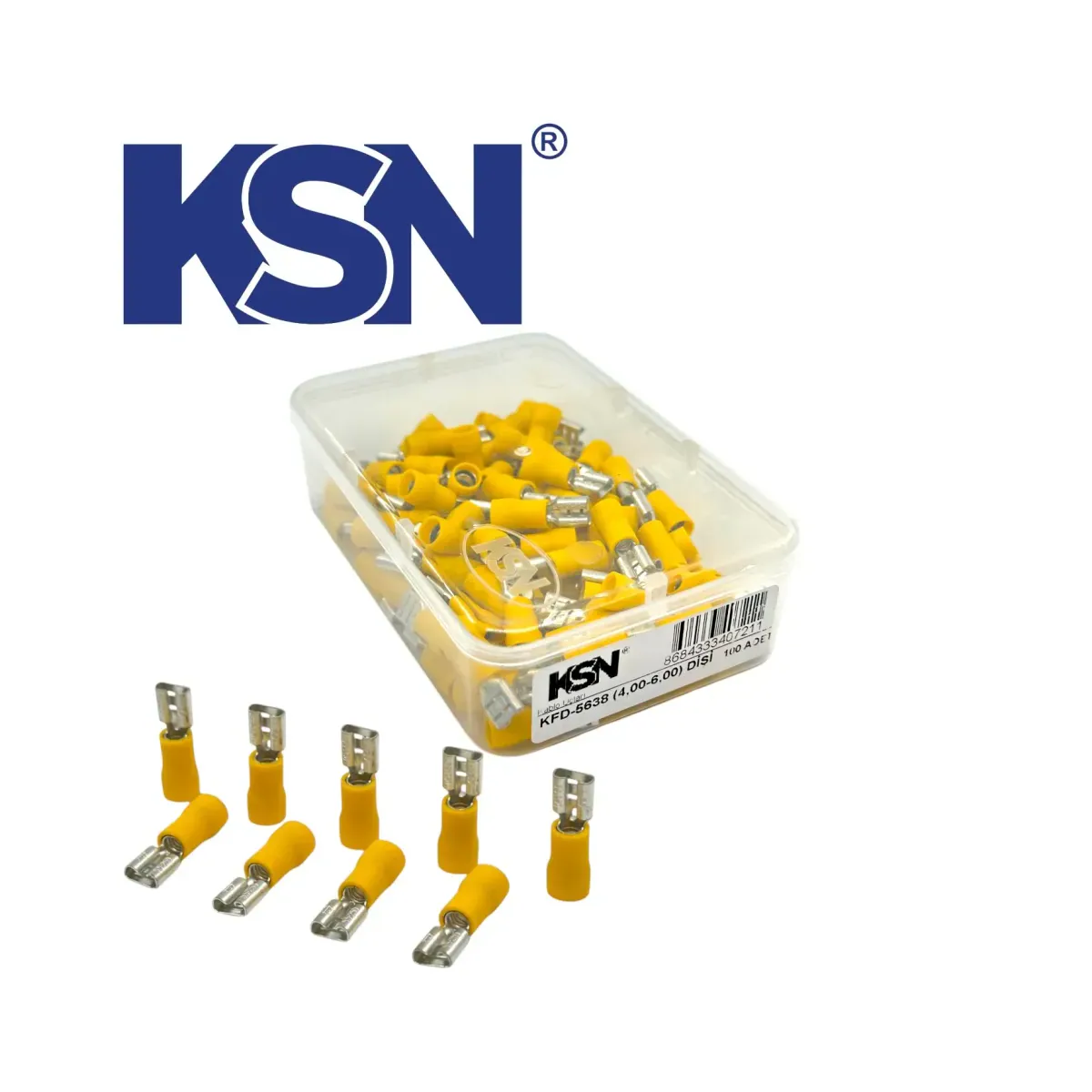

KSN KFD-5956 Female Faston Insulated Terminal 1.2 x 9.40 mm 4-6 mm2 Yellow
- Brand: KSN
- SKU: KSN3169
- MPN: KFD-5956
- Price: 630.00 TRY + VAT · incl. VAT 756.00 TRY
- Availability: In stock
- Female Terminals
- KSN Female Terminals
- Selection guide: Female Terminals Selection Guide: Technical Criteria and Engineering Practice
The KSN KFD-5956 is a yellow PVC-insulated female Faston-type terminal used to fit conductors with a 4-6 mm² (12-10 AWG) cross-section onto 1.2 x 9.40 mm male Faston tabs. Housing material is tin-plated brass and a copper ferrule (the catalog emphasizes an 'extra copper ferrule'); insulation is PVC. The catalog gives a maximum operating temperature of 75 °C and a voltage of 300 V. Dimensions according to the catalog dimension drawing: B 10.0 mm, D 6.2 mm, inner diameter (d) 3.4 mm, total length (L) 28.6 mm, H 13.0 mm. The product is listed in the catalog as a box of 100; sales are made in quantities of 100 and multiples. Crimped onto the conductor end for use in faston socket connections.
| Cable Terminal Type | Faston Tip |
|---|---|
| Connection Type | Dişi Faston |
| Ferrule Size | 4–6 mm |
| Ferrule/Lug Insulation | İzoleli |
| Color | Yellow |
| Cable Cross-Section | 4,00 - 6,00 mm² / 12 ~ 10 AWG |
| Socket Width | 1,2 x 9,40 mm |
| Material | Pirinç, Kalay Kaplı, Bakır Yüksüklü |
| Isolation | PVC |
| Operating Temperature | Maksimum 75 °C |
| Voltage | 300 V |
| Dimension B | 10 mm |
| Dimension D | 6.2 mm |
| Inner Diameter | 3.4 mm |
| Length | 28.6 mm |
| Dimension H | 13 mm |
| Features | Ekstra bakır yüksük |
