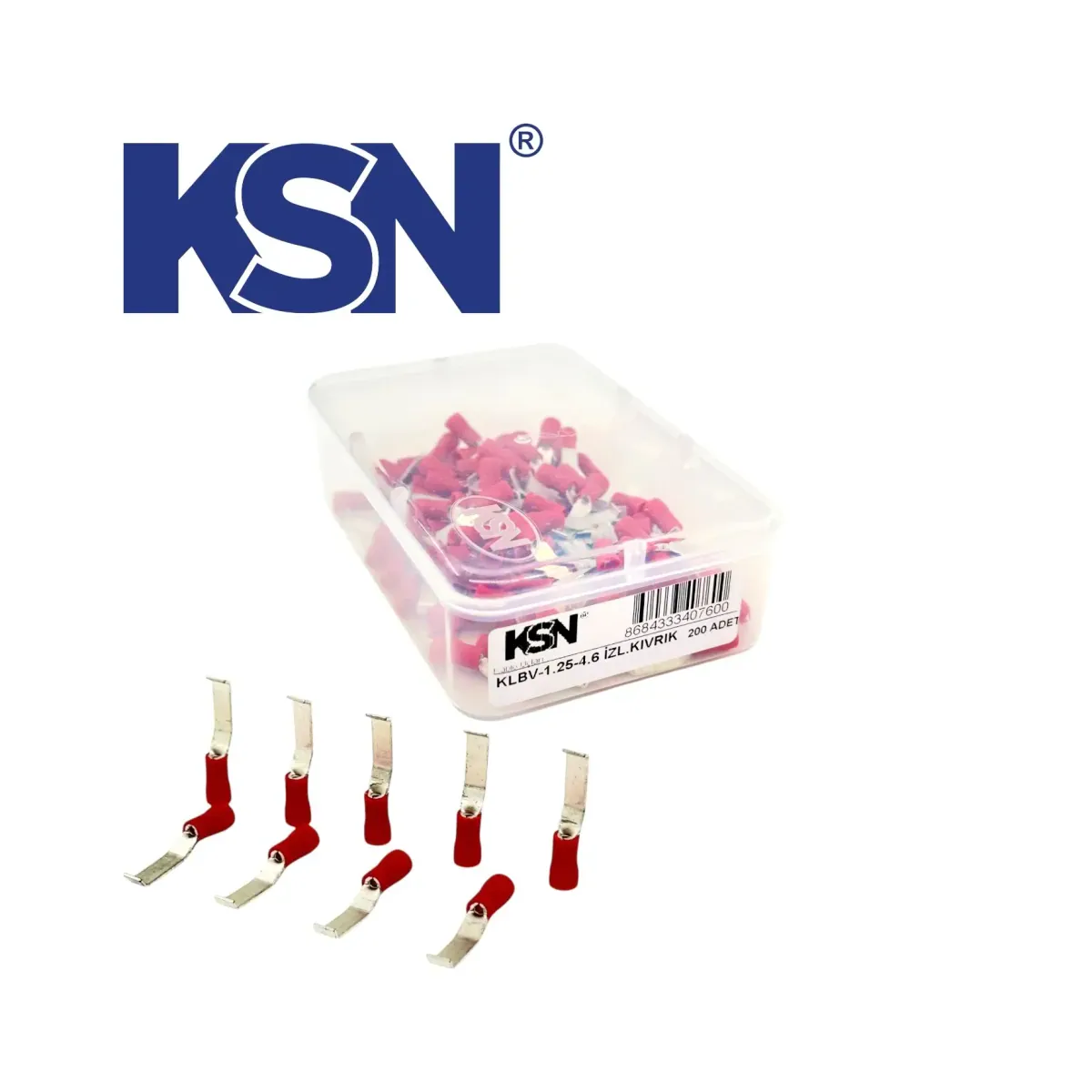

KSN KLBV-1.25-3 Insulated Blade Terminal with Bent End 0.5-1.5 mm2 Red
- Brand: KSN
- SKU: KSN3270
- MPN: KLBV-1.25-3
- Price: 453.60 TRY + VAT · incl. VAT 544.32 TRY
- Availability: In stock
- Blade Type Insulated Cable Terminals
- Selection guide: Insulated Cable Terminals Selection Guide: Technical Criteria and Engineering Practice
The KSN KLBV-1.25-3 is a red, PVC-insulated, bent-end blade-type terminal used to connect conductors with a 0.5-1.5 mm² (22-16 AWG) cross-section to blade (flat-end) connections. Body material is tin-plated copper; insulation is PVC, and the catalog gives a maximum operating temperature of 105 °C and a voltage of 600 V. Dimensions according to the catalog dimension drawing: B 3.0 mm, total length (L) 26.8 mm, F 16.8 mm, H 10.0 mm, D 4.3 mm. The product is listed in the catalog as a box of 200; sales are made in quantities of 200 and multiples. Used for connection to blade terminals in panels and control circuits.
| Cable Terminal Type | Ucu Kıvrık Bıçak Tip |
|---|---|
| Ferrule Size | 0.5–1.5 mm |
| Ferrule/Lug Insulation | İzoleli |
| Color | Red |
| Cable Cross-Section | 0,50 - 1,50 mm² / 22 ~ 16 AWG |
| Material | Bakır, Kalay Kaplı |
| Isolation | PVC |
| Operating Temperature | Maksimum 105 °C |
| Voltage | 600 V |
| Dimension B | 3 mm |
| Length | 26.8 mm |
| Dimension F | 16.8 mm |
| Dimension H | 10 mm |
| Dimension D | 4.3 mm |
