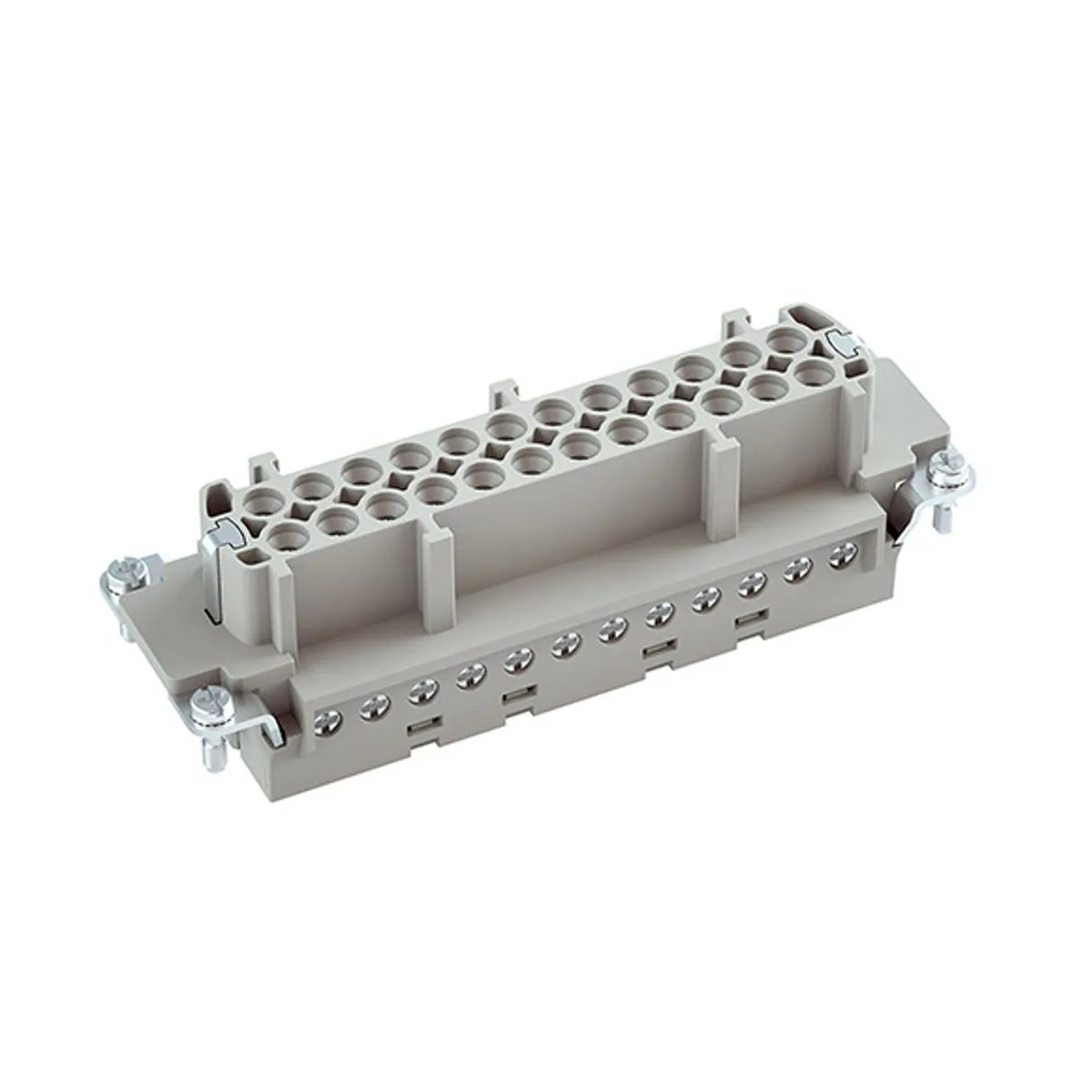

Mete Enerji 29024 24x16A Multi-Pole Socket, Insert-Mounted
- Brand: Mete Enerji
- SKU: 29024
- MPN: 29024
- Price: 439.35 TRY + VAT · incl. VAT 527.22 TRY
- Availability: In stock
- Connector Inserts
- Mete Enerji Connector Inserts
- Selection guide: Connector Inserts Selection Guide: Technical Criteria and Engineering Practice
Mete Enerji 29024 24x16A Multi-Pole Socket, Insert-Mounted; features 16 A rated current, 24P+E contact arrangement, screw connection and 1.0 ... 2.5 mm² conductor cross-section. It is a product of the Mete Enerji METECON multi-contact plug and socket series.
| Rated Current | 16 A |
|---|---|
| Number of Contacts | 24 |
| Operating Temperature | -40 ... +125 °C |
| RoHS | Compliant with exemption |
| Certifications | UL | cUL | TSE |
| Country of Origin | Turkey |
| Connection Type | Screw |
| Product Type | Socket |
| Mating Cycles | ≥ 500 |
| Series | E Serisi |
| Conductor Cross-Section | 1–2.5 mm² |
| UL Rated Voltage | 600 V |
| Applicable Standards | IEC 61984 / UL 1977 |
| Pollution Degree | 3 |
| Stripping Length | 7 mm |
| Insert Colour | Grey - RAL 7044 |
| Flammability Class | V-0 |
| Compatible Housing Type | 24B |
| Rated Impulse Voltage | 6 kV |
| Contact Configuration | 24P+E |
| Contact Material | Brass (Silver-plated) |
| Insert Material | PBT |
| Cable Entry | Rear |
| Contact Resistance | ≤ 1 mΩ |
| AWG | 18-14 |
| Conductor-to-Conductor Voltage | 400 V |
| Tightening Torque | 0.5 Nm |
