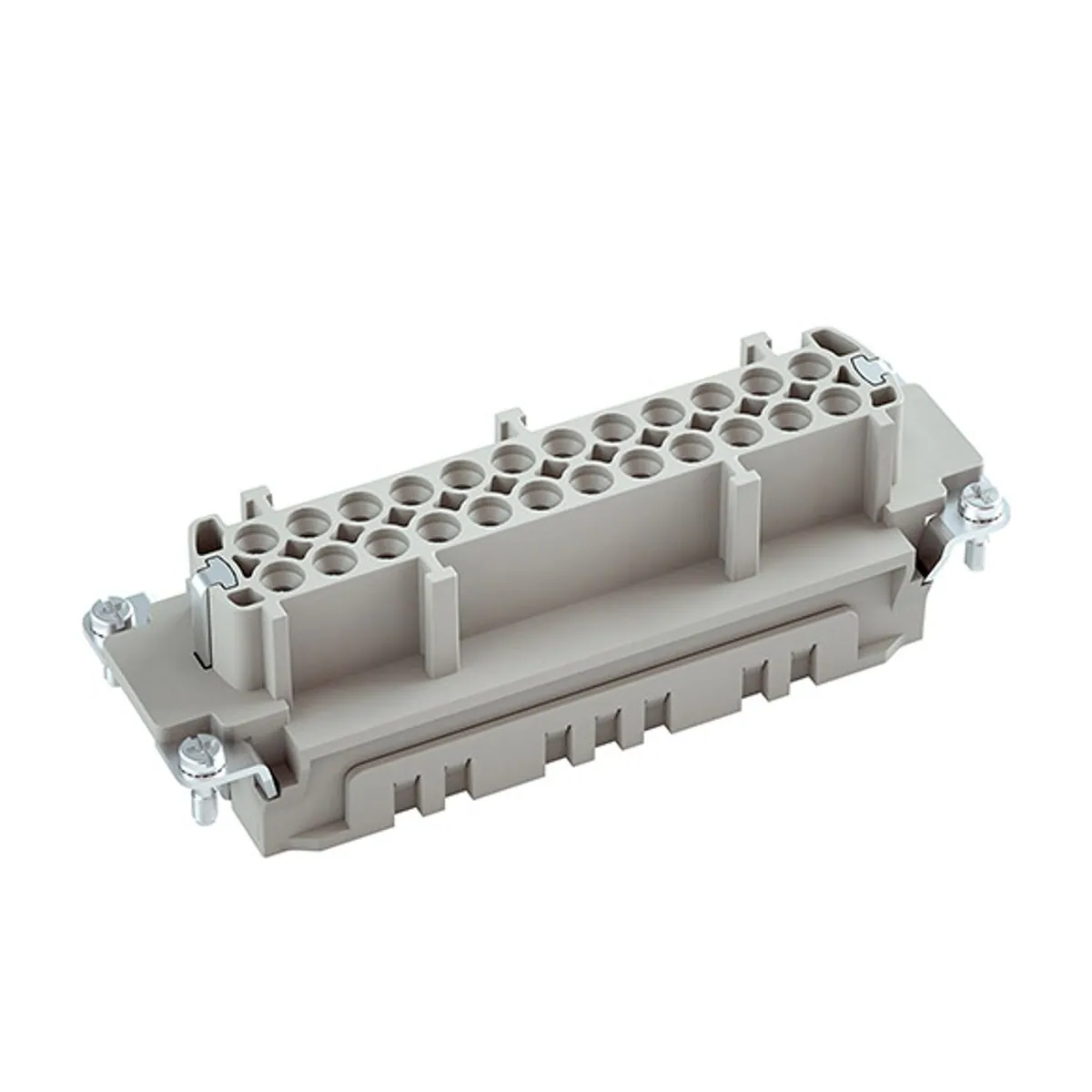

Mete Enerji 290282048 48x16A Multi-Pole Socket, Insert-Mounted, Spring-Type

Mete Enerji 290282048 48x16A Multi-Pole Socket, Insert-Mounted, Spring-Type

Mete Enerji 290282048 48x16A Multi-Pole Socket, Insert-Mounted, Spring-Type; it features 16 A rated current, 48P+E contact arrangement, spring connection and a 0.14 ... 2.5 mm² conductor cross-section. This It is a product of the Mete Enerji METECON multi-contact plug and socket series.

Rated Current16 A
Number of Contacts48
Operating Temperature-40 ... +120 °C
RoHSCompliant with exemption
CertificationsUL | cUL | TSE
Country of OriginTurkey
Connection TypeSpring-clamp
Product TypeSocket
Mating Cycles≥ 500
SeriesE Serisi
Conductor Cross-Section0.14–2.5 mm²
UL Rated Voltage600 V
Applicable StandardsIEC 61984 / UL 1977
Pollution Degree3
Stripping Length9–11 mm
Insert ColourGrey - RAL 7044
Flammability ClassV-0
Compatible Housing Type48B
Rated Impulse Voltage6 kV
Contact Configuration48P+E
Contact MaterialBrass (Silver-plated)
Insert MaterialPBT / PC
Cable EntryRear
Contact Resistance≤ 1 mΩ
AWG18-14
Conductor-to-Conductor Voltage400 V
Tightening Torque0.5 Nm
