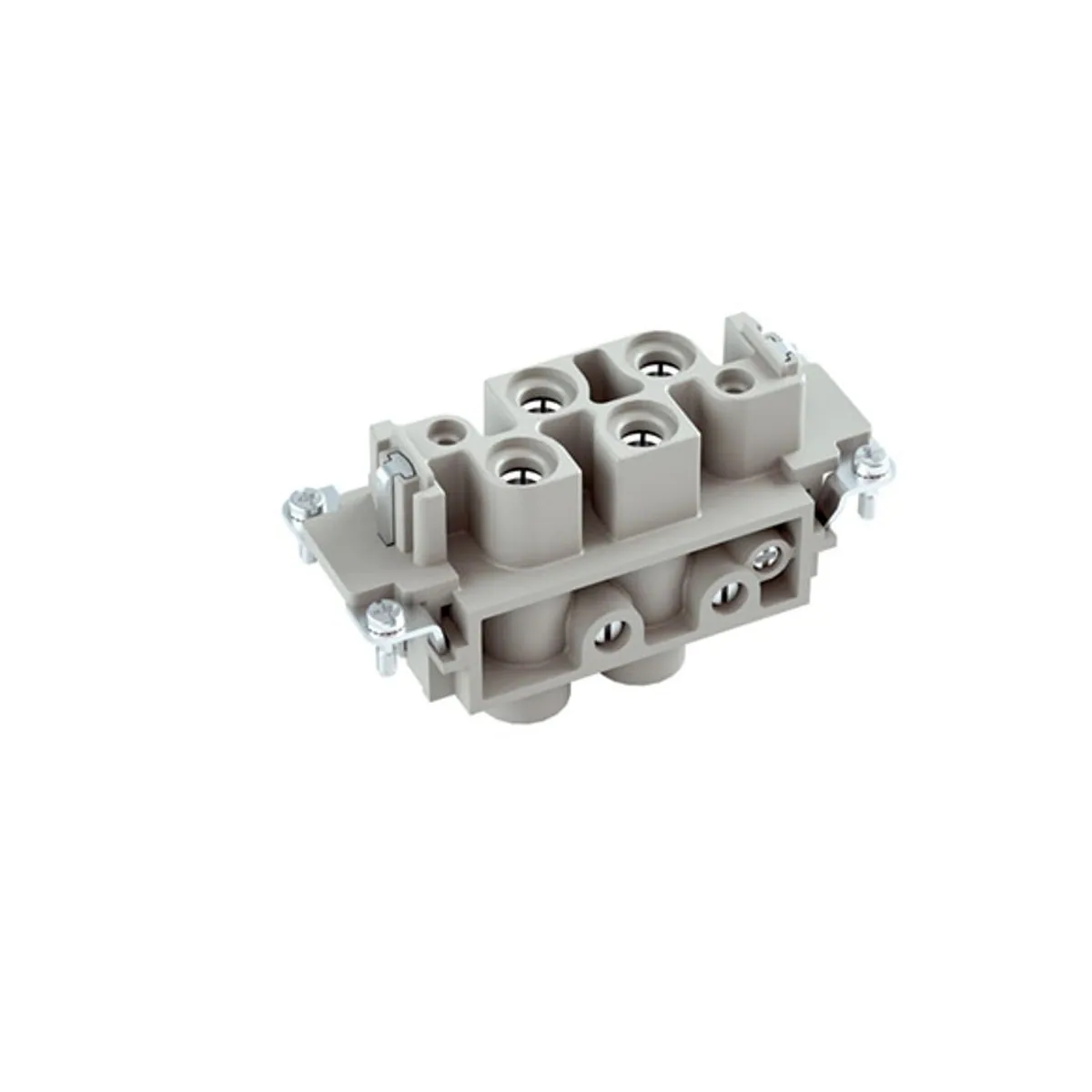

Mete Enerji 29116 4/2x80/16A Multi-Contact Socket, Contact Insert Assembly (1-6)
- Brand: Mete Enerji
- SKU: 29116
- MPN: 29116
- Price: 900.20 TRY + VAT · incl. VAT 1080.24 TRY
- Availability: In stock
- Connector Inserts
- Mete Enerji Connector Inserts
- Selection guide: Connector Inserts Selection Guide: Technical Criteria and Engineering Practice
Mete Enerji 29116 4/2x80/16A Multi-Contact Socket, Contact Insert Assembly (1-6); 80/16 A rated current, 4P+2P+E contact arrangement, screw connection and 80 A : 1.5 ... 16 mm² | 16 A : 0.5 ... 2.5 mm² conductor cross-sections. This product belongs to the Mete Enerji METECON multi-contact plug and socket series.
| Rated Current | 80/16 A |
|---|---|
| Number of Contacts | 4/2 |
| Operating Temperature | -40 ... +125 °C |
| RoHS | Compliant with exemption |
| Certifications | UL | cUL | TSE |
| Country of Origin | Turkey |
| Connection Type | Screw |
| Product Type | Socket |
| Mating Cycles | ≥ 500 |
| Series | K Serisi |
| Conductor Cross-Section | 80 A : 1.5 ... 16 mm² | 16 A : 0.5 ... 2.5 mm² |
| UL Rated Voltage | 80 A : 600 V [UL] / 300 V [CSA] | 16 A : 600 V [UL] / 600 V [CSA] |
| Applicable Standards | IEC 61984 / UL 1977 |
| Pollution Degree | 3 |
| Stripping Length | 14 mm, Signal: 7 mm |
| Insert Colour | Grey - RAL 7044 |
| Flammability Class | V-0 |
| Compatible Housing Type | 16B |
| Rated Impulse Voltage | 8kV Sinyal: 6kV |
| Contact Configuration | 4P+2P+E |
| Contact Material | Brass (Silver-plated) |
| Insert Material | PBT |
| Cable Entry | Rear |
| Contact Resistance | ≤ 1 mΩ |
| AWG | 1.5 | 2.5 | 4 | 6 | 10| 16 |
| Conductor-to-Conductor Voltage | 830 V, Sinyal: 400 V |
| Tightening Torque | 1.2 | 2 | 3 | 3 | 3 | 3 |
