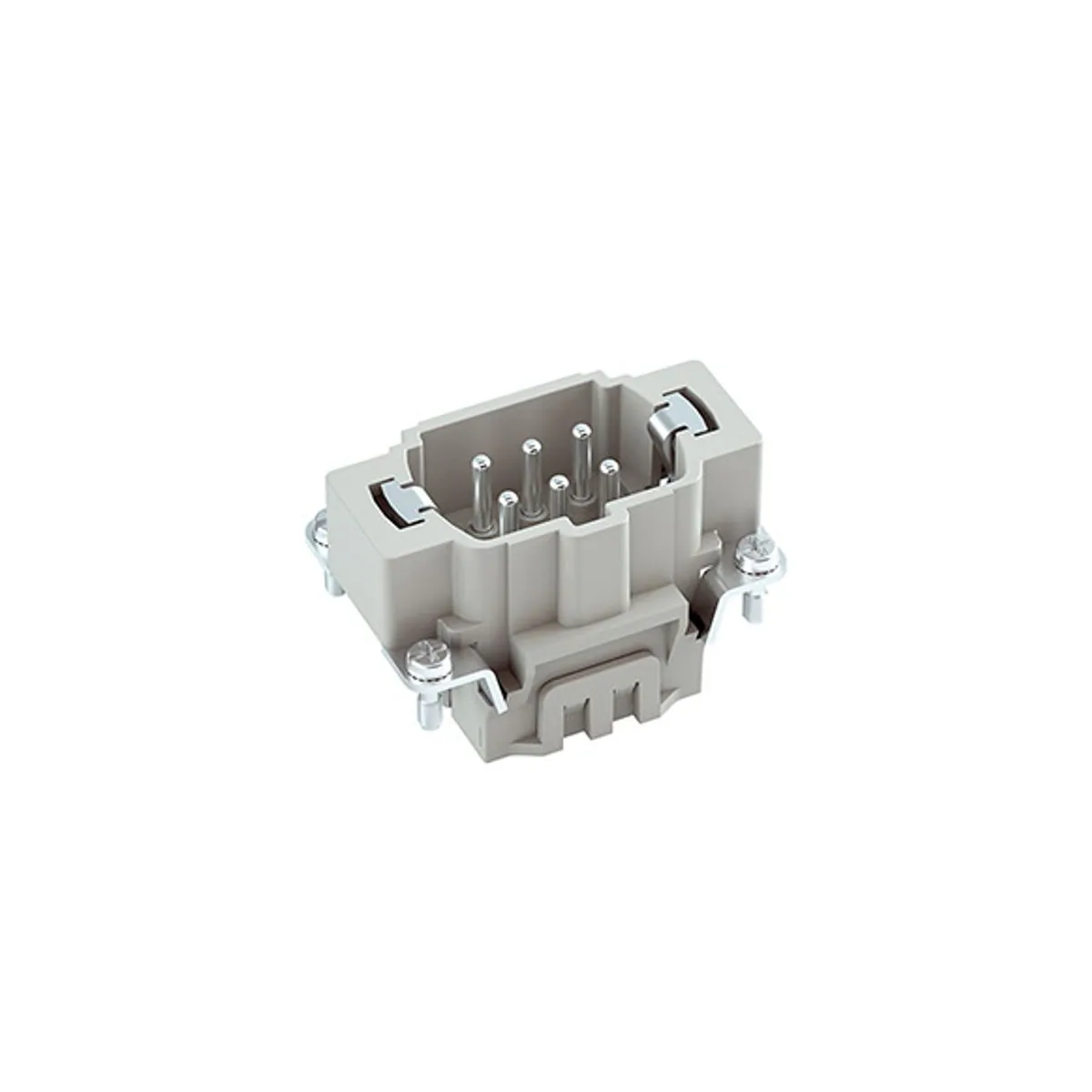

Mete Enerji 291212006 6x16A Plug Core-Mounted Spring
- Brand: Mete Enerji
- SKU: 291212006
- MPN: 291212006
- Price: 258.60 TRY + VAT · incl. VAT 310.32 TRY
- Availability: In stock
- Connector Inserts
- Mete Enerji Connector Inserts
- Selection guide: Connector Inserts Selection Guide: Technical Criteria and Engineering Practice
Mete Enerji 291212006 6x16A Plug Core-Mounted Spring; it features 16 A rated current, 6P+E contact arrangement, spring connection and 0.14 ... 2.5 mm² conductor cross-section. This Mete Enerji product belongs to the METECON multi-contact plug and socket series.
| Rated Current | 16 A |
|---|---|
| Number of Contacts | 6 |
| Operating Temperature | -40 ... +120 °C |
| RoHS | Compliant with exemption |
| Certifications | UL | TSE |
| Country of Origin | Turkey |
| Connection Type | Spring-clamp |
| Product Type | Fiş |
| Mating Cycles | ≥ 500 |
| Series | E Serisi |
| Conductor Cross-Section | 0.14–2.5 mm² |
| UL Rated Voltage | 600 V |
| Applicable Standards | IEC 61984 / UL 1977 |
| Pollution Degree | 3 |
| Stripping Length | 9–11 mm |
| Insert Colour | Grey - RAL 7044 |
| Flammability Class | V-0 |
| Compatible Housing Type | 6B |
| Rated Impulse Voltage | 6 kV |
| Contact Configuration | 6P+E |
| Contact Material | Brass (Silver-plated) |
| Insert Material | PBT / PC |
| Cable Entry | Rear |
| Contact Resistance | ≤ 1 mΩ |
| AWG | 26-14 |
| Conductor-to-Conductor Voltage | 400 V |
| Tightening Torque | 0.5 Nm |
