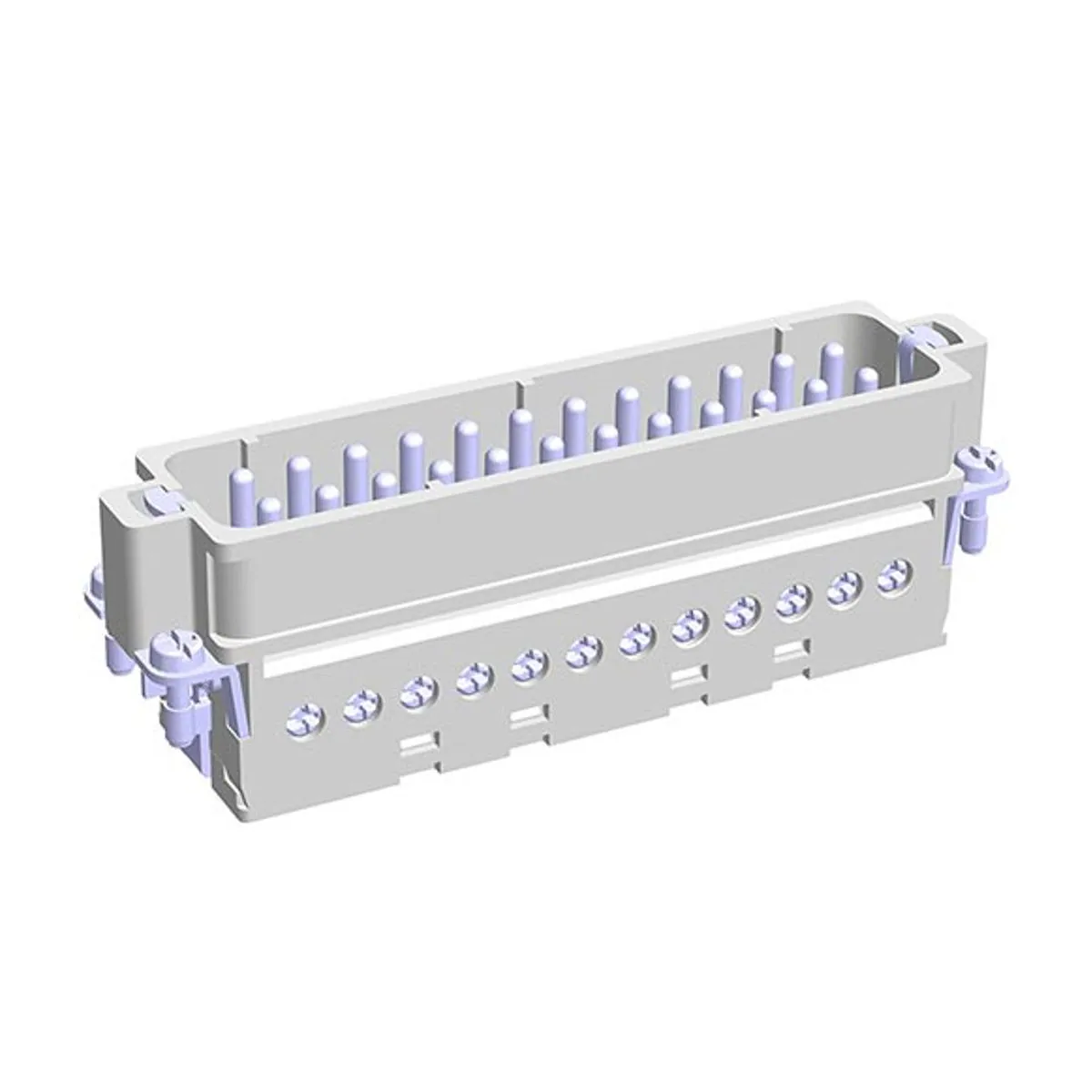

Mete Enerji 29425 24x16A Slim Multi Plug Core-Mounted
- Brand: Mete Enerji
- SKU: 29425
- MPN: 29425
- Price: 367.15 TRY + VAT · incl. VAT 440.58 TRY
- Availability: Made to order
- Connector Inserts
- Mete Enerji Connector Inserts
- Selection guide: Connector Inserts Selection Guide: Technical Criteria and Engineering Practice
Mete Enerji 29425 24x16A Slim Multi-Pole Plug, Insert Mounting; 16 A rated current, 24P+E contact arrangement, screw connection and 0.75 ... Features a 2.5 mm² conductor cross-section. It is a product of the Mete Enerji METECON slim multi-contact series.
| Rated Current | 16 A |
|---|---|
| Number of Contacts | 24 |
| Operating Temperature | -40 ... +125 °C |
| RoHS | Compliant with exemption |
| Certifications | UL | cUL | TSE |
| Country of Origin | Turkey |
| Connection Type | Screw |
| Product Type | Fiş |
| Mating Cycles | ≥ 500 |
| Series | A Serisi |
| Conductor Cross-Section | 0.75–2.5 mm² |
| UL Rated Voltage | 600 V |
| Applicable Standards | IEC 61984 / UL 1977 |
| Pollution Degree | 6 |
| Stripping Length | 7.5 mm |
| Insert Colour | Grey - RAL 7044 |
| Flammability Class | V-0 |
| Compatible Housing Type | 24 A |
| Rated Impulse Voltage | 4 kV |
| Contact Configuration | 24P+E |
| Contact Material | Brass (Silver-plated) |
| Insert Material | PC |
| Cable Entry | Rear |
| Contact Resistance | ≤ 1 mΩ |
| AWG | 18-14 |
| Conductor-to-Conductor Voltage | 250 V |
| Tightening Torque | 0.5 Nm |
