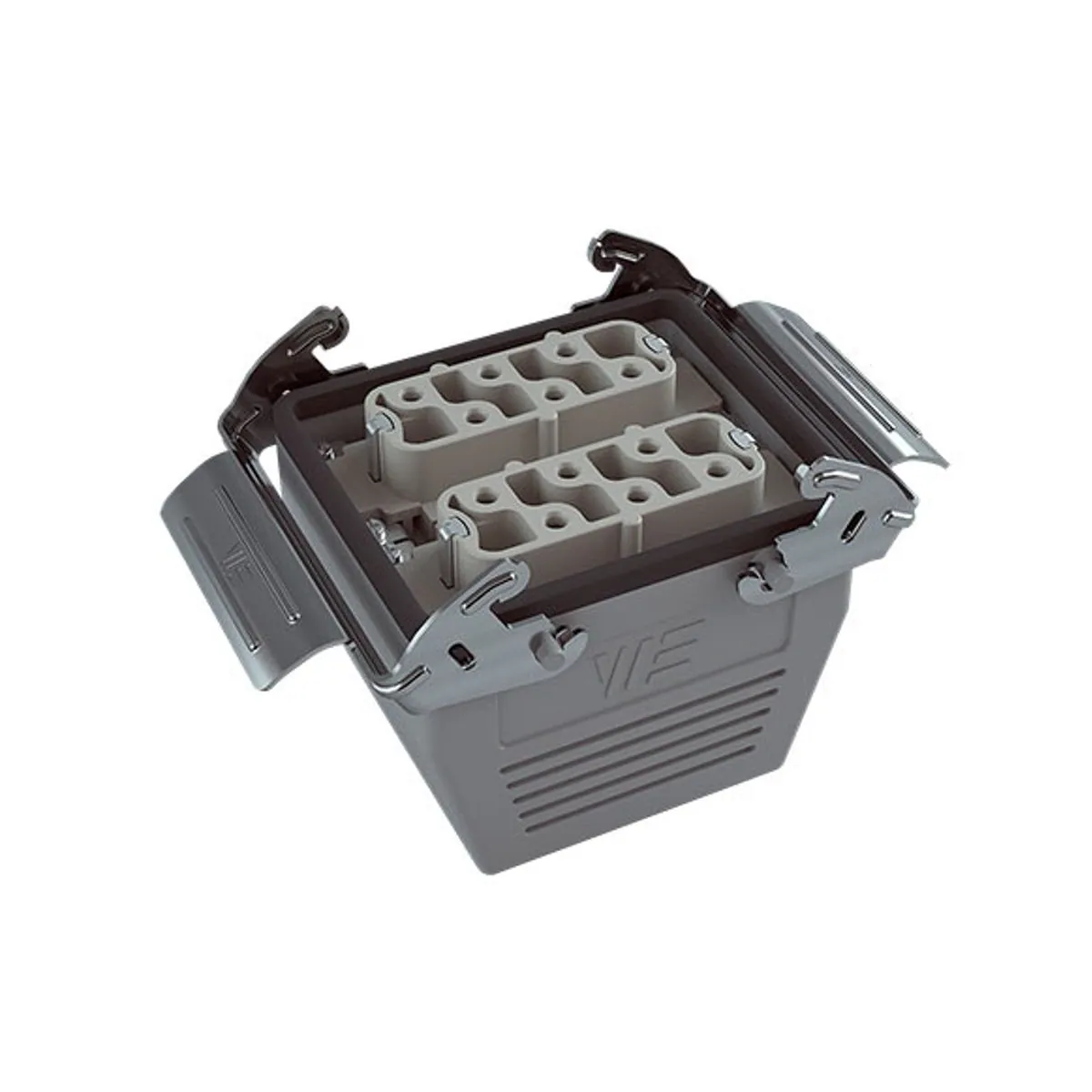

Mete Enerji 403156 12x35A Multi-Outlet Extension Socket Gasketed Latched Top Entry

Mete Enerji 403156 12x35A Multi-Outlet Extension Socket Gasketed Latched Top Entry

Mete Enerji 403156 12x35A Multi-Contact Extension Socket Sealed Latched Top Entry; features 35 A rated current, 6P+E contact arrangement, IP65 degree of protection, screw connection, aluminum housing, and PG 29 cable entry. It is a product of the Mete Enerji METECON multi-contact plug and socket series.

Rated Current35 A
Degree of ProtectionIP65
Number of Contacts12
Connection TypeScrew
Housing MaterialAluminum
Body TypeUzatma Gövde (Üst Giriş Mandallı Contalı)
Housing Size32B
Housing VersionShort body
Insert 1 Country of OriginTurkey
Insert 1 Compatible Housing Type16B
Insert 1 Connection TypeScrew connection
Housing RoHSCompliant with exemption
Insert 1 Contact MaterialBrass (Silver-plated)
Insert 1 Conductor Cross-Section1.5–6 mm²
Housing Locking TypeÇift mandallı
Insert 1 Applicable StandardsIEC 61984 / UL 1977
Insert 1 Product TypeSocket
Housing CertificationsTSE | CE
Insert 1 Rated Current35 A
Insert 1 ColourGrey - RAL 7044
Insert 1 Operating Temperature-40 ... +125 °C
Insert 1 Conductor-to-Conductor Voltage690 V
Insert 1 Pollution Degree3
Insert 1 Rated Impulse Voltage6 kV
Insert 1 Mating Cycles≥500
Insert 1 Cable EntryRear
Insert 1 CertificationsUL | cUL | TSE
Insert 1 SeriesHSB Serisi
Housing Country of OriginTurkey
Insert 1 Contact Configuration6P+E
Insert 1 MaterialPBT
Housing ColourGrey
Insert 1 UL Rated Voltage600 V
Insert 1 RoHSCompliant with exemption
Housing Operating Temperature-40 ... +125 °C
Insert 1 Tightening Torque1.2 Nm
Housing Protection RatingIP65
Insert 1 Stripping Length7 mm
Insert 1 Flammability ClassV-0
Insert 1 Contact Resistance≤1mΩ
