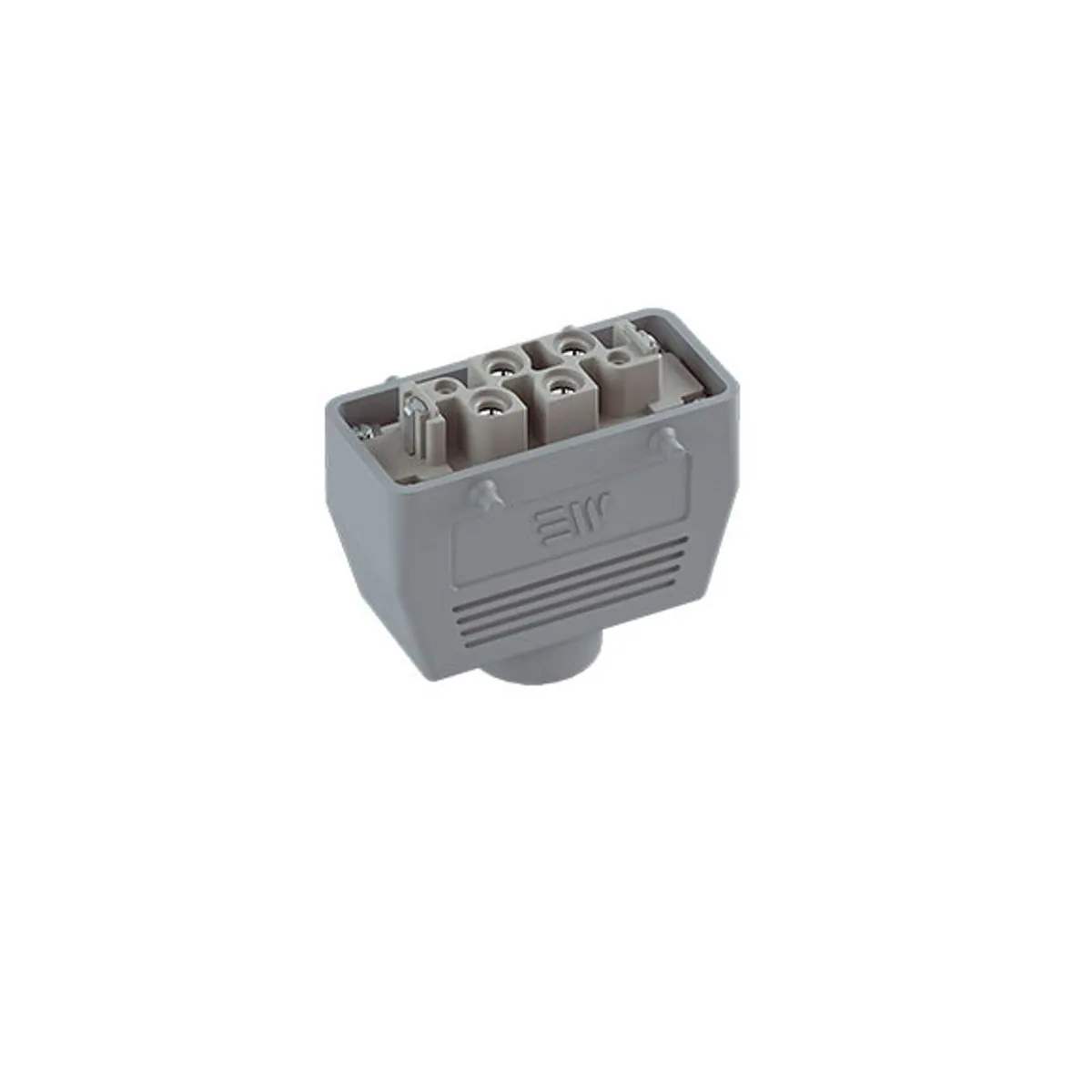

Mete Enerji 403429 4/2x80/16A Multi-Contact Extension Socket with Top Entry

Mete Enerji 403429 4/2x80/16A Multi-Contact Extension Socket with Top Entry

Mete Enerji 403429 4/2x80/16A Multi-Contact Extension Socket with Top Entry; features 80/16 A rated current, 4P+2P+E contact arrangement, IP65 degree of protection, screw connection, aluminum housing and PG 21 cable entry. This Mete Enerji product is part of the METECON multi-contact plug and socket series.

Rated Current80/16 A
Degree of ProtectionIP65
Number of Contacts4/2
Connection TypeScrew
Housing MaterialAluminum
Body TypeUzatma Gövde (Üst Giriş)
Housing Size16B
Housing VersionShort body
Insert 1 Country of OriginTurkey
Insert 1 Compatible Housing Type16B
Insert 1 Connection TypeScrew connection
Housing RoHSCompliant with exemption
Insert 1 Contact MaterialBrass (Silver-plated)
Insert 1 Conductor Cross-Section80 A : 1.5 ... 16 mm² | 16 A : 0.5 ... 2.5 mm²
Housing Locking TypeÇift mandallı
Insert 1 Applicable StandardsIEC 61984 / UL 1977
Insert 1 Product TypeSocket
Housing CertificationsTSE | CE
Insert 1 Rated Current80 A , Sinyal: 16 A
Insert 1 ColourGrey - RAL 7044
Insert 1 Operating Temperature-40 ... +125 °C
Insert 1 Conductor-to-Conductor Voltage830 V, Sinyal: 400 V
Insert 1 Pollution Degree3
Insert 1 Rated Impulse Voltage8kV Sinyal: 6kV
Insert 1 Mating Cycles≥500
Insert 1 Cable EntryRear
Insert 1 CertificationsUL | cUL | TSE
Insert 1 SeriesK Serisi
Housing Country of OriginTurkey
Insert 1 Contact Configuration4P+2P+E
Insert 1 MaterialPBT
Housing ColourGrey
Insert 1 UL Rated Voltage80 A : 600 V [UL] / 300 V [CSA] | 16 A : 600 V [UL] / 600 V [CSA]
Insert 1 RoHSCompliant with exemption
Housing Operating Temperature-40 ... +125 °C
Insert 1 Tightening Torque1.2 | 2 | 3 | 3 | 3 | 3
Housing Protection RatingIP65
Insert 1 Stripping Length14 mm, Signal: 7 mm
Insert 1 Flammability ClassV-0
Insert 1 Contact Resistance≤1mΩ
