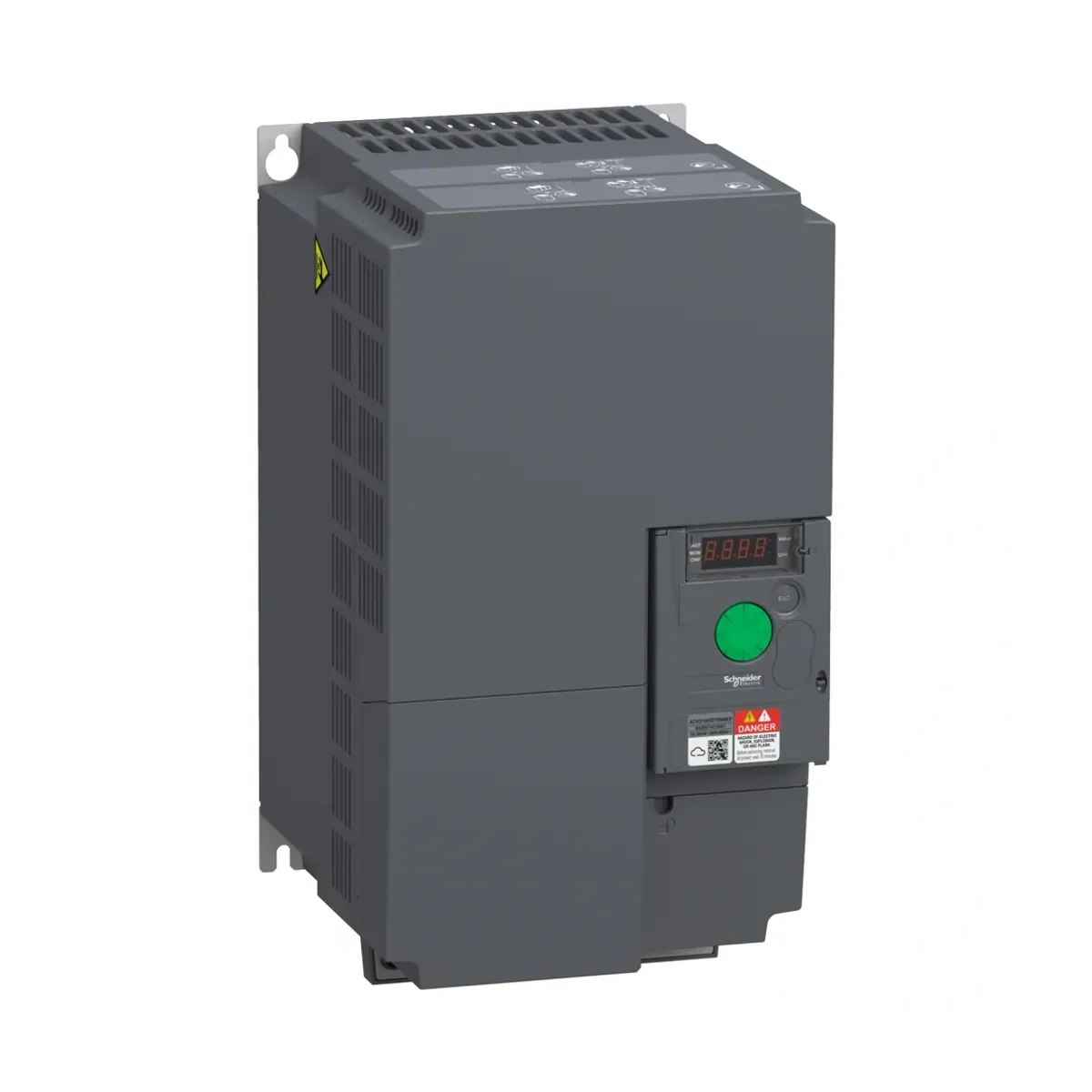

Schneider ATV-310HD18N4Ef 18.5 kW-400V 3Faz
- Brand: Schneider Electric
- SKU: ATV310HD18N4EF
- MPN: ATV310HD18N4EF
- Price: 40992.55 TRY + VAT · incl. VAT 49191.06 TRY
- Availability: In stock
- Variable Frequency Drives (Frequency Inverters)
- Schneider Electric Variable Frequency Drives (Frequency Inverters)
- Selection guide: What Is a Frequency Inverter? Drive Selection Guide
- Schneider Electric ATV310HD18N4EF Teknik Veri Föyü (PDF)
Schneider Electric ATV310HD18N4EF — ATV310 18.5 KW 400V 3PH with EMC Filter. Dimension Type: 330x180x191mm Output Current: 39A Power: 18.5 kW Motor Power: 18.5 kW Specified Operating Voltage: 400V Number of Phases: 3
| Number of Phases | 3-Phase |
|---|---|
| Output Current | 39 A |
| Specified Operating Voltage | 400 V |
| Power | 18.5 kW |
| Motor Power | 18.5 kW |
| Size Type | 330x180x191mm |
| Series | EASY ALTIVAR 310 |
| Product Type | Frekans Konvertörü |
| Short Device Name | ATV310 |
| Number of Mains Phases | 3-Phase |
| Rated Supply Voltage | 380...460 V - 15...10 % |
| Noise Level | 50 dB |
| EMC Filter | Dahili |
| Communication Port Protocol | MODBUS |
| Rated Switching Frequency | 4 kHz |
| Tightening Torque | 2.2…2.4 N.M |
| Number of Analog Inputs | 1 |
| Number of Digital Inputs | 4 |
| Number of Analog Outputs | 1 |
| Number of Digital Outputs | 2 |
| Height | 330 mm |
| Width | 180 mm |
| Depth | 191 mm |
| Product Weight | 6.7 kg |
| Supply Frequency | 50/60 Hz +/- 5 % |
| IP Rating | IP20 üst kısımda kör plaka olmadan; IP4X üst |
| Storage Temperature | -25…70 °C |
