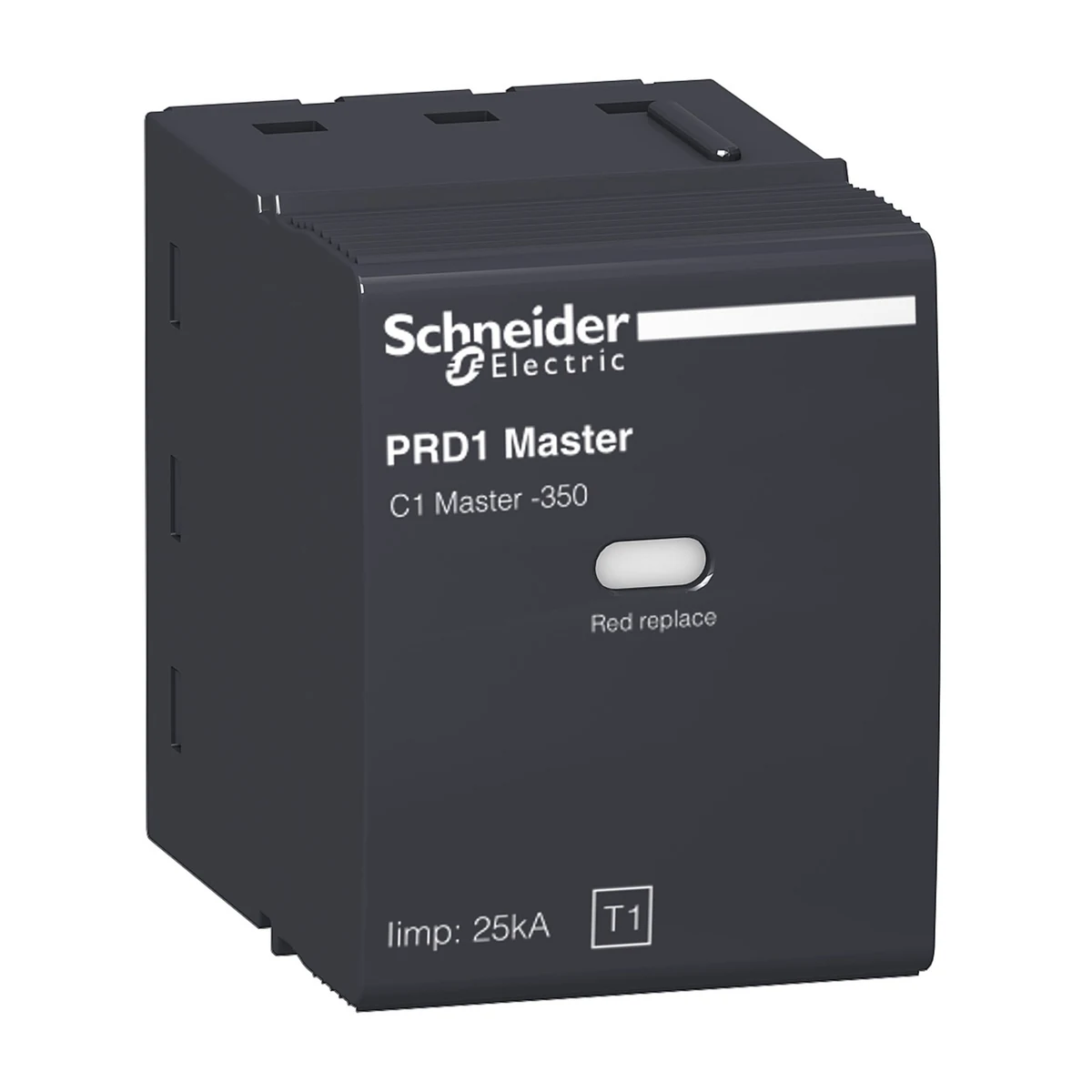

Schneider Electric 16314 Surge Arrester Cartridge C1 Master - 350
- Brand: Schneider Electric
- SKU: 16314
- MPN: 16314
- Price: 14177.92 TRY + VAT · incl. VAT 17013.50 TRY
- Availability: Made to order
- Low Voltage Surge Arresters
- Schneider Electric Low Voltage Surge Arresters
- Selection guide: What Is a Surge Arrester? Types and Selection Guide
- Schneider Electric 16314 Teknik Veri Föyü (PDF)
Schneider Electric 16314 Surge Arrester Cartridge C1 Master - 350.
| Series | Acti9 |
|---|---|
| Product Type | Kartuş |
| Compatible Series | Acti9 PRD1 Ustası |
| Surge Arrester Application | Elektrikli dağıtım ağı |
| Standards | IEC 61643-1; EN 61643-11 |
| Surge Arrester Class | Tip 1 |
| Surge Arrester Technology | Kıvılcım aralığı |
| Earthing System | TT; TN |
| Rated Operational Voltage (Ue) | 230 V AC 50 Hz |
| Nominal Discharge Current (In) | 25 kA |
| Maximum Continuous Operating Voltage (Uc) | 350 V |
| Local Signalling | Bayrak (beyaz/kırmızı) |
| Mounting Type | Takılabilir |
| Mounting Support | SPD modülü içine |
| Number of 9 mm Pitches | 4 |
| Height | 50 mm |
| Width | 36 mm |
| Depth | 57 mm |
| Color | Antrasit gri (RAL 7016) |
| Material | PBT (polibütilen tereftalat) |
| Response Time | < 100 ns |
| IP Rating | IP20 ön yüz |
| Relative Humidity | 5…90 % |
| Operating Altitude | 0–2000 m |
| Operating Ambient Temperature | -25…60 °C |
| Storage Temperature | -40…80 °C |
