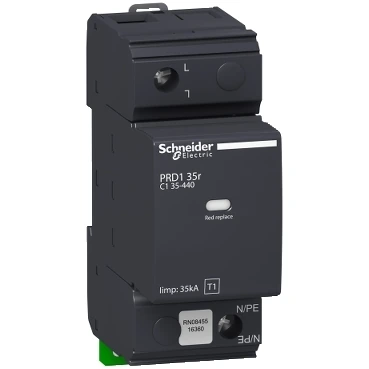

Schneider Electric 16649 Fixed and Cartridge type LV Surge Arrester, PRD1 35R Master 1P 440V
- Brand: Schneider Electric
- SKU: 16649
- MPN: 16649
- Price: 26243.06 TRY + VAT · incl. VAT 31491.67 TRY
- Availability: Made to order
- Low Voltage Surge Arresters
- Schneider Electric Low Voltage Surge Arresters
- Selection guide: What Is a Surge Arrester? Types and Selection Guide
- Schneider Electric 16649 Teknik Veri Föyü (PDF)
Schneider Electric 16649 Fixed and Cartridge type LV Surge Arrester, PRD1 35R Master 1P 440V.
| Series | PRD1 |
|---|---|
| Product Type | Tak-çıkar kartuşlu kesinti durdurucu |
| Device Application | Distribution |
| Standards | EN 61643-11; IEC 61643-11 |
| Certifications | CE |
| Quality Labels | NF |
| Pole Arrangement | 1P |
| Remote Signaling | Available |
| Signalling Contact Arrangement | 1 SD (1 K/A) |
| Surge Arrester Application | Elektrikli dağıtım ağı |
| Earthing System | IT; TN-C |
| Surge Arrester Class | Tip 1 + 2 |
| Surge Arrester Technology | Kıvılcım aralığı |
| Rated Operational Voltage (Ue) | 400/690 V AC |
| Nominal Discharge Current (In) | Ortak mod: 35 kA (L/PE); Diferansiyel mod: 35 kA (L/N) |
| Maximum Discharge Current (Imax) | Diferansiyel mod: 50 kA L/N |
| Maximum Continuous Operating Voltage (Uc) | Ortak mod: 440 V L/PE; Diferansiyel mod: 440 V L/N |
| Temporary Overvoltage (Ut) | 580 V L/N 5 s dayanım; 800 V N/PE 7200 s dayanım; 1640 V L/N 0.2 s güvenli arıza modu |
| Short-Circuit Withstand Strength | 50 kA |
| Signalling Circuit Voltage | 1 A/250 V AC; 1 A/30 V DC |
| Mounting Method | Takılabilir (DIN rayı) |
| Number of 9 mm Pitches | 4 |
| Height | 99 mm |
| Width | 36 mm |
| Depth | 71 mm |
| Product Weight | 401 g |
| Color | Antrasit gri (RAL 7016) |
| Earth Leakage Current (Ipe) | 0.005 mA |
| Connection Terminals | Tünel tipi terminal (üst veya alt) 10…25 mm² esnek; Tünel tipi terminal (üst veya alt) 16…35 mm² sert |
| Tightening Torque | 4,5 N.m |
| IP Rating | IP20 |
| IK Impact Protection | IK05 (IEC 62262) |
| Relative Humidity | 5…95 % |
| Operating Altitude | 2000 m |
| Operating Ambient Temperature | -25…60 °C |
| Storage Temperature | -40…85 °C |
