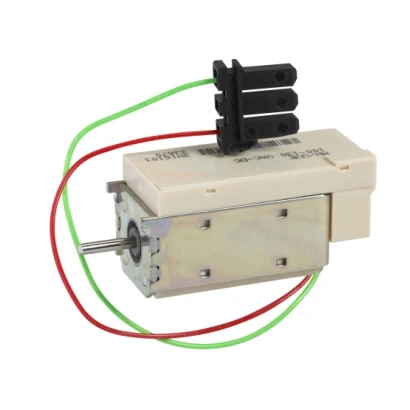

Schneider Electric 33662 MX shunt trip coil (fixed tip,200-250VAC/DC)
- Brand: Schneider Electric
- SKU: 33662
- MPN: 33662
- Price: 7289.12 TRY + VAT · incl. VAT 8746.94 TRY
- Availability: Made to order
- Shunt Trip Coils
- Schneider Electric Shunt Trip Coils
- Selection guide: Shunt Trip Coils Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric 33662 Teknik Veri Föyü (PDF)
Schneider Electric 33662 MX shunt trip coil (fixed tip,200-250VAC/DC). Technical specifications of this model: Coil Voltage: 200-250VAC/DC
| Coil Voltage | 200-250 VAC/ DC |
|---|---|
| Series | ComPacT yeni nesil |
| Product Type | Gerilim bobini |
| Device Application | Kontrol |
| Control Type | Standard |
| Rated Control Circuit Voltage (Uc) | 200…250 V AC 50/60 Hz; 200…250 V DC |
| Mounting Type | Fixed |
| Compatible Series | Compact ComPact NS630b...1600; Compact ComPact NS1600b...3200 |
| Operating Threshold Voltage | 0,7…1,1 x Un açma |
| Response Time | 50 ms +/- 10 % için Compact NS630b...1600; 50 ms +/- 10 % için Compact NS1600b...3200; 55 ms +/- 10 % için Masterpact NT; 70 ms +/- 10 % için Masterpact NW |
| Holding Power Consumption | 4.5 VA |
