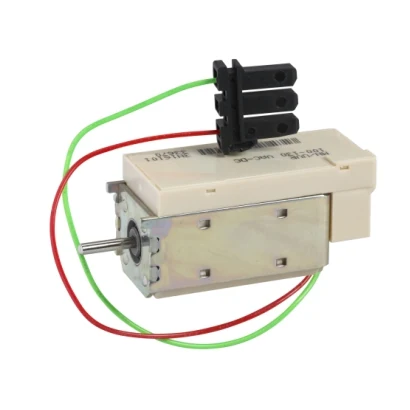

Schneider Electric 47362 MX - shunt trip coil, for NT-NW fixed type, 100-130 VAC/ DC
- Brand: Schneider Electric
- SKU: 47362
- MPN: 47362
- Price: 10063.55 TRY + VAT · incl. VAT 12076.26 TRY
- Availability: Made to order
- Shunt Trip Coils
- Schneider Electric Shunt Trip Coils
- Selection guide: Shunt Trip Coils Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric 47362 Teknik Veri Föyü (PDF)
Schneider Electric 47362 MX - shunt trip coil, for NT-NW fixed type, 100-130 VAC/ DC. Technical specifications of this model: Coil Voltage: 100-130 VAC/ DC
| Coil Voltage | 100-130 VAC/ DC |
|---|---|
| Series | MasterPacT |
| Product Type | Gerilim bobini |
| Device Application | Kontrol |
| Control Type | Standard |
| Rated Control Circuit Voltage (Uc) | 100…130 V AC 50/60 Hz; 100…130 V DC |
| Mounting Type | Fixed |
| Compatible Series | Masterpact Masterpact NT; Masterpact Masterpact NW; Masterpact MasterPact NW DC |
| Operating Threshold Voltage | 0,7…1,1 x Un açma |
| Response Time | 50 ms +/- 10 % için Masterpact NT; 50 ms +/- 10 % için Masterpact NW |
| Holding Power Consumption | 4.5 VA |
