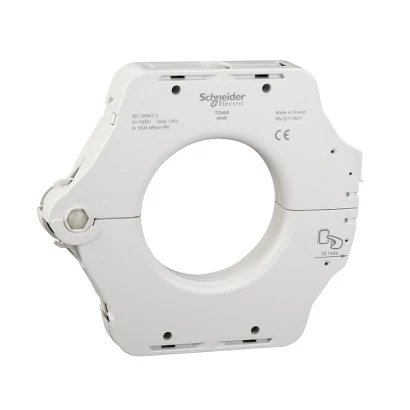

Schneider Electric 50420 SPLIT TOROID TOA DIA. 80 mm
- Brand: Schneider Electric
- SKU: 50420
- MPN: 50420
- Price: 52263.72 TRY + VAT · incl. VAT 62716.46 TRY
- Availability: Made to order
- Toroidal Current Transformers
- Selection guide: Toroidal Current Transformers Selection Guide: Technical Criteria & Application Standards
- Schneider Electric 50420 Teknik Veri Föyü (PDF)
Schneider Electric 50420 SPLIT-CORE TOROID TOA DIA. 80 mm.
| Series | VigiPacT |
|---|---|
| Product Type | Toprak kaçağı akım sensörü |
| Device Application | Ekipman izleme ve kontrolü |
| Current Sensor Type | OA-tipi parçalı toroid |
| Rated Operational Current (Ie) | 160 A |
| Mains Frequency | 50/60 Hz; 400 Hz |
| Rated Short-Circuit Withstand Current (Ik) | 50 kA için 0,5 sn |
| Residual Short-Circuit Withstand Current | 50 kA / 0,5 sn (IEC 60947-2) |
| Rated Insulation Voltage (Ui) | 1000 V |
| Overvoltage category | IV |
| Rated Lightning Impulse Withstand Voltage (Up) | 12 kV |
| Mounting Method | Sabit (kablolar); Sabit (düz devre kartı); Sabit (profilli metal levha); Sabit (slotlu devre kartı) |
| Connection Terminals | Vidalı bağlantı 0,22…2,5 mm² |
| Diameter | Dahili: 80 mm |
| Product Weight | 0.9 kg |
| Height | 156 mm |
| Width | 177 mm |
| Depth | 28 mm |
| IP Rating | Gövde: IP40; Konnektörler: IP20 |
| Pollution Degree | Seviye 3 (IEC 60664-1) |
| Operating Ambient Temperature | -35…70 °C |
| Storage Temperature | -55…85 °C |
| Standards | IEC60947-2 |
| Certifications | CE |
