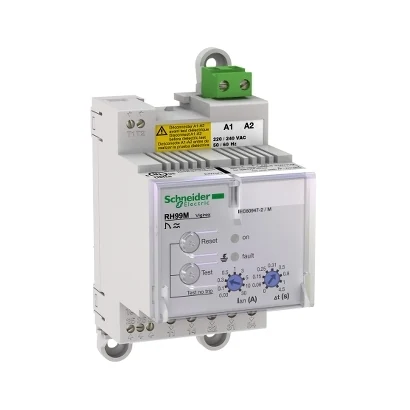

Schneider Electric 56173 RH99M 220/240 V AC 50/60/400 Hz Manual Fault Reset Earth Leakage Relay
- Brand: Schneider Electric
- SKU: 56173
- MPN: 56173
- Price: 24408.27 TRY + VAT · incl. VAT 29289.92 TRY
- Availability: Made to order
- Residual Current Circuit Breakers (RCCB)
- Schneider Electric Residual Current Circuit Breakers (RCCB)
- Selection guide: Residual Current Devices Selection Guide
- Schneider Electric 56173 Teknik Veri Föyü (PDF)
Schneider Electric 56173 RH99M 220/240 V AC 50/60/400 Hz Manual Fault Reset Earth Leakage Relay. Technical specifications of this model: Frequency: 50/60/400 Hz
| Frequency | 50/60/400 Hz |
|---|---|
| Series | VigiPacT |
| Product Type | Rezidüel akım koruma rölesi |
| Relay Application | Koruma rölesi |
| Mounting Support | DIN rayı |
| Residual Current Protection Class | A tipi |
| Adjustment Type | Seçici |
| Residual Current Sensitivity Adjustment Type | Ayarlanabilir 9 ayar |
| Compatible Current Sensors | VigiPacT TOA toprak kaçağı akım sensörü; VigiPacT A toprak kaçağı akım sensörü; VigiPacT L toprak kaçağı akım sensörü |
| Conventional Enclosed Thermal Current (Ithe) | 8 A |
| Minimum Load | 10 mA @ 12 V |
| Rated Control Supply Voltage (Us) | 220…240 V AC 50/60 Hz % 55…110 |
| Power Consumption | 4 VA |
| Earthing System | TN-S; TT; IT |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Reset Type | Manuel sıfırlama |
| Test Function | Uzaktan test; Yerel |
| Measurement Type | Toprak hatası akım dahili ölçümü, aralik: % 80…100 |
| Setting Tamper Protection | Mühürlenebilir kapakla korunur |
| Tightening Torque | Yardımcı güç besleme: 0,6 N.m üst; Hata: 0,6 N.m alt; Röle testi ve hata sıfırlama: 0,25 N.m alt; Sensör: 0,25 N.m üst; Gerilim varlığı: 0,6 N.m alt |
| Number of 9 mm Pitches | 6 |
| Standards | EN/IEC 60947-2 Annex M; EN/IEC 60755; UL 1053; CAN/CSA C22.2 No. 144 |
| Width | 54 mm |
| Height | 81 mm |
| Depth | 74 mm |
| Product Weight | 0.3 kg |
| IP Rating | IP40 ön yüzde: (EN/IEC 60529); IP30 yan parçalarda: (EN/IEC 60529); IP20 bağlantı terminallerinde: (EN/IEC 60529) |
| IK Impact Protection | IK07 (EN 50102) |
| Mechanical Durability | Yangına dayanıklılık (IEC 60695-2-1); IK koruma 2 joules: IK07 (EN 50102); Titreşimler 13,2…100 Hz: 0,7 g; Titreşimler 2…13,2 Hz: +/- 1 mm |
| Overvoltage category | IV |
| Electric Shock Protection Class | Class II |
| Relative Humidity | 95 % @ 55 °C |
| Pollution Degree | 3 (IEC 60664-1) |
| Operating Ambient Temperature | -35…70 °C |
| Storage Temperature | -55…85 °C |
