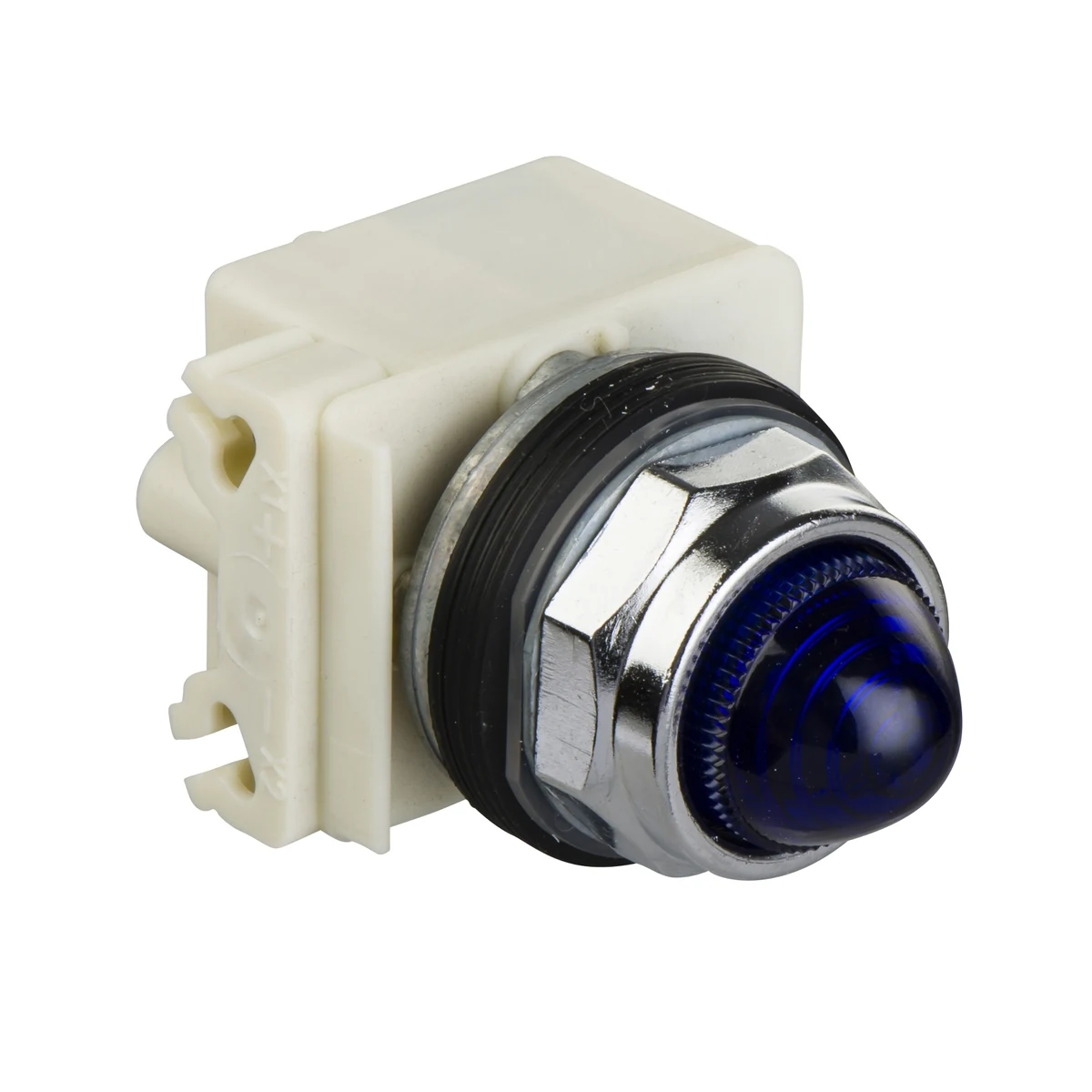

Schneider Electric 9001KP7L9 30 mm Pilot Light
- Brand: Schneider Electric
- SKU: 9001KP7L9
- MPN: 9001KP7L9
- Price: 4336.78 TRY + VAT · incl. VAT 5204.14 TRY
- Availability: Made to order
- Pilot Lights
- Schneider Electric Pilot Lights
- Selection guide: Pilot Light Selection Guide
- Schneider Electric 9001KP7L9 Teknik Veri Föyü (PDF)
Schneider Electric 9001KP7L9 30 mm Pilot Light.
| Series | Harmony 9001K |
|---|---|
| Product Type | Pilot ışığı |
| Bezel Material | Metal |
| Mounting Diameter | 30 mm |
| Signalling Head Shape | Round |
| Lens Type | Kubbeli plastik |
| Head / Lens Colour | Blue |
| Light Source | akkor |
| Lamp Holder Type | BA 9 s |
| Connection Terminals | Vida kelepçesi terminalleri, 1 x 0,22…2 x 1,5 mm² (IEC 60947-1) |
| Tightening Torque | 0,8 N.m (IEC 60947-1) |
| Screw Head Shape | Çapraz slotlu |
| Operating Position | Herhangi bir konum |
| Rated Insulation Voltage (Ui) | 250 V (kirlilik derecesi 2) (IEC 60947-1) |
| Rated Impulse Withstand Voltage (Uimp) | 2,5 kV (IEC 60947-1) |
| Short-Circuit Protection | 10 A kartuş sigortası (IEC 60947-5-1) |
| Conventional Free Air Thermal Current (Ith) | 10 A |
| Rated Control Supply Voltage (Us) | 220 ... 240 V AC |
| Product Weight | 0.21 kg |
| Device Presentation | Angled |
| Light Block Supply Type | Entegre transformatörle |
| Mains Frequency | 50–60 Hz |
| Dimension | 30 mm |
| Standards | CSA C22.2 No 14; EN/IEC 60947-5-4; JIS C 852; JIS C8201-5-1; EN/IEC 60947-5-1; EN/IEC 60947-1; UL 508; JIS C8201-1 |
| Certifications | UL 508; NEMA |
| Storage Temperature | -40…70 °C |
| Operating Ambient Temperature | -25…70 °C |
| Vibration Resistance | 7 gn (f= 2…500 Hz) (IEC 60068-2-6) |
| Shock Resistance | 50 gn (IEC 60068-2-27) |
| IP Rating | IP65/IP66 |
| NEMA protection rating | NEMA 1; NEMA 12; NEMA 13; NEMA 2; NEMA 3; NEMA 3R; NEMA 4; NEMA 6 |
