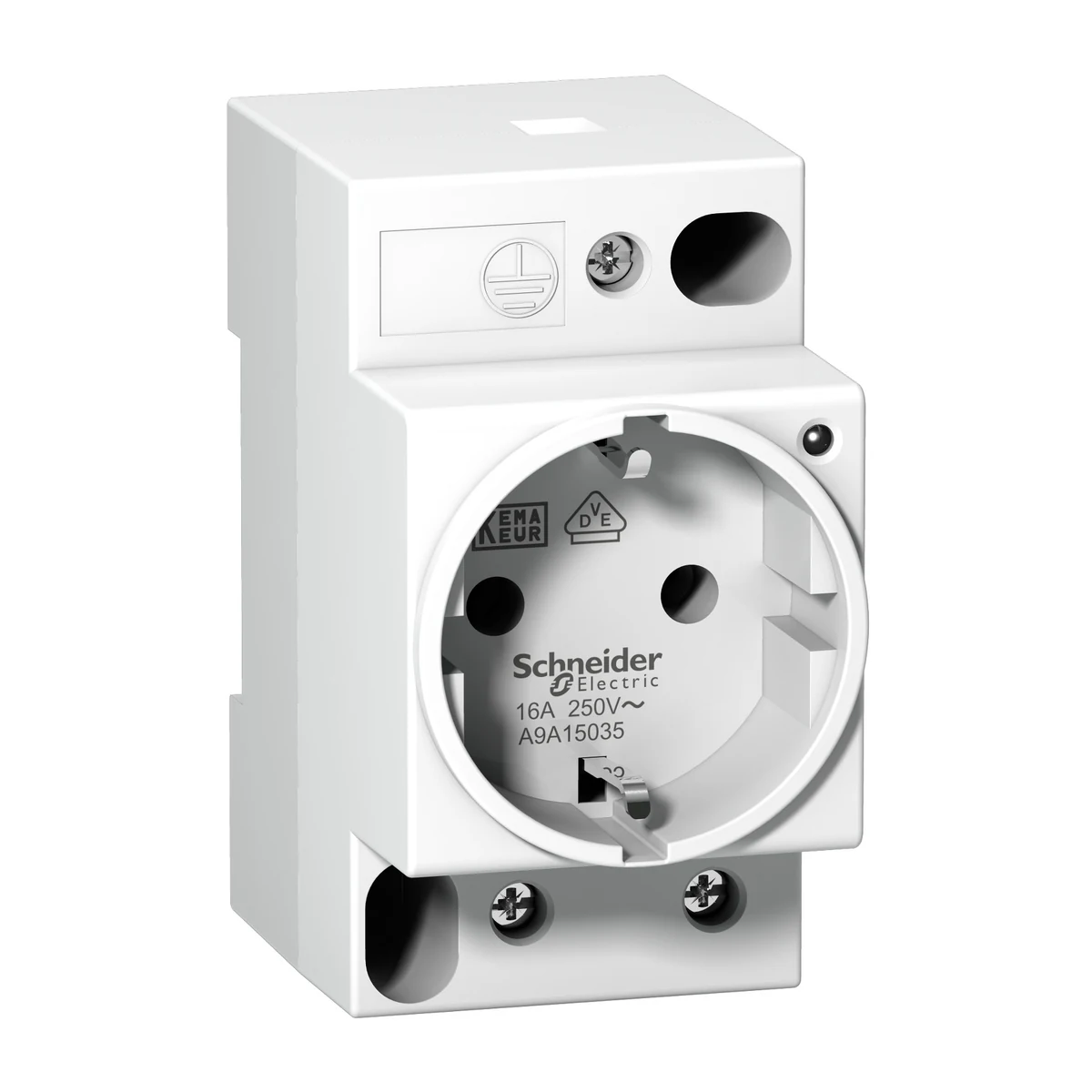

Schneider Electric A9A15035 DIN rail modular socket, illuminated grounded socket
- Brand: Schneider Electric
- SKU: A9A15035
- MPN: A9A15035
- Price: 813.81 TRY + VAT · incl. VAT 976.57 TRY
- Availability: Made to order
- Rail Type Sockets
- Selection guide: Rail Type Sockets Selection Guide: Technical Criteria & Application Standards
- Schneider Electric A9A15035 Teknik Veri Föyü (PDF)
Schneider Electric A9A15035 DIN rail modular socket, illuminated grounded socket.
| Series | Acti9 |
|---|---|
| Product Type | Modüler soket çıkışı |
| Pole Arrangement | 2P+E |
| Socket Standard | Alman |
| Rated Current (Ir) | 16 A |
| Rated Operational Voltage (Ue) | 250 V AC 50/60 Hz |
| Mounting Type | Fixed |
| Mounting Support | Simetrik DIN rayı |
| Number of 9 mm Pitches | 5 |
| Height | 84 mm |
| Width | 45 mm |
| Depth | 63 mm |
| Product Weight | 98 g |
| Color | White |
| Local Signalling | LED gerilim mevcudiyet gösterge ışığı hizmet ömrü: 100000 h |
| Connection Terminals | Tünel tipi terminal1 kablo(lar) 6 mm² esnek; Tünel tipi terminal1 kablo(lar) 10 mm² sert |
| Cable Stripping Length | 13 mm |
| Tightening Torque | 1,2 N.m |
| Standards | VDE 0620 |
| IP Rating | IP20 (IEC 60529); IP40 (modüler muhafaza) (IEC 60529) |
| IK Impact Protection | IK03 |
| Tropical Climate Resistance | 2 (IEC 60068-1) |
| Relative Humidity | 95 % @ 55 °C |
| Operating Ambient Temperature | -25…70 °C |
| Storage Temperature | -40…80 °C |
