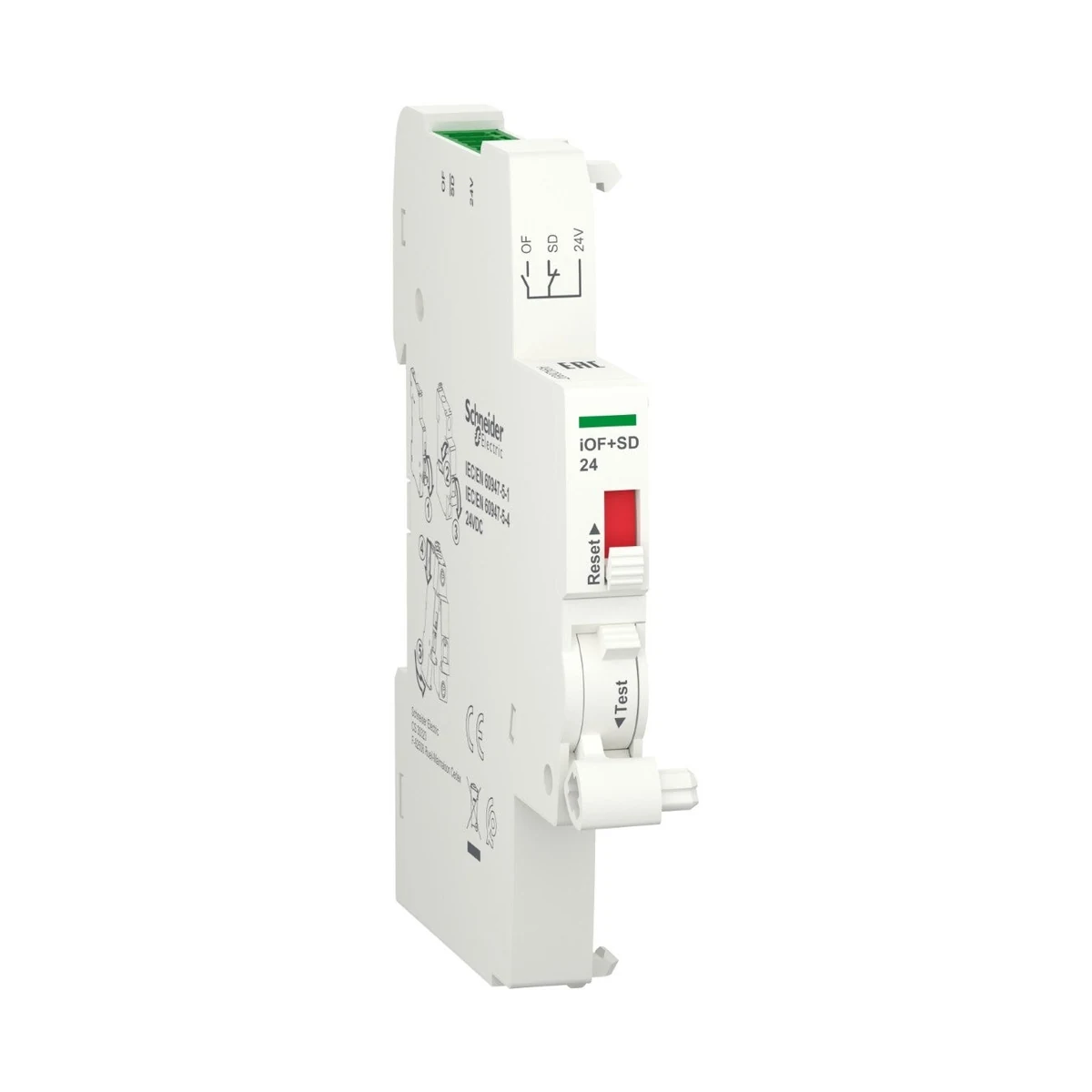

Schneider Electric A9A26897 Smartlink Accessories, iOF+SD24
- Brand: Schneider Electric
- SKU: A9A26897
- MPN: A9A26897
- Price: 841.17 TRY + VAT · incl. VAT 1009.40 TRY
- Availability: In stock
- Switch Accessories
- Schneider Electric Switch Accessories
- Selection guide: Switch and Breaker Accessories Selection Guide
- Schneider Electric A9A26897 Teknik Veri Föyü (PDF)
Schneider Electric A9A26897 Smartlink Accessories, iOF+SD24.
| Series | Acti9 |
|---|---|
| Product Type | AK ve hata kontağı |
| Device Application | Smartlink arayüzü için |
| Signalling Contact Arrangement | 1 NA + 1 NK |
| Rated Current (In) | DC-12 2…100 mA at 24 V, DC +/- %20 |
| Number of 9 mm Pitches | 1 |
| Standards | IEC 60947-5-4; IEC 60947-5-1 |
| Quality Labels | CE |
| Rated Insulation Voltage (Ui) | 500 V (IEC 60664-1) |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV (IEC 60664-1) |
| On-device Signalling | Mekanik gösterge |
| Mounting Type | Takılabilir |
| Mounting Support | DIN rayı |
| Comb Busbar Compatibility | Alt: EVET |
| Height | 88 mm |
| Width | 9 mm |
| Depth | 73.5 mm |
| Product Weight | 25 g |
| Color | White |
| Electrical Endurance | 20000 cycles (IEC 60947-5-4) |
| Connection Terminals | Yaylı terminal Ti24 (üst): 2 cable(s) 0,5…1,5 mm² - esnek; Yaylı terminal Ti24 (üst): 2 cable(s) 0,5…1,5 mm² - sert |
| Cable Stripping Length | 10 mm |
| Pollution Degree | 2 (IEC 60664-1) |
| Overvoltage category | III |
| Tropical Climate Resistance | 2 (IEC 60947-5-1) |
| Relative Humidity | 93 % @ 40 °C |
| Operating Ambient Temperature | -25…70 °C |
| Storage Temperature | -40…85 °C |
