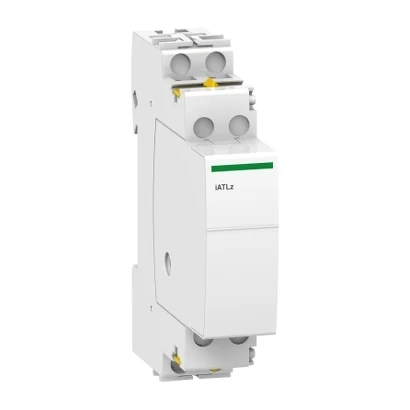

Schneider Electric A9C15413 Acti9 Control Products Auxiliary Equipment, iATLz 130-240VAC
- Brand: Schneider Electric
- SKU: A9C15413
- MPN: A9C15413
- Price: 786.46 TRY + VAT · incl. VAT 943.75 TRY
- Availability: Made to order
- Switch Accessories
- Schneider Electric Switch Accessories
- Selection guide: Switch and Breaker Accessories Selection Guide
- Schneider Electric A9C15413 Teknik Veri Föyü (PDF)
Schneider Electric A9C15413 Acti9 Control Products Auxiliary Equipment, iATLz 130-240VAC. Technical specifications of this model: Series: Acti9
| Series | Acti9 |
|---|---|
| Product Type | Empedans uyarlama yardımcısı |
| Rated Control Circuit Voltage (Uc) | 130…240 V AC 50/60 Hz |
| Rated Insulation Voltage (Ui) | 440 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Remote Control Type | Işıklı basmalı düğme 3 mA |
| Mounting Type | Sabit, TL'nin sol tarafında |
| Mounting Support | DIN rayı |
| Number of 9 mm Pitches | 2 |
| Height | 86 mm |
| Width | 18 mm |
| Depth | 71 mm |
| Color | White |
| Cable Stripping Length | 11 mm |
| Tightening Torque | 1 N.m |
| Compatible Series | Acti9 İTL; Acti9 iTLi; Acti9 İTLs; Acti9 İTLc |
| Compatible Products | ITL (32 A); ITL (16 A) |
| Overvoltage category | III |
| IP Rating | IP20 |
| Tropical Climate Resistance | 2 |
| Relative Humidity | 95 % @ 55 °C |
| Operating Ambient Temperature | -20…50 °C |
| Storage Temperature | -40…70 °C |
| Standards | EN/IEC 60669-2-2 |
