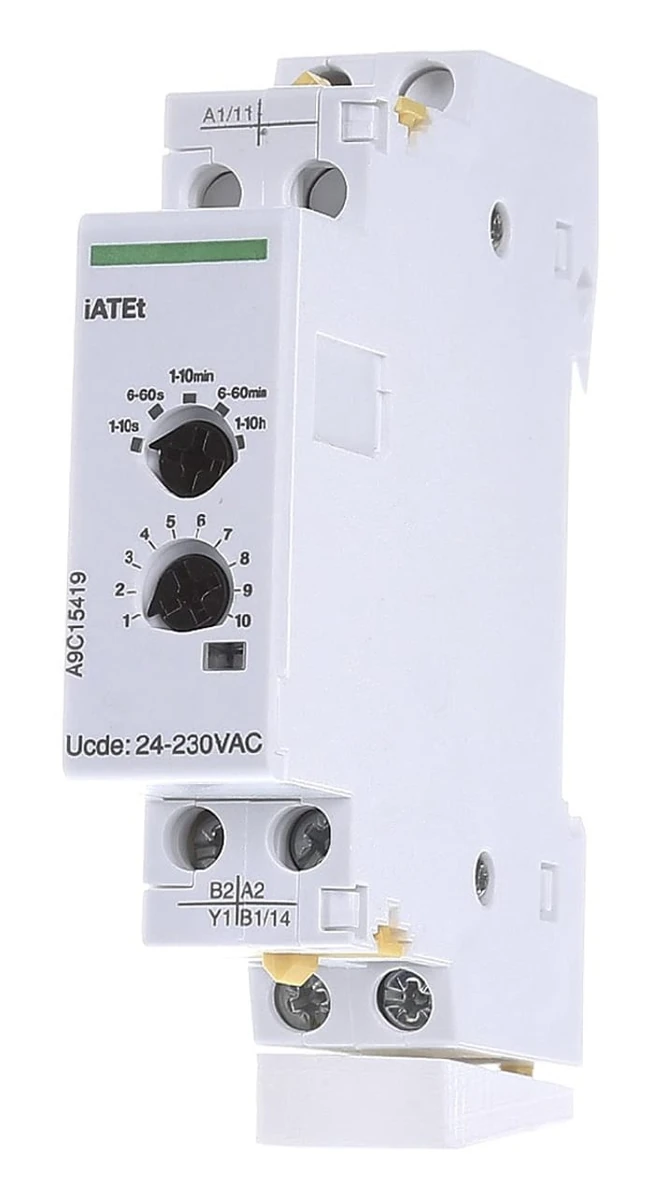

Schneider Electric A9C15419 Acti9 Control Products Auxiliary Equipment, iATEt 24-240VAC
- Brand: Schneider Electric
- SKU: A9C15419
- MPN: A9C15419
- Price: 3829.71 TRY + VAT · incl. VAT 4595.65 TRY
- Availability: Made to order
- Switch Accessories
- Schneider Electric Switch Accessories
- Selection guide: Switch and Breaker Accessories Selection Guide
- Schneider Electric A9C15419 Teknik Veri Föyü (PDF)
Schneider Electric A9C15419 Acti9 Control Products Auxiliary Equipment, iATEt 24-240VAC. Technical specifications of this model: Series: Acti9
| Series | Acti9 |
|---|---|
| Product Type | Zaman gecikme yardımcısı |
| Rated Control Circuit Voltage (Uc) | 24…110 V DC darbe; 24…240 V AC 50/60 Hz sürekli |
| Adjustment Type | Zaman gecikmesi yapılandırma |
| Time Delay Range | 2 s...10 dak; 2 s...10 sa; 6…60 s; 1…10 s; 6 s...1 sa |
| Hold-in Power Consumption (VA) | 5 VA |
| Mounting Type | Sabit, TL veya CT'nin sol tarafında |
| Mounting Support | DIN rayı |
| Number of 9 mm Pitches | 2 |
| Height | 81 mm |
| Width | 18 mm |
| Depth | 60 mm |
| Color | White |
| Overvoltage category | III |
| Rated Lightning Impulse Withstand Voltage (Up) | 4 kV |
| Rated Insulation Voltage (Ui) | 440 V |
| Standards | EN/IEC 60669-2-2 |
| Cable Stripping Length | 9 mm |
| Tightening Torque | 0.8 N.M |
| Compatible Series | Acti9 iCT; Acti9 İTL |
| IP Rating | IP20 |
| Operating Ambient Temperature | -20…50 °C |
| Storage Temperature | 40…80 °C |
