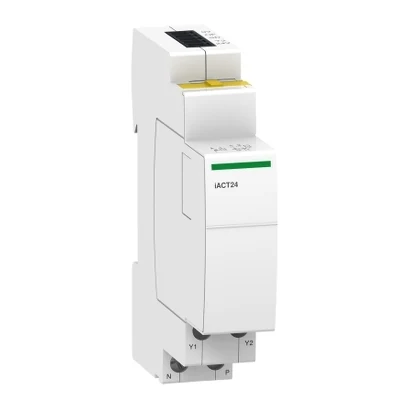

Schneider Electric A9C15924 Smartlink Accessories, iACT24 230VAC
- Brand: Schneider Electric
- SKU: A9C15924
- MPN: A9C15924
- Price: 9323.51 TRY + VAT · incl. VAT 11188.21 TRY
- Availability: Made to order
- Switch Accessories
- Schneider Electric Switch Accessories
- Selection guide: Switch and Breaker Accessories Selection Guide
- Schneider Electric A9C15924 Teknik Veri Föyü (PDF)
Schneider Electric A9C15924 Smartlink Accessories, iACT24 230VAC.
| Series | Acti9 |
|---|---|
| Product Type | Kontrol ve gösterge yardımcısı |
| Signalling Contact Arrangement | 1 NA |
| Signalling Circuit Voltage | 24 V DC: - 20…20 % 0,002…0,1 A |
| Rated Control Circuit Voltage (Uc) | 230 V AC 50/60 Hz sürekli >= 200 ms; 24 V DC alçalan uç; 24 V DC yükselen uç |
| Control Type | Uzaktan kumanda |
| Rated Control Supply Voltage (Us) | 230 V AC @ 50/60 Hz |
| Mounting Type | Sabit, CT'nin sol tarafında |
| Mounting Support | DIN rayı |
| Comb Busbar Compatibility | Alt: EVET; Üst: NA |
| Number of 9 mm Pitches | 2 |
| Height | 81 mm |
| Width | 18 mm |
| Depth | 68 mm |
| Color | White |
| Overvoltage category | III |
| Rated Lightning Impulse Withstand Voltage (Up) | 4 kV |
| Rated Insulation Voltage (Ui) | 440 V |
| Micro-Interruption Immunity | 10 ms |
| Standards | IEC 60947-1 ek S |
| Quality Labels | CE |
| Electrical Endurance | 250000 cycles (IEC 60947-5-1) |
| Cable Stripping Length | Kontrol devresi: 10 mm for alt connection; Yardımcı besleme: 10 mm for alt connection; Kontrol devresi: 10 mm for üst connection |
| Tightening Torque | Kontrol devresi: 1 N.m alt; Yardımcı besleme: 1 N.m alt |
| Compatible Products | ICT 230/240 V 50 Hz; PLC ile; ICT 220 V 50 Hz; Acti 9 Smartlink; ICT 220/240 V 50 Hz |
| IP Rating | IP20 (IEC 60529); IP40 (modüler muhafaza) (IEC 60529) |
| Pollution Degree | 3 (IEC 60439-1) |
| Tropical Climate Resistance | 2 (IEC 60947-5-1) |
| Relative Humidity | 93 % @ 40 °C (IEC 60068-2) |
| Operating Ambient Temperature | -25…60 °C |
| Storage Temperature | -40…80 °C |
